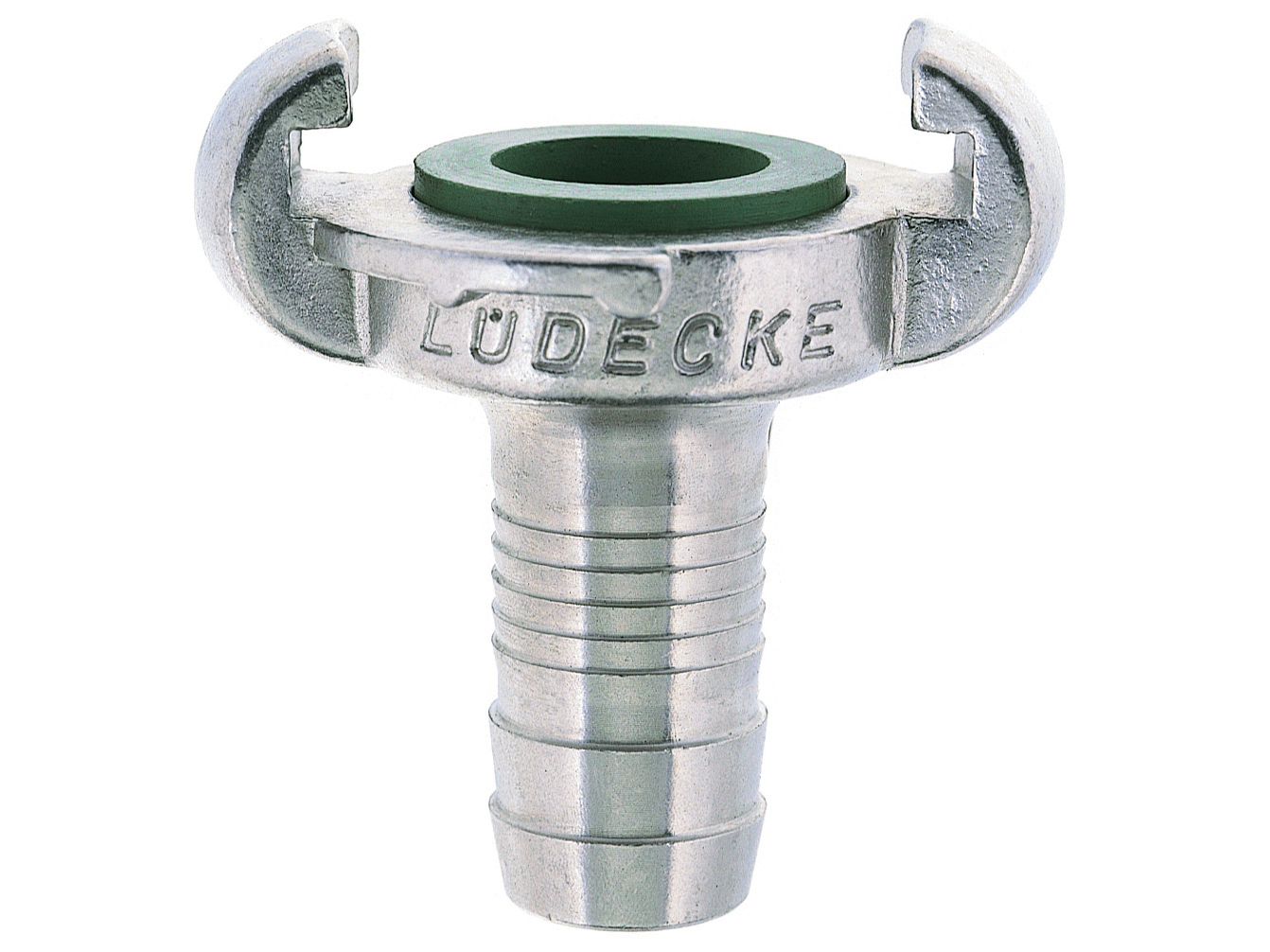

Klokopplingsslanginsats, rostfri, DIN 3489, typ EKT

Klokopplingsslanginsats, rostfri, DIN 3489, typ EKT

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Pressure max. Spigot distance Diameter hose inner
205G-1-SY 205G-1-SY - Klokoppling slanganslutning, syrafast, viton, DIN3489 16 bar 42 mm 25 mm
205G-1/2-SY 205G-1/2-SY - Klokoppling slanganslutning, syrafast, viton, DIN3489 16 bar 42 mm 13 mm
205G-3/4-SY 205G-3/4-SY - Klokoppling slanganslutning, syrafast, viton, DIN3489 16 bar 42 mm 19 mm
205G-3/8-SY 205G-3/8-SY - Klokoppling slanganslutning, syrafast, viton, DIN3489 16 bar 42 mm 10 mm
Brand Name
Ludecke
Length
65
Material
Rostfritt stål
Material quality
1.4404 / AISI316L
Pressure max.
16
Sealing material
FKM/FPM (Viton®)
Spigot distance
42
Standard DIN
DIN 3489
Temperature max.
+200
Temperature min.
-30
