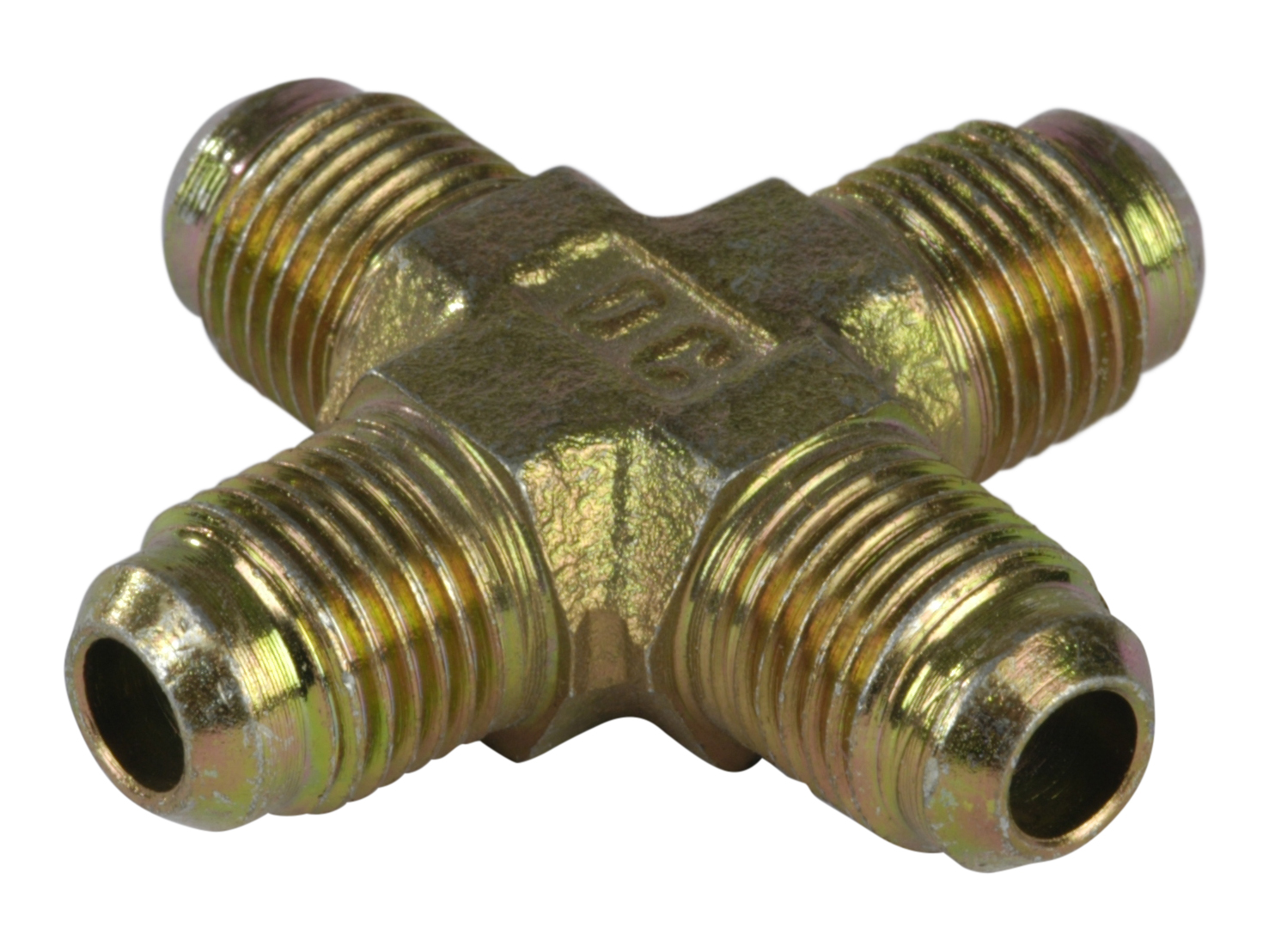

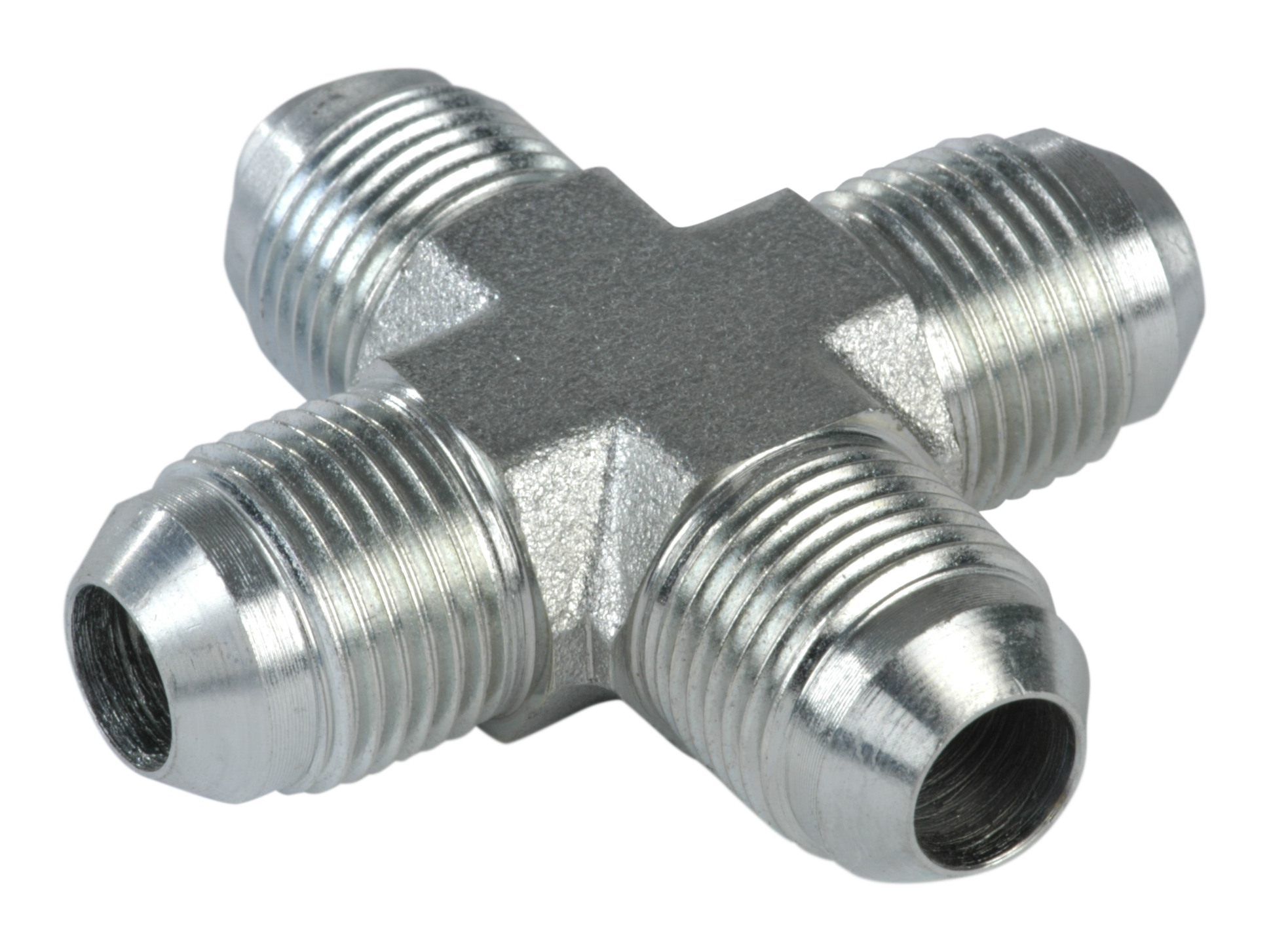

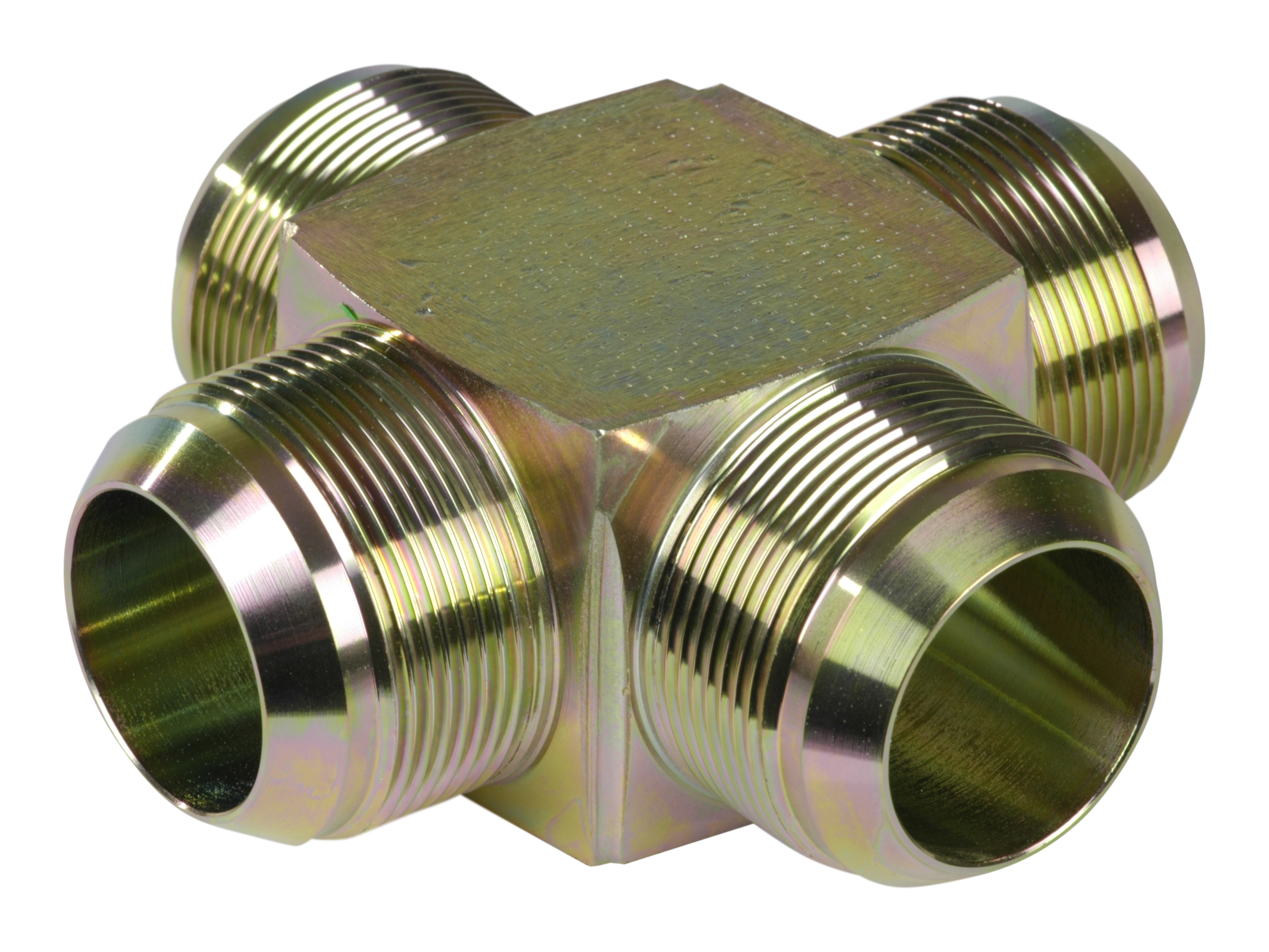

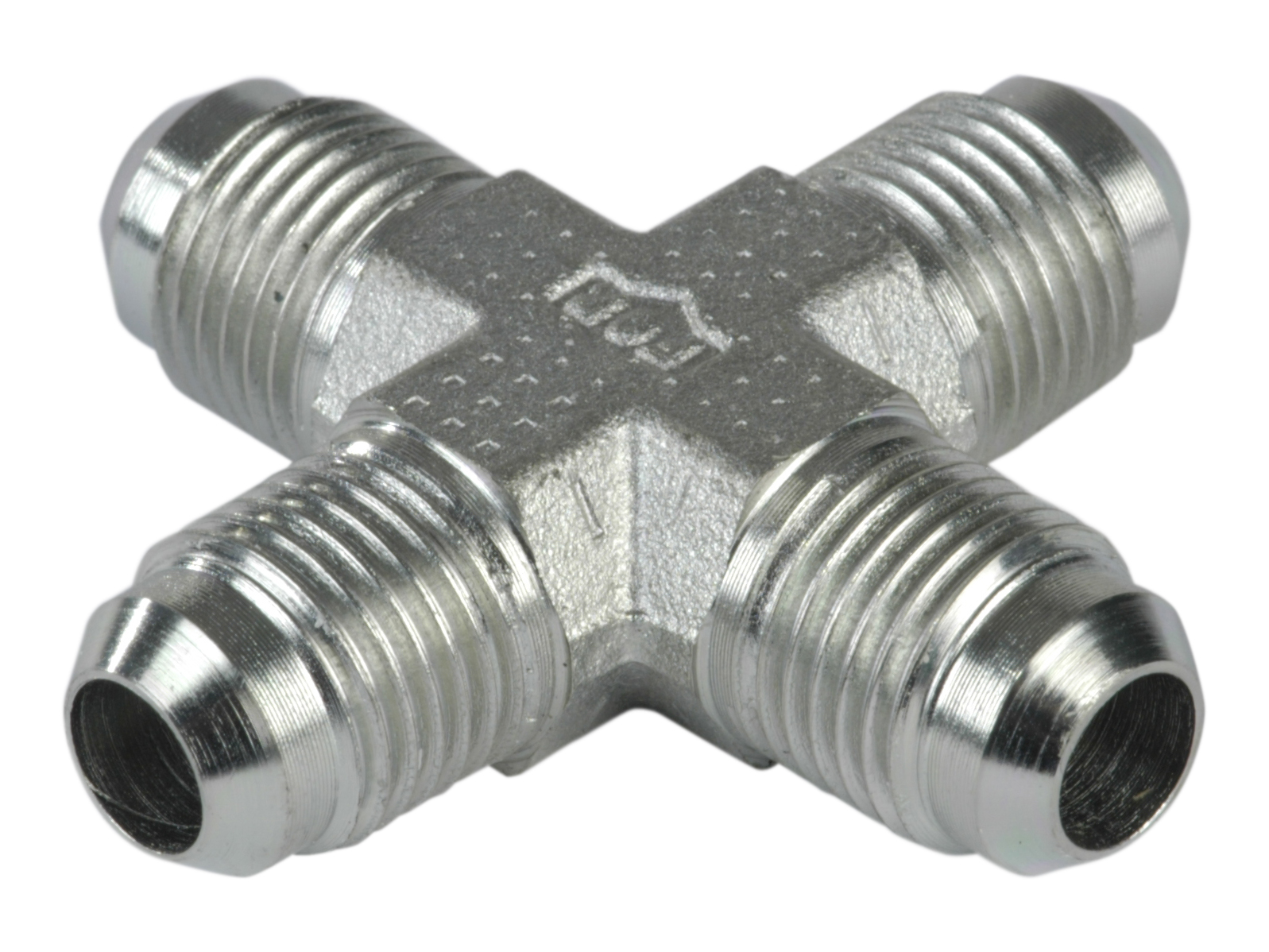

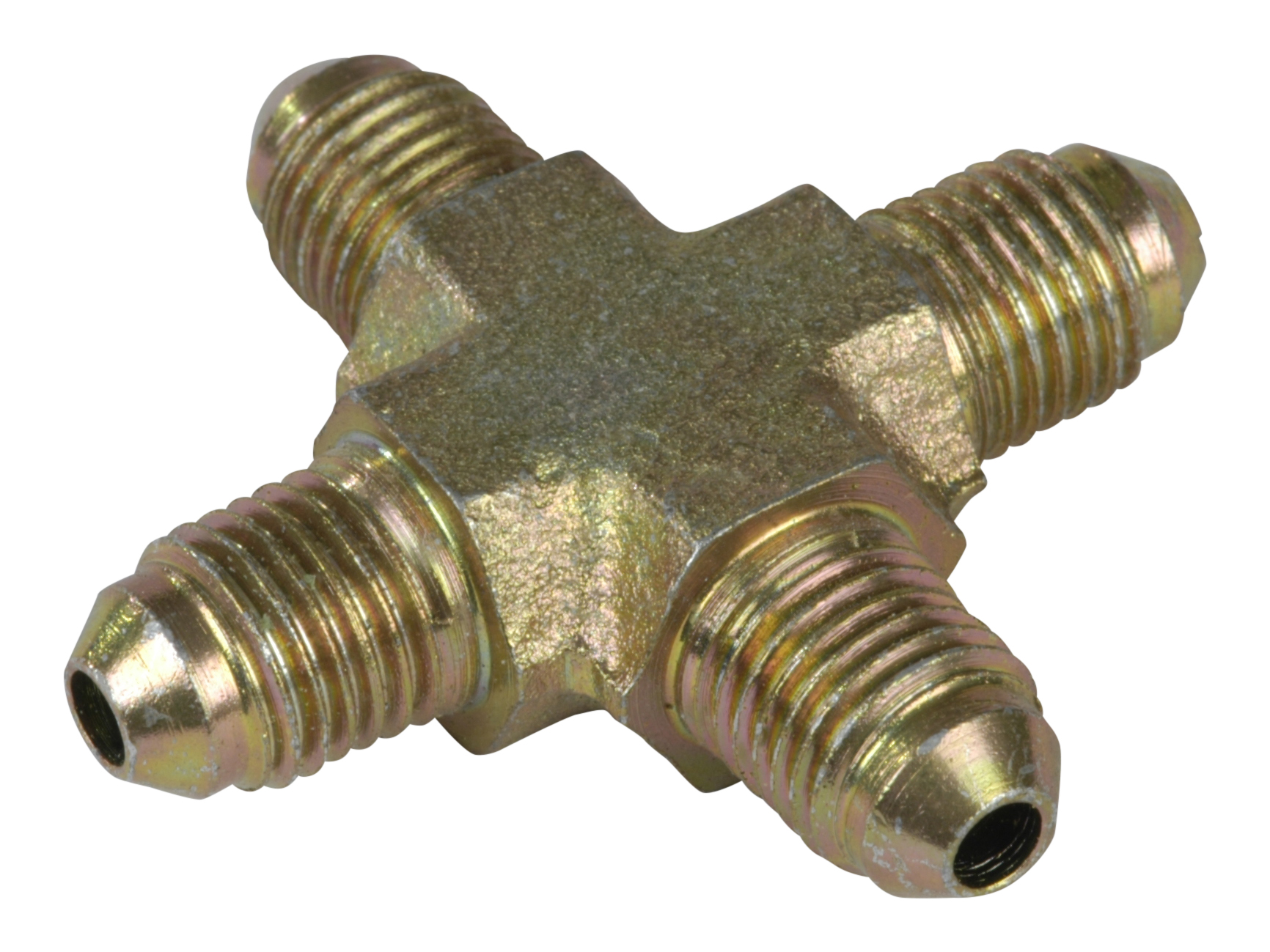

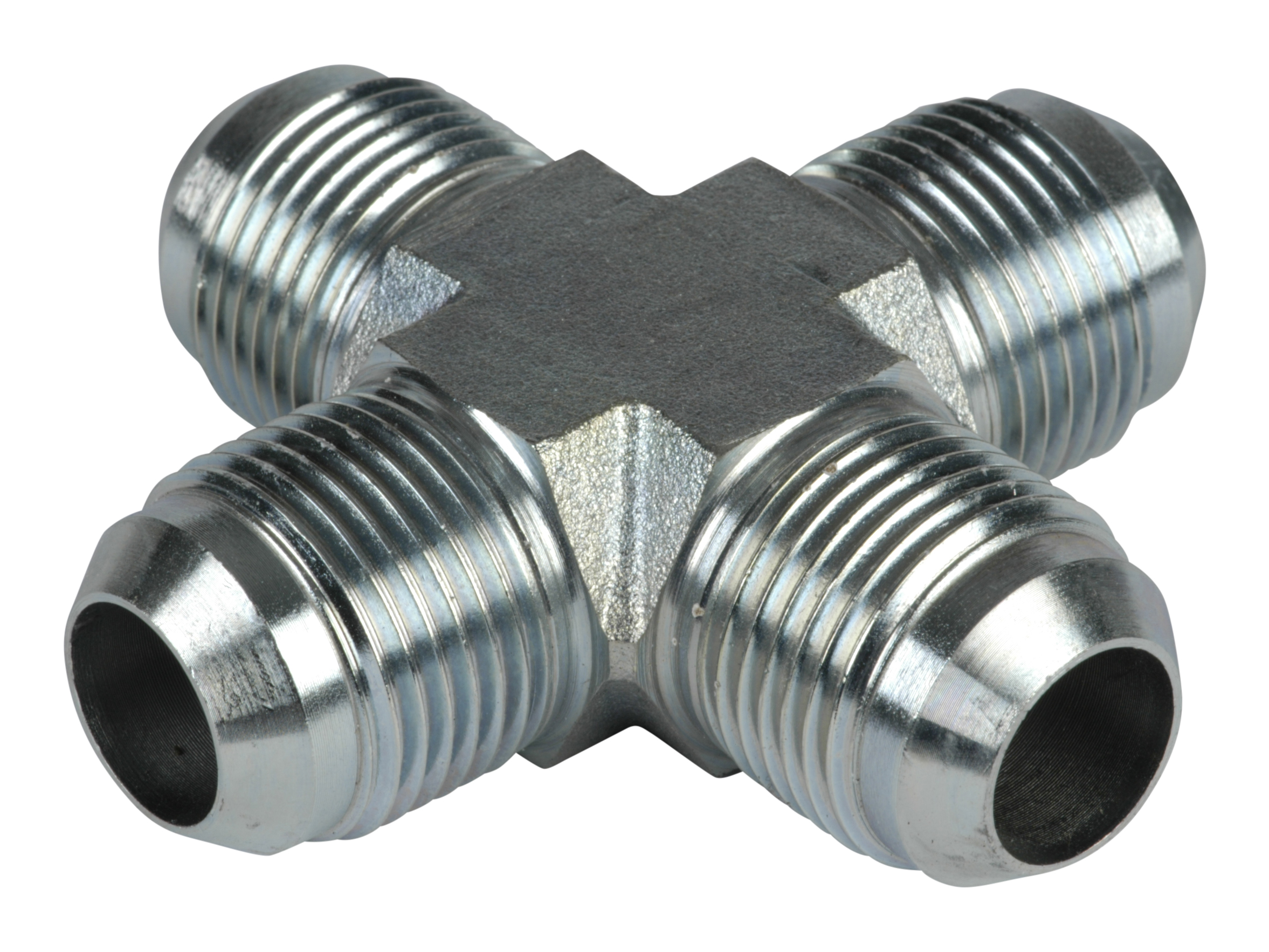

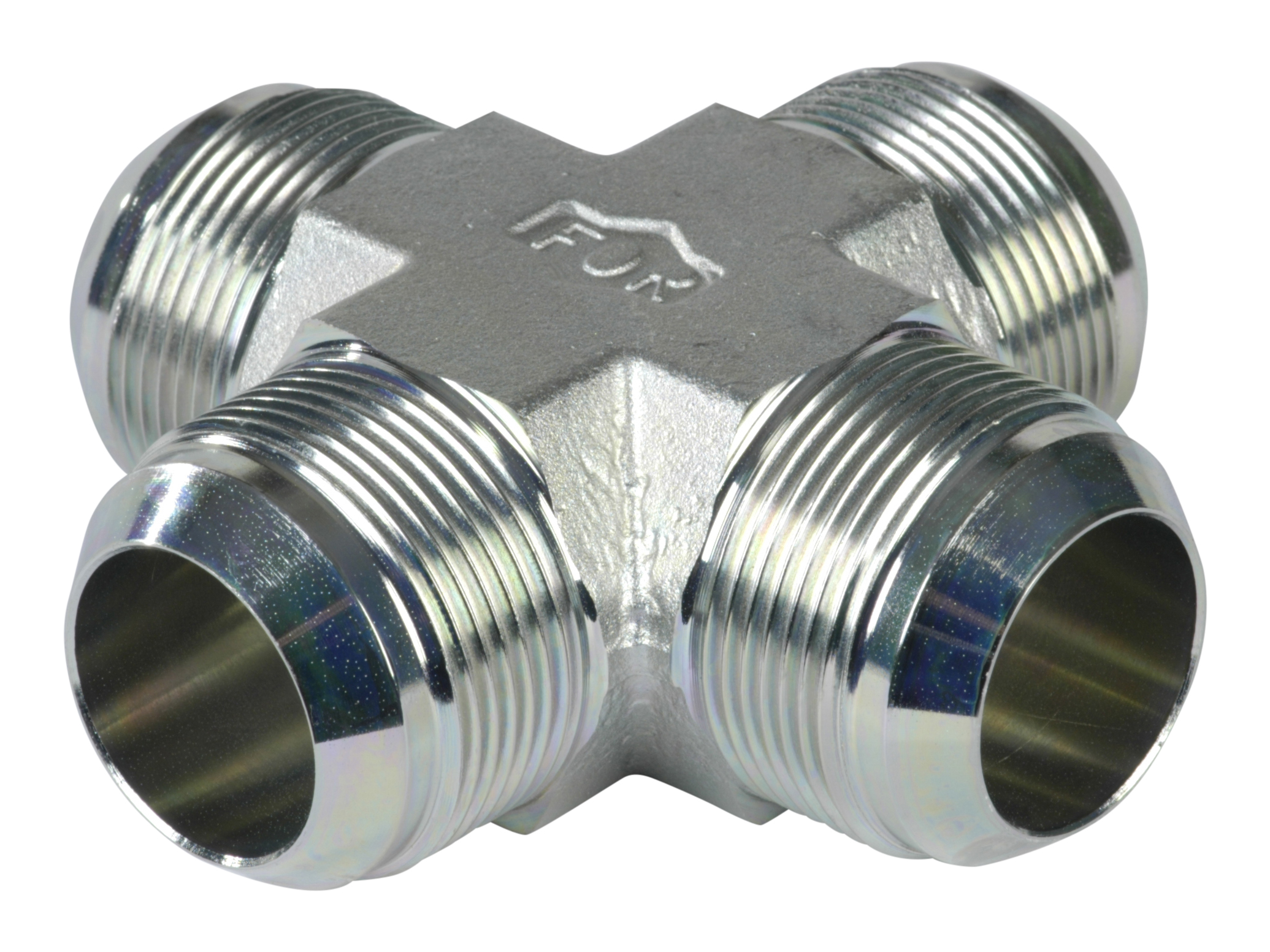

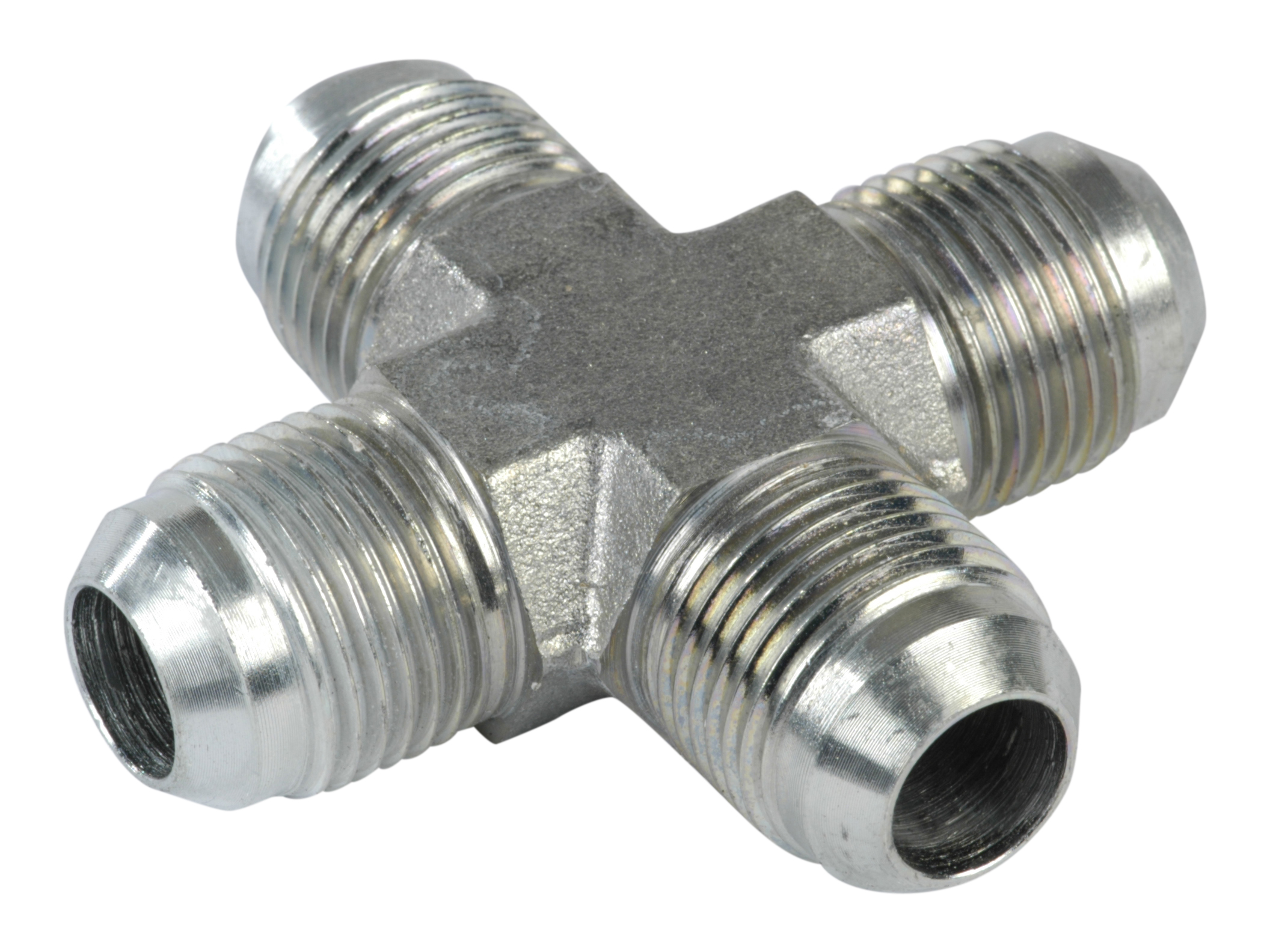

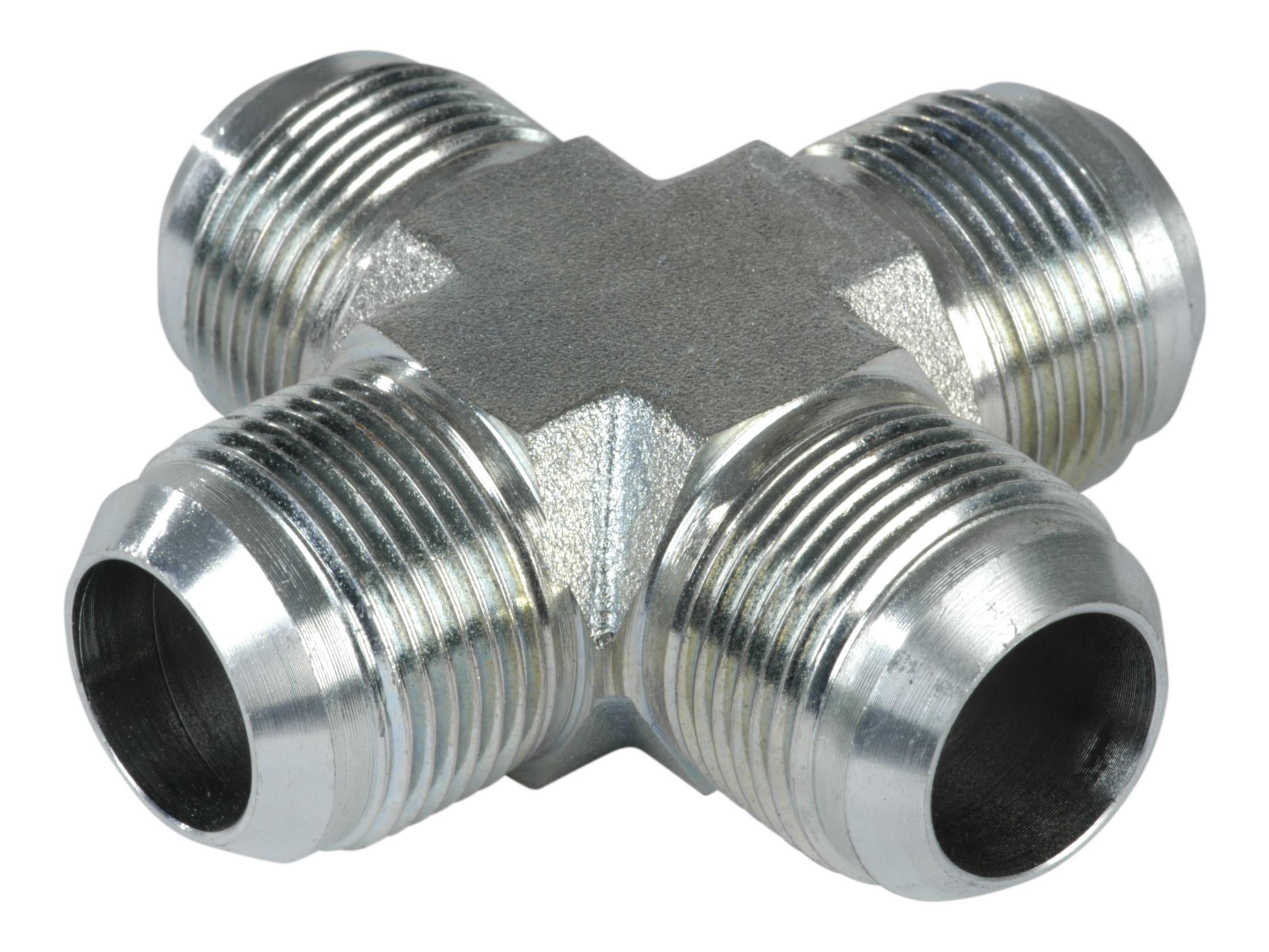

Cross adapter JIC male steel - KU / JK

Cross adapter JIC male steel - KU / JK

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Diameter pipe Thread outer Pressure max. Brand Name
JK-04 JK-04 - Adapter K, Utv-JIC 6 mm 7/16-20 JIC 450 bar FOR
JK-05 JK-05 - Adapter K, Utv-JIC 8 mm 1/2-20 JIC 416 bar FOR
JK-06 JK-06 - Adapter K, Utv-JIC 10 mm 9/16-18 JIC 350 bar FOR
JK-08 JK-08 - Adapter K, Utv-JIC 12 mm 3/4-16 JIC 350 bar FOR
JK-10 JK-10 - Adapter K, Utv-JIC 16 mm 7/8-14 JIC 350 bar FOR
JK-12 JK-12 - Adapter K, Utv-JIC 18 - 20 mm 1.1/16-12 JIC 300 bar FOR
JK-16 JK-16 - Adapter K, Utv-JIC 25 mm 1.5/16-12 JIC 290 bar FOR
JK-20 JK-20 - Adapter K, Utv-JIC 32 mm 1.5/8-12 JIC 240 bar FOR
JK-24 JK-24 - Adapter K, Utv-JIC 38 mm 1.7/8-12 JIC 250 bar FOR
Brand Name
FOR
Corrosion resistance
1400 hours salt spray DIN EN ISO 9227
Material
Stål
Surface treatment
El-förzinkad / vitkromaterad
