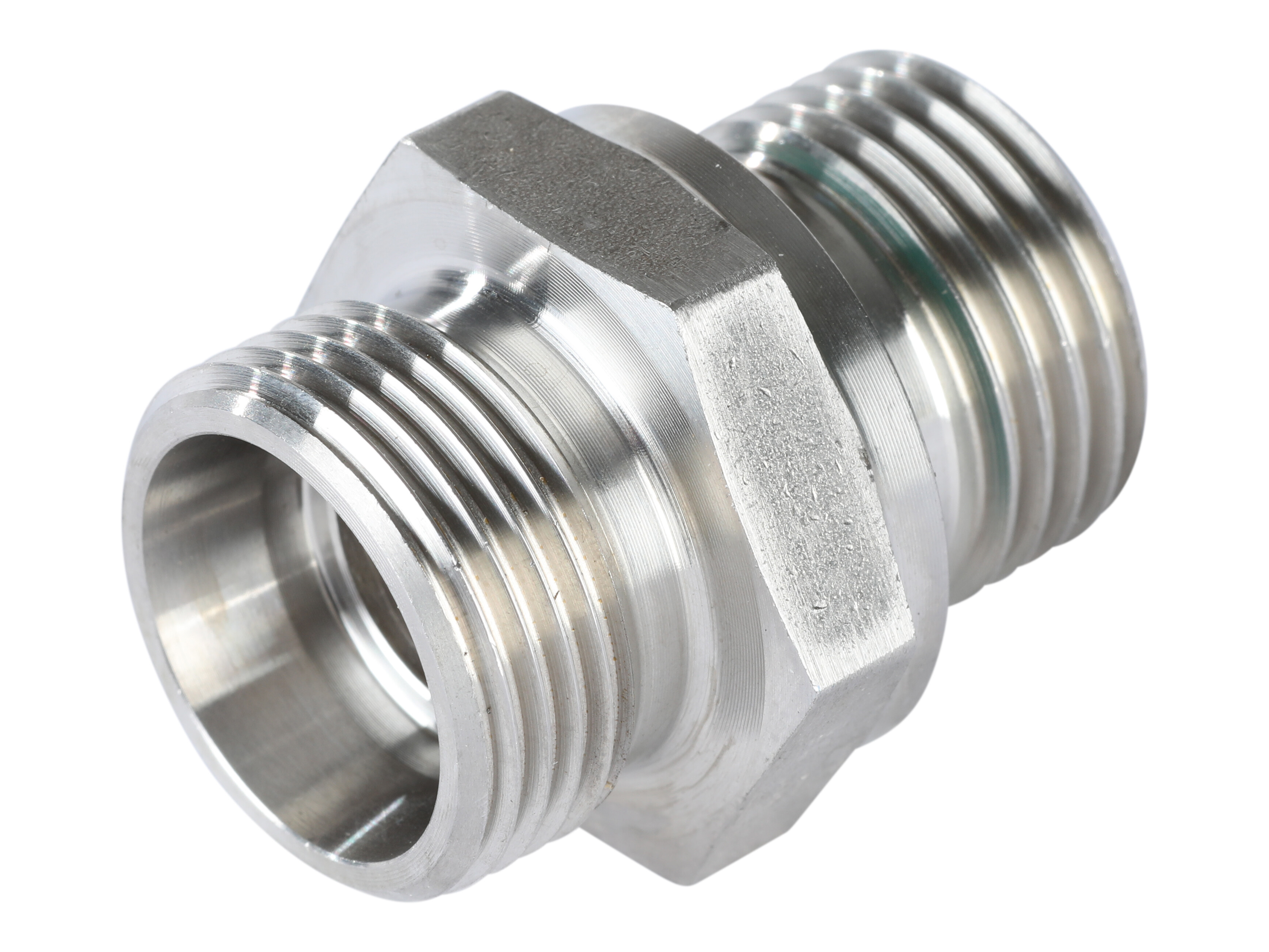

XGE28LRED-SY - Adapter 28L, G1'' ED, Syrafast
Temperatur/tryckreduktion:
-60°C - +20°C = 0%.
+20°C - +50°C = 4,5%.
+50°C - +100°C = 11%.
+100°C - +200°C = 20%.
+200°C - +300°C = 29%.
+300°C - +400°C = 33%.
Varenummer:
XGE28LRED-SY
Pakke str.:
10 st
Min. bestillingsenhed er:
1 st
Angle
0 °
Brand Name
Volz
Diameter pipe
28 mm
Dimension D1
28 mm
Dimension D1
28 mm
Dimension D2
23 mm
Dimension L1
54 mm
Dimension L2
43 mm
Dimension L3
17.5 mm
Dimension S1
41 mm
Dimension S2
41 mm
Dimension T2
310
Dimension i
18 mm
Dimension i1
18 mm
Material
Syrafast stål
Material quality
1.4571 / AISI316Ti
Model code
XGEV 28 LR 1 WD
Pressure max.
250 bar
REACH compliant
Ja
RoHs compliant
Ja
Safety factor
4
Sealing material
FKM/FPM (Viton®)
Series
L
Temperature max.
+200 °C
Temperature min.
-25 °C
Thread T1
M36x2
Thread T2
G 1 BSP
Thread outer
G 1 BSP
Thread outer metric
M36x2
Pakke str.
10 st
Stregkode
250126
Brutto vægt
0,18 Kg
Netto vægt
0,18 Kg
Oprindelsesland
DEU
Intrastat varekode
73072910
Temperatur/tryckreduktion:
-60°C - +20°C = 0%.
+20°C - +50°C = 4,5%.
+50°C - +100°C = 11%.
+100°C - +200°C = 20%.
+200°C - +300°C = 29%.
+300°C - +400°C = 33%.
Bemærk: Åbning af 3D-filer kræver et program der understøtter fil-formatet
