Adapter 06S, G1/8''
Temperatur/tryckreducering: -40°C - +120°C = 0%. +120°C - +150°C = 11%. +150°C - +175°C = 15%. +175°C - +200°C = 19%. +200°C - +250°C = 28%.
Varenummer:
XGE06SR18
Pakke str.:
1 st
Min. bestillingsenhed er:
1 st
Angle
0 °
Brand Name
Stauff
Corrosion resistance
1200 hours salt spray DIN EN ISO 9227
Diameter pipe
6 mm

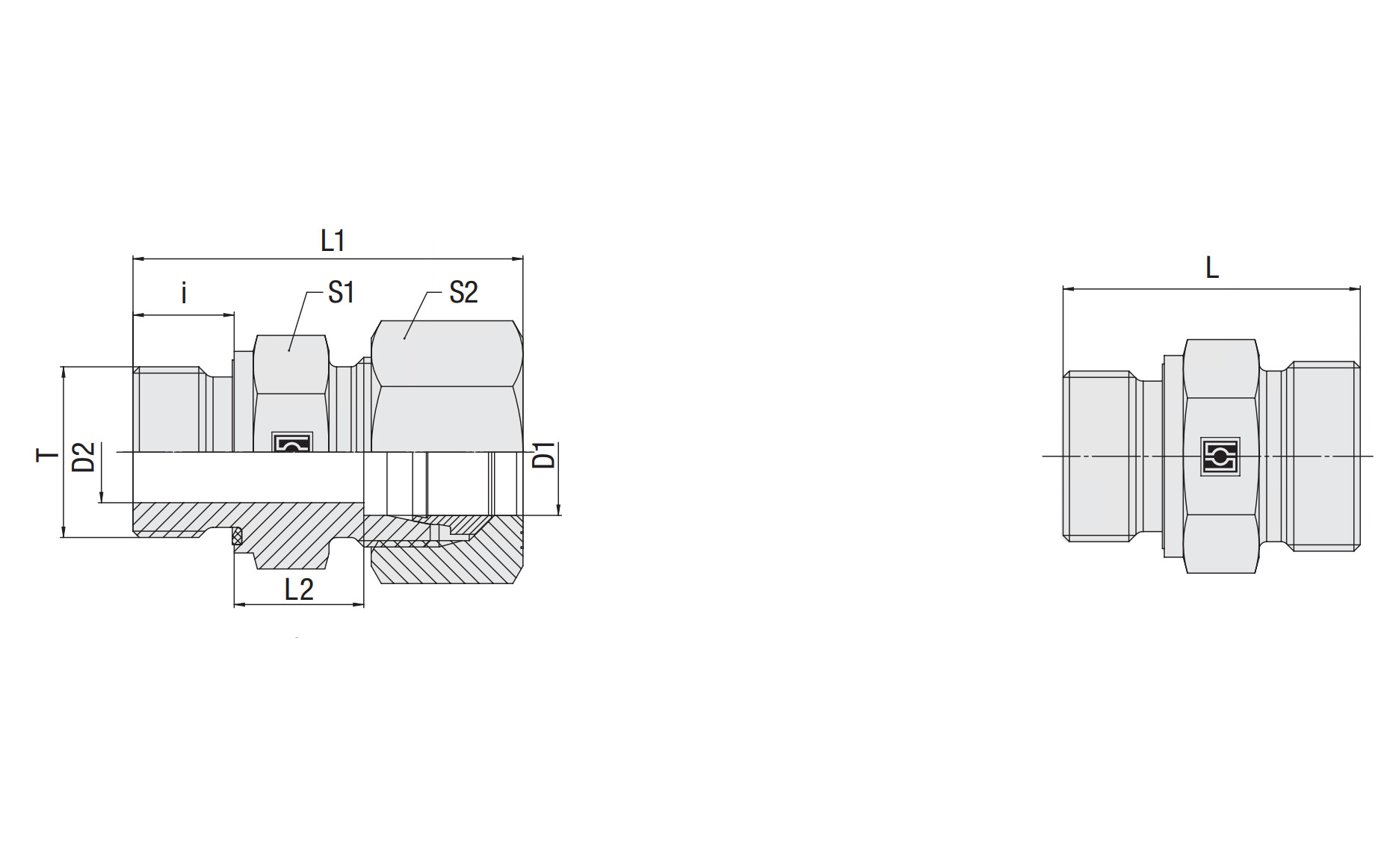

L
27,5 mm
L1
35,5 mm
L2
12,5 mm
Material
Stål
Model code
FI-GE-06SR1/8-WD-B-W3
Pressure max.
800 bar
REACH compliant
Ja
RoHs compliant
Ja
S1
17 mm
S2
17 mm
Safety factor
4
Series
S
Surface treatment
Zink-Nickel
Temperature max.
+120 °C
Temperature min.
-40 °C
Thread T
G 1/8 BSP
Thread outer
G 1/8 BSP
Thread outer metric
M14x1,5
Torque tightening
25 Nm
d1
6 mm
d2
4 mm
i
8 mm
Package size
1 st
Barcode
424401
Gross weight
Kg
Net weight
Kg
Country of origin
deu
Temperatur/tryckreducering: -40°C - +120°C = 0%. +120°C - +150°C = 11%. +150°C - +175°C = 15%. +175°C - +200°C = 19%. +200°C - +250°C = 28%.
