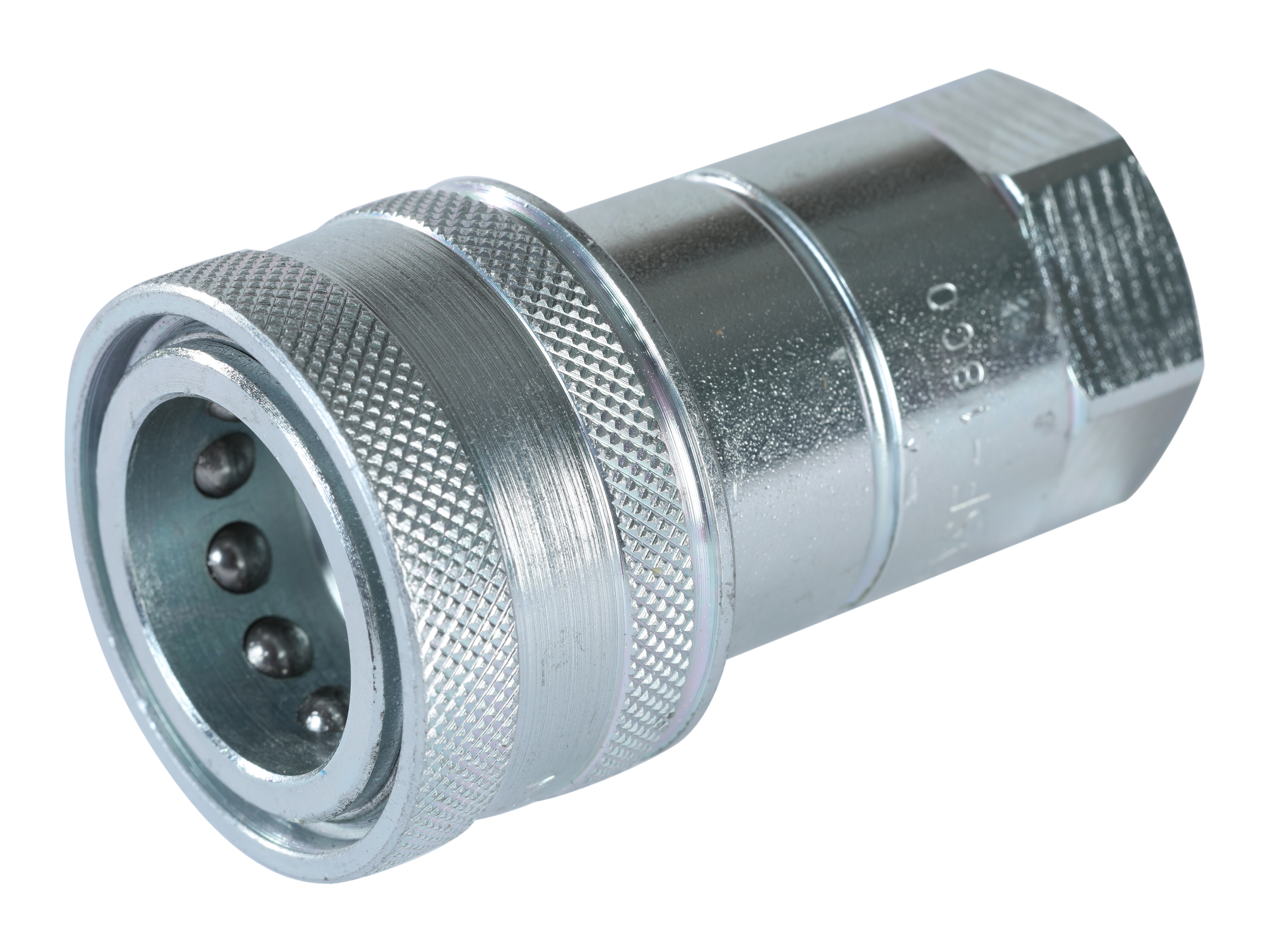

Snabbkoppling hona 3/4U ISO-A

Standard quick coupler.

Connection system: pulling back the sleeve.

Disconnection system: pulling back the sleeve.

Shut off system: poppet valve.

Connectability: without pressure.

Disconnection under pressure: not allowed.

Artikelnummer:

NV12-12SAEF

Förpackningsstorlek:

1 st

Minsta beställningskvantitet:

1 st

Tillbehör (7)
Reservdelar (1)

Snabbkoppling Hane NV (ISO-A) - DN12 - 3/4"UNF

Partnumber: NV12-12SAEM

Dammskydd Hona, PVC Orange

Partnumber: TM12LA

Dammskydd Hona, PVC Blå

Partnumber: TM12LB

Dammskydd Hona, PVC Gul

Partnumber: TM12LG

Dammskydd Hona, PVC Svart

Partnumber: TM12LN

Dammskydd Hona, PVC Röd

Partnumber: TM12LR

Dammskydd Hona, PVC Grön

Partnumber: TM12LV

P-sats Hona NV12 Faster, en oring och en stödring.

Partnumber: SKNV12

Specifications
Dimensions and shipping

12.5 mm

Dimension A

3/4-16 UNF

Flödeshastighet nominell LMin

75 lpm

Gänga inv.

3/4-16 SAE

Gänga inv.

3/4-16 UNF

Modell kod

NV 12-12SAE F

Märke namn

Faster

Packningsmaterial

Buna-N

Rostbeständighet

500 hours salt spray ISO 9227

Temperatur max.

+125 °C

Temperatur min.

-25 °C

Tillverkningsmaterial

Stål

Tryck max.

120 bar

Package size

1 st

Barcode

332575

Gross weight

0,26 Kg

Net weight

0,26 Kg

Country of origin

ITA

Intrastat code

84812010

Product information
Measure sketch

Standard quick coupler.

Connection system: pulling back the sleeve.

Disconnection system: pulling back the sleeve.

Shut off system: poppet valve.

Connectability: without pressure.

Disconnection under pressure: not allowed.

Produktdatablad Produktkatalog
