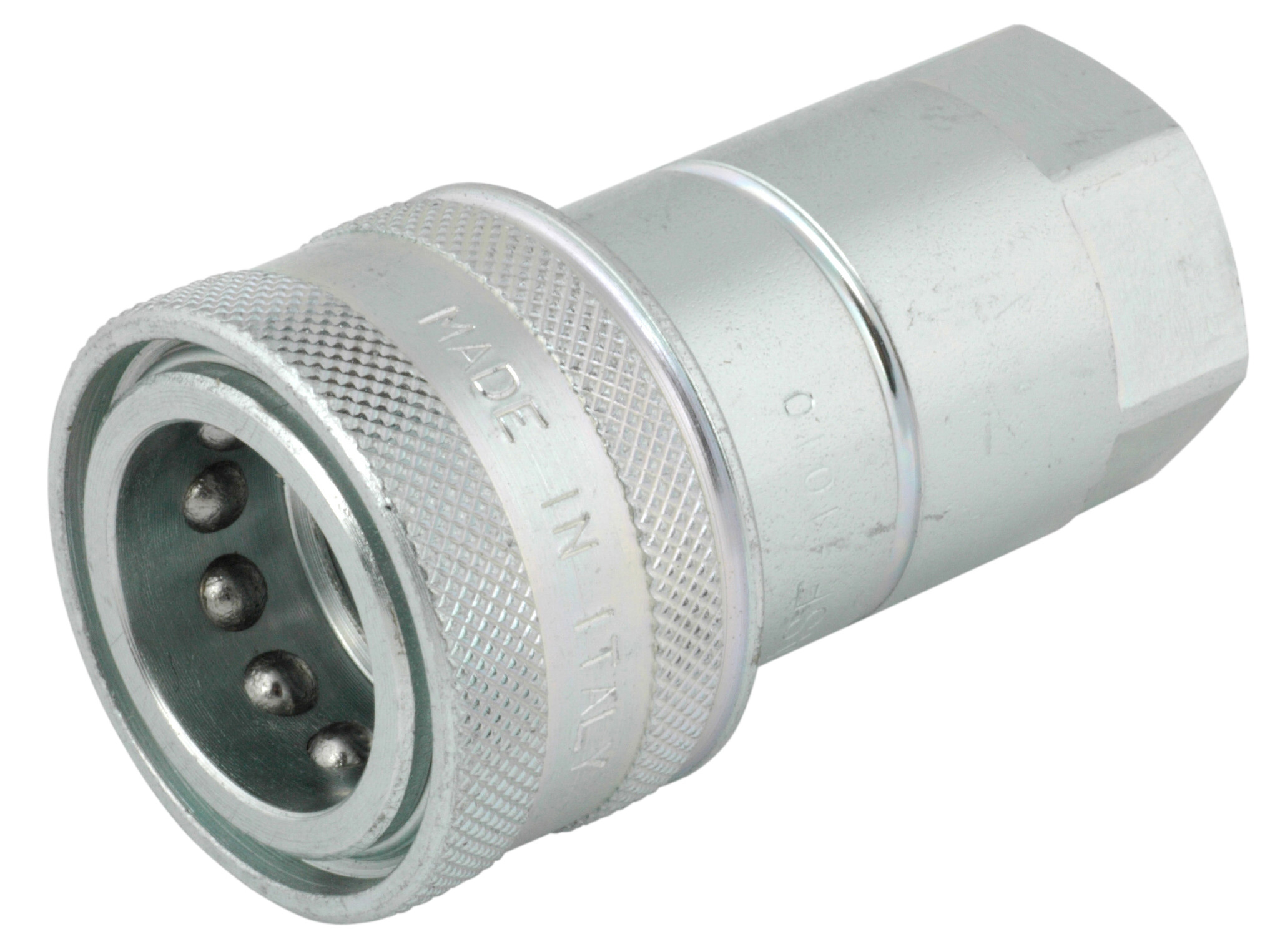

Snabbkopling Hona 1/2 NS ISOA
Standard quick coupler according to ISO 7241-1 part A.
Connection system: pulling back the sleeve.
Disconnection system: pulling back the sleeve.
Shut off system: ball valve.
Connectability: without pressure.
Disconnection under pressure: not allowed.
Interchangeability: according to ISO 7241-1 part A.
Artikelnummer:
NS12GASF
Förpackningsstorlek:
1 st
Minsta beställningskvantitet:
1 st
Dimension A
G 1/2 BSP
Dimension D1
38 mm
Dimension L1
68 mm
Dimension X
27 mm
Flödeshastighet nominell LMin
50 lpm
Gänga inv.
G 1/2 BSP
ISO storlek
12.5
Modell kod
NS 12 GAS F
Märke namn
Faster
Packningsmaterial
NBR
Rostbeständighet
500 hours salt spray ISO 9227
Standard ISO
ISO 7241-1-A
Storlek
1/2 "
Temperatur max.
+125 °C
Temperatur min.
-25 °C
Tillverkningsmaterial
Stål
Tryck max.
200 bar
Typ
Kul
Ytskiktbehandling
Zink coating (CR III)
Package size
1 st
Barcode
332571
Gross weight
0,26 Kg
Net weight
0,26 Kg
Country of origin
ITA
Intrastat code
84812010
Standard quick coupler according to ISO 7241-1 part A.
Connection system: pulling back the sleeve.
Disconnection system: pulling back the sleeve.
Shut off system: ball valve.
Connectability: without pressure.
Disconnection under pressure: not allowed.
Interchangeability: according to ISO 7241-1 part A.
