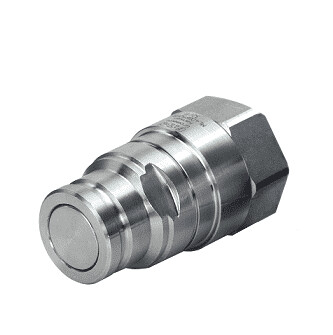

Snabbkoppling MLDB Hane Inv-G1 FKM Syrafast
The MLDB series range offers a near-zero spillage quick-release couplings up to 1" in stainless steel (max wp 25bar). With a selection of seal options and sizes, the MLDB series can offer solutions for a wide variety of fluid handling applications where dry-break on disconnection is a key system design requirement. Minimal spillage on disconnection Flat-face valves give wipe-clean, streamlined exterior Fast, fool-proof, one-handed connection and disconnection, less force to connect. Automatic flow on connection, automatic shut-off of both halves on disconnection High flow capacity / low pressure drop in a compact body 316/316L stainless steel metal parts throughout Viton seals as standard, options include EPDM and Kalrez 6375 Serviceable-seal kits and tools available Colour coded rings available on ½” size Safety sleeve lock feature on sockets as standard Maximum working pressure 25 bar Applications include: fine chemicals, pharmaceuticals, solvents, fuels, acids, industrial fluids, expensive fluids etc.
Varenummer:
ML8DBP100FBS
Pakke str.:
1 st
Min. bestillingsenhed er:
1 st
Flow Nominel
200 lpm
Gevind indvendig
G 1 BSP
Materiale
Rostfritt stål
Materialekvalitet
AISI 316L
Mærke navn
Danfoss
Pakningsmateriale
FKM/FPM (Viton®)
Standard EN
PED 2014/68/EU
Størrelse
1 "
Temperatur maks.
+200 °C
Temperatur min.
-20 °C
Tryk maks.
25 bar
Trykeliminator
Nej
Pakke str.
1 st
Stregkode
400942
Brutto vægt
Kg
Netto vægt
0,711 Kg
Oprindelsesland
fra
Intrastat varekode
84812010
The MLDB series range offers a near-zero spillage quick-release couplings up to 1" in stainless steel (max wp 25bar). With a selection of seal options and sizes, the MLDB series can offer solutions for a wide variety of fluid handling applications where dry-break on disconnection is a key system design requirement. Minimal spillage on disconnection Flat-face valves give wipe-clean, streamlined exterior Fast, fool-proof, one-handed connection and disconnection, less force to connect. Automatic flow on connection, automatic shut-off of both halves on disconnection High flow capacity / low pressure drop in a compact body 316/316L stainless steel metal parts throughout Viton seals as standard, options include EPDM and Kalrez 6375 Serviceable-seal kits and tools available Colour coded rings available on ½” size Safety sleeve lock feature on sockets as standard Maximum working pressure 25 bar Applications include: fine chemicals, pharmaceuticals, solvents, fuels, acids, industrial fluids, expensive fluids etc.
