    • Manometeradapter Rak Utv-JIC 9/16-18, Inv-G1/4''

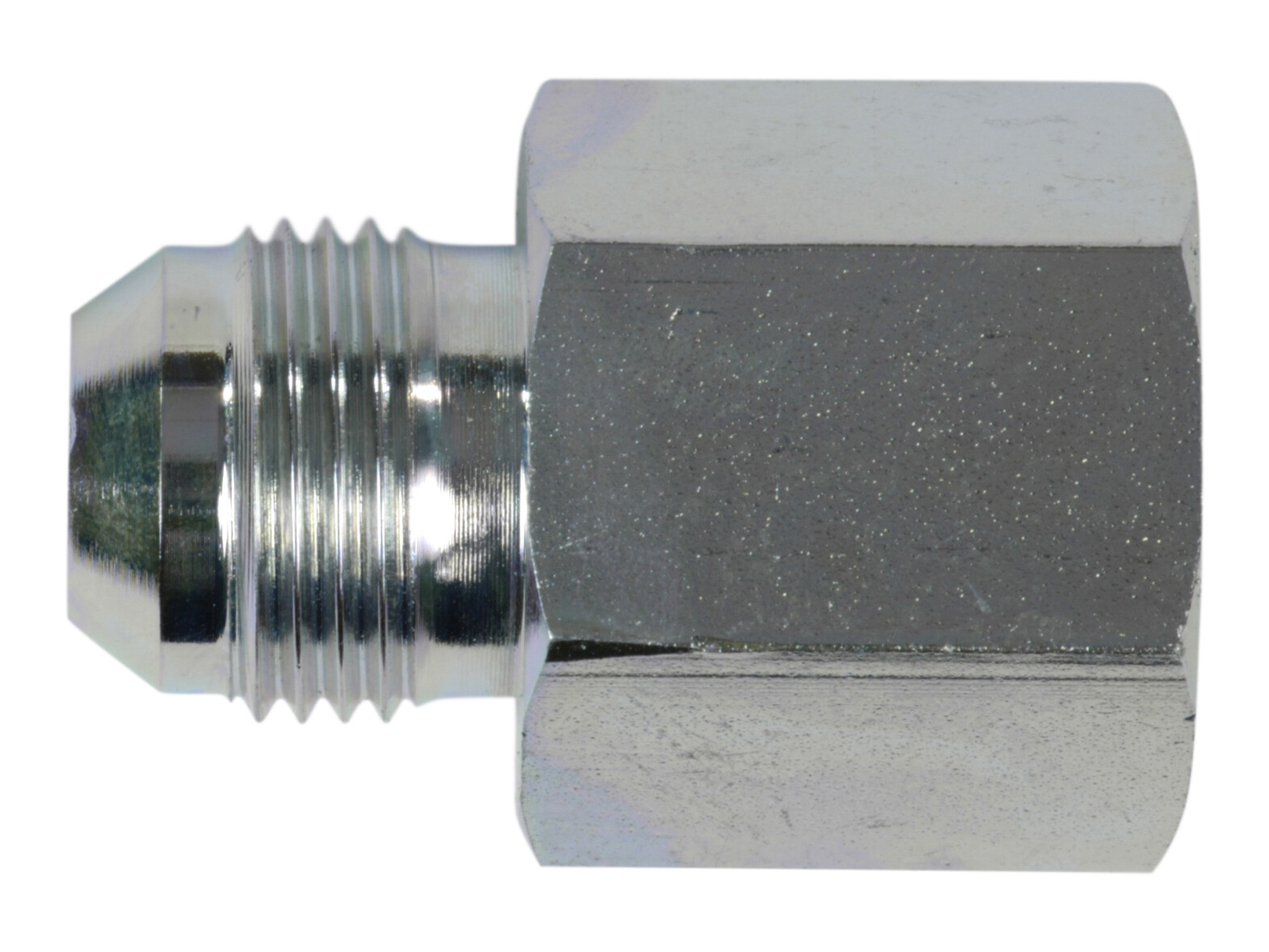

    Manometeradapter Rak Utv-JIC 9/16-18, Inv-G1/4''

    Partnumber:
    JMAV-06-04
    Package size:
    20 st
    Min. order quantity is:
    1 st
    Angle
    0 °
    Brand Name
    FOR
    Corrosion resistance
    1400 hours salt spray DIN EN ISO 9227
    Diameter pipe
    10 mm
    Dimension A
    28 mm
    Dimension B
    14 mm
    Dimension CH
    19 mm
    Dimension F
    G 1/4 BSP
    Dimension J
    9/16-18 JIC
    Dimension T
    10 mm
    Material
    Stål
    Pressure max.
    350 bar
    Surface treatment
    El-förzinkad / vitkromaterad
    Thread inner
    G 1/4 BSP
    Thread outer
    9/16-18 JIC
    Package size
    20 st
    Barcode
    129908
    Gross weight
    0,05 Kg
    Net weight
    0,05 Kg
    Country of origin
    ITA
    Intrastat code
    73071110
    3D-file

    Note: Opening 3D files requires a program that supports the file format
