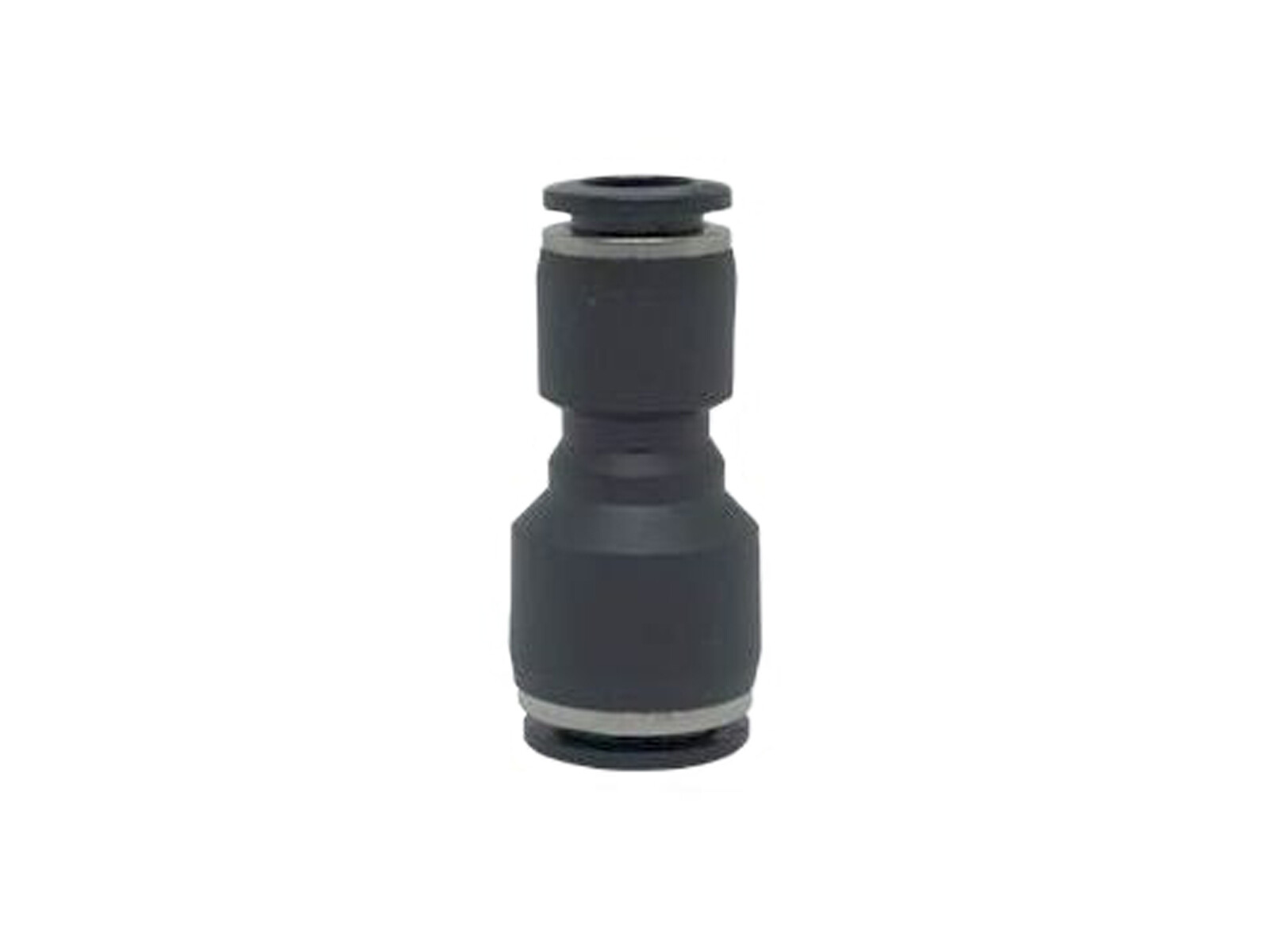

Skarvkoppling Rak Ø12mm Ø10mm
Skarvkoppling Rak Ø12mm Ø10mm
Varenummer:
C00201210
Pakke str.:
10 st
Min. bestillingsenhed er:
1 st
Angle
0 °
Area of use
Tryckluft, Vacuum
Brand Name
Tierre
Dimension L
47.7 mm
Dimension ØD1
12 mm
Dimension ØD2
10 mm
Dimension ØP1
21.5 mm
Material
Mässing, NBR, PBT-plast, POM(Acetal), Rostfritt stål, Zink
Model code
WTRG1208
Pressure max.
16 bar
REACH compliant
Ja
RoHs compliant
Ja
Sealing material
NBR
Series
WTR
Standard
Silicone Free
Standard ISO
ISO 14743
Temperature max.
+80 °C
Temperature min.
-20 °C
Tube Insertion Depth
ØD1 - 22,9, ØD2 - 20,1 mm
Tube Tollerance
ØD1 ± 0,15, ØD2 ± 0,15 mm
Vacuum max.
-0.999 bar
Package size
10 st
Barcode
170491
Gross weight
Kg
Net weight
Kg
Country of origin
ITA
Intrastat code
11111111
