SD5/2-P Vajerkontroll

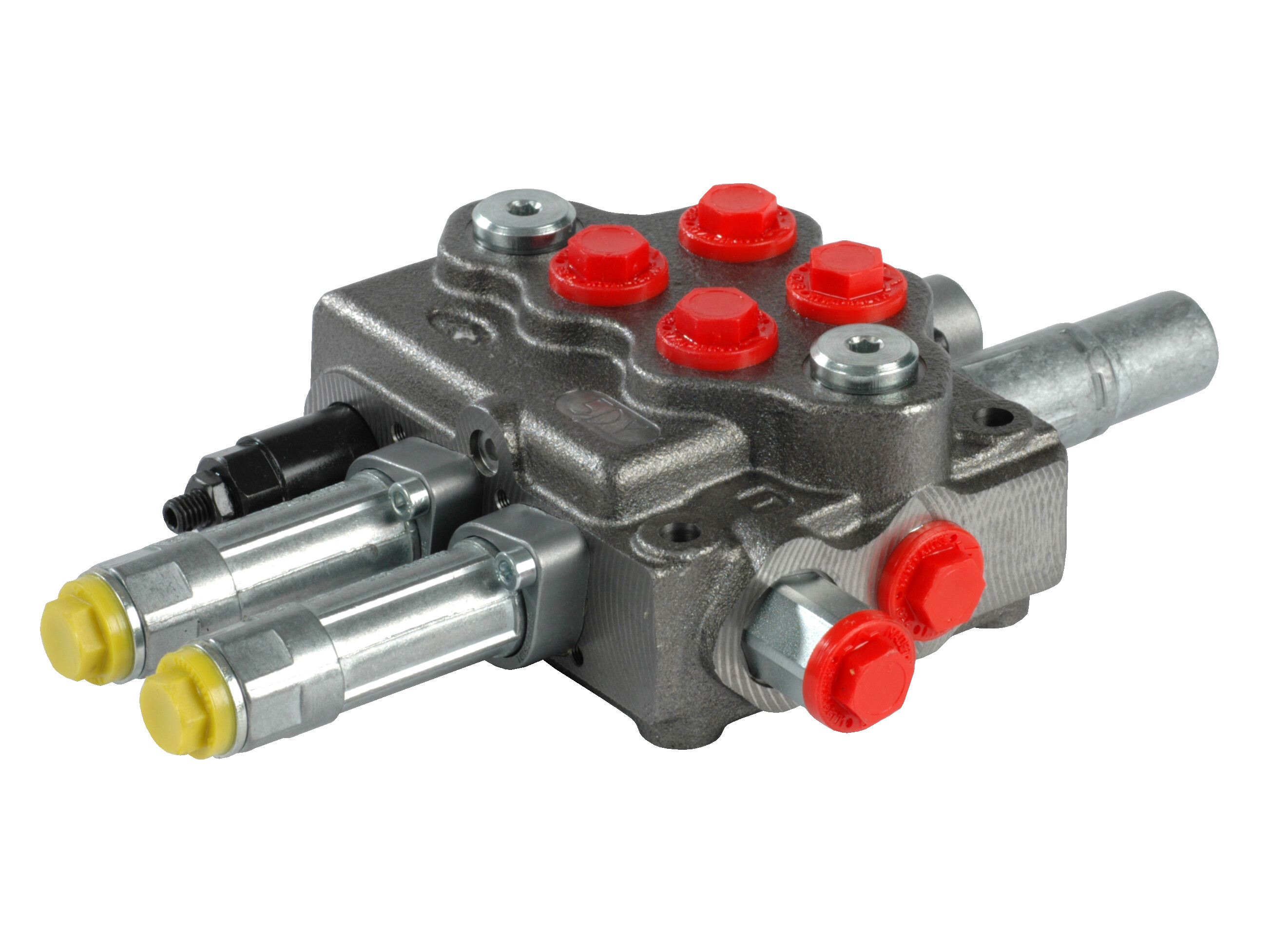

2-section SD5 monoblock valve with built-in pressure relief valve and 2 spools in parallel. Manual activated via cable.

Spool function 1: Double acting, 3 position, A and B closed in neutral position. Spring centered.

Spool function 2: Double acting, 4 position, spring centered in position 0, 1 and 2, detend in float position position 4. A and B closed in neutral position.

Open center P to T in neutral position.

Varenummer:
102200682

Pakke str.:
1 st

Min. bestillingsenhed er:
1 st
Aktivering
Kabel

Antal sektioner
2

Arbejdsporte
G 3/8 BSP

Flow Nominel
45 lpm

Forureningsgrad maks.
-/19/16 - ISO 4406

Håndtag
Exksklusiv

Materiale
Gjutjärn

Model kode
SD5/2-P(JG3-120)/18TQ50/

Mærke navn
Walvoil

Olieviskositet anbefalet
12 - 400 cSt

Port P
G 3/8 BSP

Port T
G 3/8 BSP

Tryk T maks.
25 bar

Tryk maks.
315 bar

Trykbegrænsningsventil
Ja

Trykindstilling maks.
200 bar

Trykindstilling min.
50 bar

Trykvidereføring
Ja
Pakke str.
1 st

Stregkode
335382

Brutto vægt
5,44 Kg

Netto vægt
5,44 Kg

Oprindelsesland
ITA

Intrastat varekode
84812010

2-section SD5 monoblock valve with built-in pressure relief valve and 2 spools in parallel. Manual activated via cable.

Spool function 1: Double acting, 3 position, A and B closed in neutral position. Spring centered.

Spool function 2: Double acting, 4 position, spring centered in position 0, 1 and 2, detend in float position position 4. A and B closed in neutral position.

Open center P to T in neutral position.
