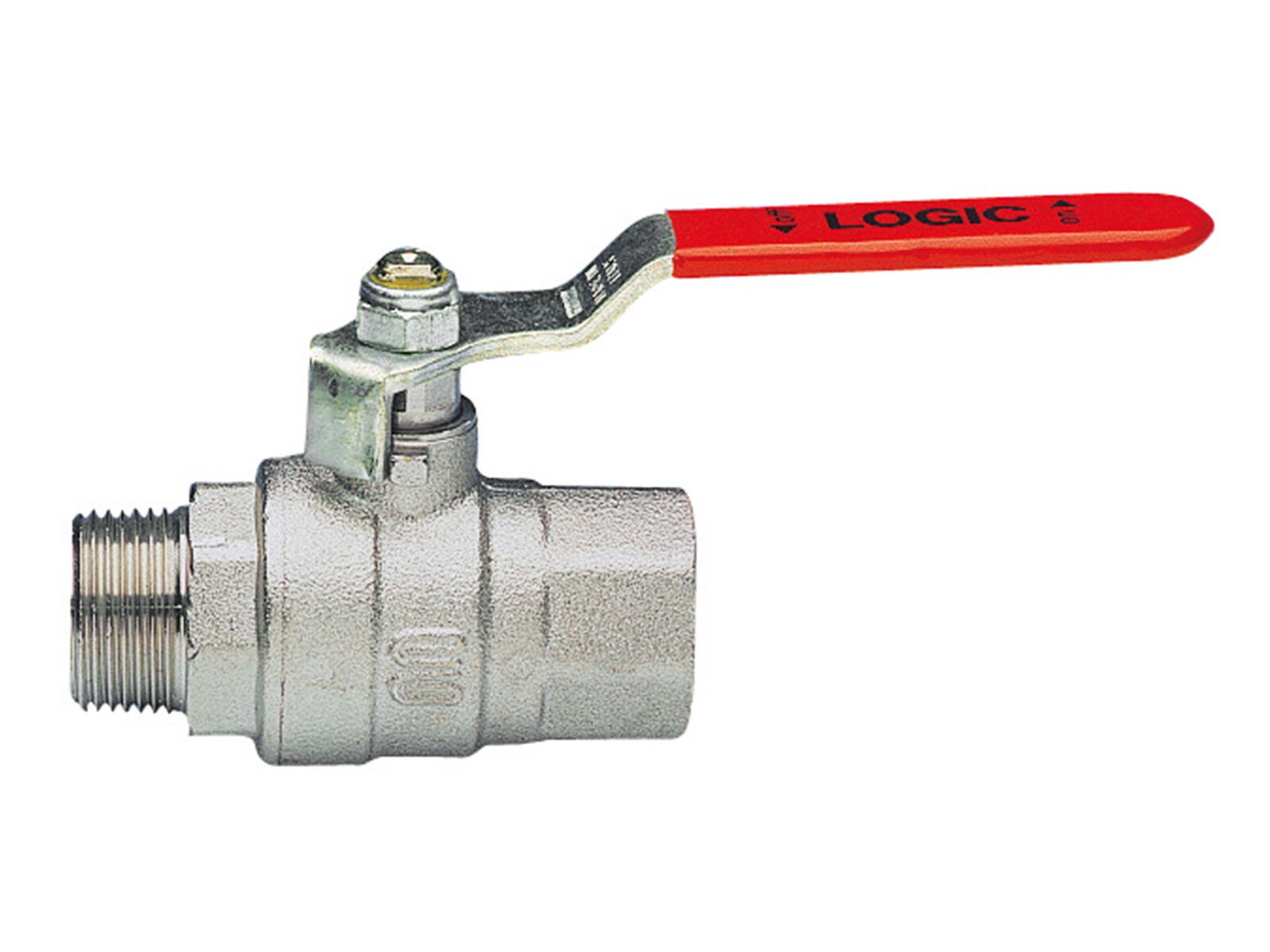

Kulventil Logic Utv/Inv Stålspak, 63 Bar

SELECT VARIANT

Partnumber	Description	Thread	Pressure max.	Material
S192-1	Kulventil Logic Utv/Inv Stålspak, 80 Bar	G 1 BSP	80 bar	Brass
S192-1/2	S192-1/2 KULVENTIL LÅGTRYCK 1/2" (Zawór kulowy)	G 1/2 BSP	80 bar	Brass
S192-1/4	Kulventil Logic Utv/Inv Stålspak, 80 Bar	G 1/4 BSP	80 bar	Brass
S192-11/2	Kulventil Logic Utv/Inv Stålspak, 63 Bar	G 1.1/2 BSP	63 bar	Brass
S192-11/4	Kulventil Logic Utv/Inv Stålspak, 63 Bar	G 1.1/4 BSP	63 bar	Brass
S192-2	Kulventil Logic Utv/Inv Stålspak, 63 Bar	G 2 BSP	63 bar	Brass
S192-3/4	Kulventil Logic Utv/Inv Stålspak, 80 Bar	G 3/4 BSP	80 bar	Brass
S192-3/8	Kulventil Logic Utv/Inv Stålspak, 80 Bar	G 3/8 BSP	80 bar	Brass

Activation

Manual

Area of use

Air, Diesel, Gasoline, Grease, Hydraulic oil, Water

Brand Name

Enolgas

Lever

Inclusive

Lever type

Angled

Material

Brass

Material quality

CW614N/CW617N

Number of ways/positions

2/2

Sealing material

PTFE (Teflon®)

Standard EN

EN 13828

Surface treatment

Nickel-plated

Temperature max.

+140

Temperature min.

-20

Thread EN standard

EN 10226-1

Thread form

Female x male
