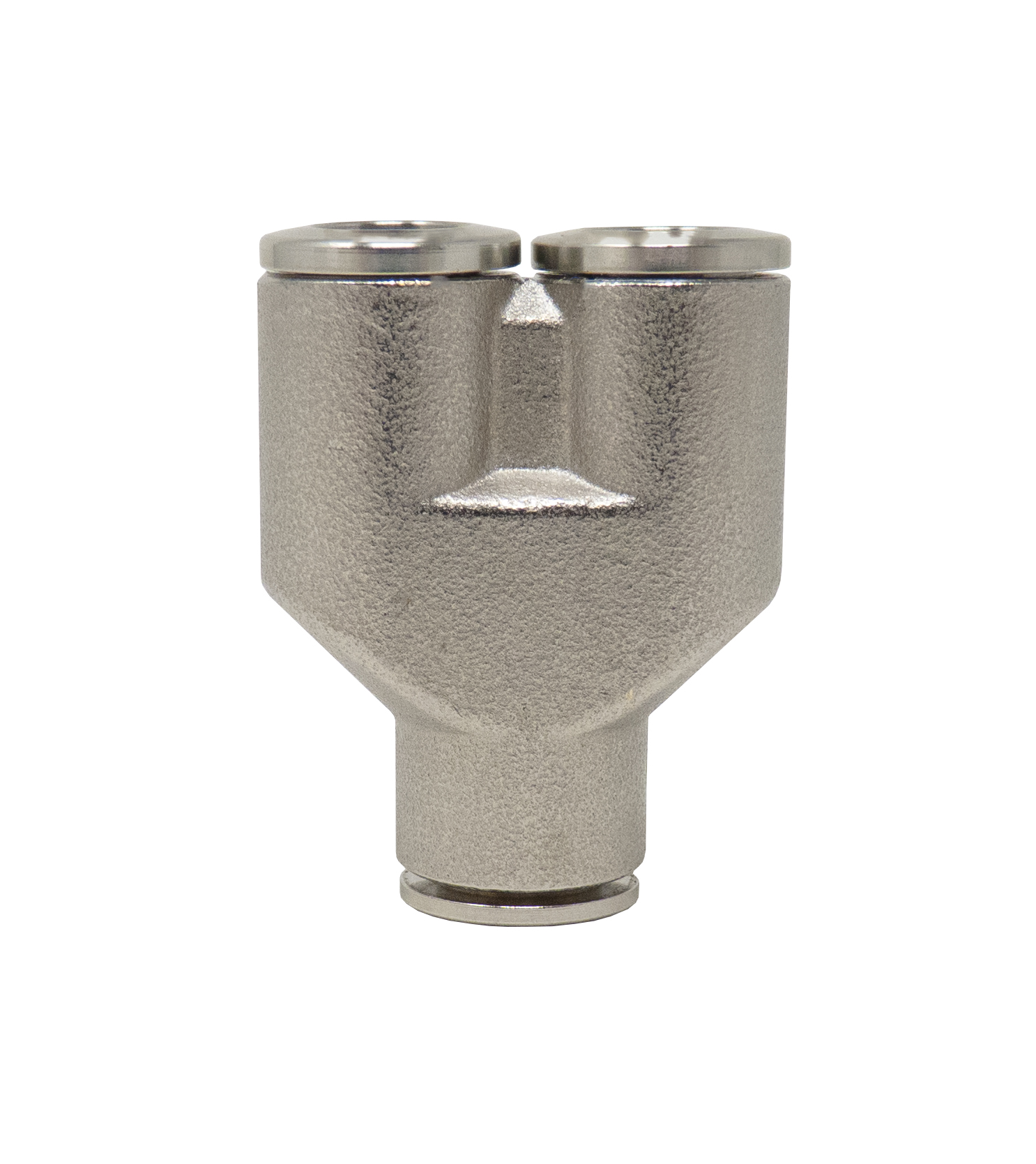

Pneufit 10 Y-connectors

SELECT VARIANT

Partnumber	Description	Diameter pipe 1	Diameter pipe 2	Pressure max.
100820400	Skarvkoppling Y Ø4 mm	4 mm		20 bar
100820600	Skarvkoppling Y Ø6 mm	6 mm		20 bar
100820604	Skarvkoppling Y Ø6 mm Ø4 mm	6 mm	4 mm	20 bar
100820800	Skarvkoppling Y Ø8 mm	8 mm		20 bar
100820806	Skarvkoppling Y Ø8 mm Ø6 mm	8 mm	6 mm	20 bar
100821000	Skarvkoppling Y Ø10 mm	10 mm		20 bar
100821008	Skarvkoppling Y Ø8 mm Ø10 mm	10 mm	8 mm	20 bar
100821200	Union Y nickel-plated - metric tube 12mm	12 mm		20 bar

Material

Brass, Stainless steel

Pressure max.

REACH compliant

Yes

RoHs compliant

Yes

Sealing material

NBR, POM (Acetal)

Standard

Silicone Free

Surface treatment

Nickel-plated

Temperature max.

+80

Temperature min.

-20

Vacuum max.

-0.9
