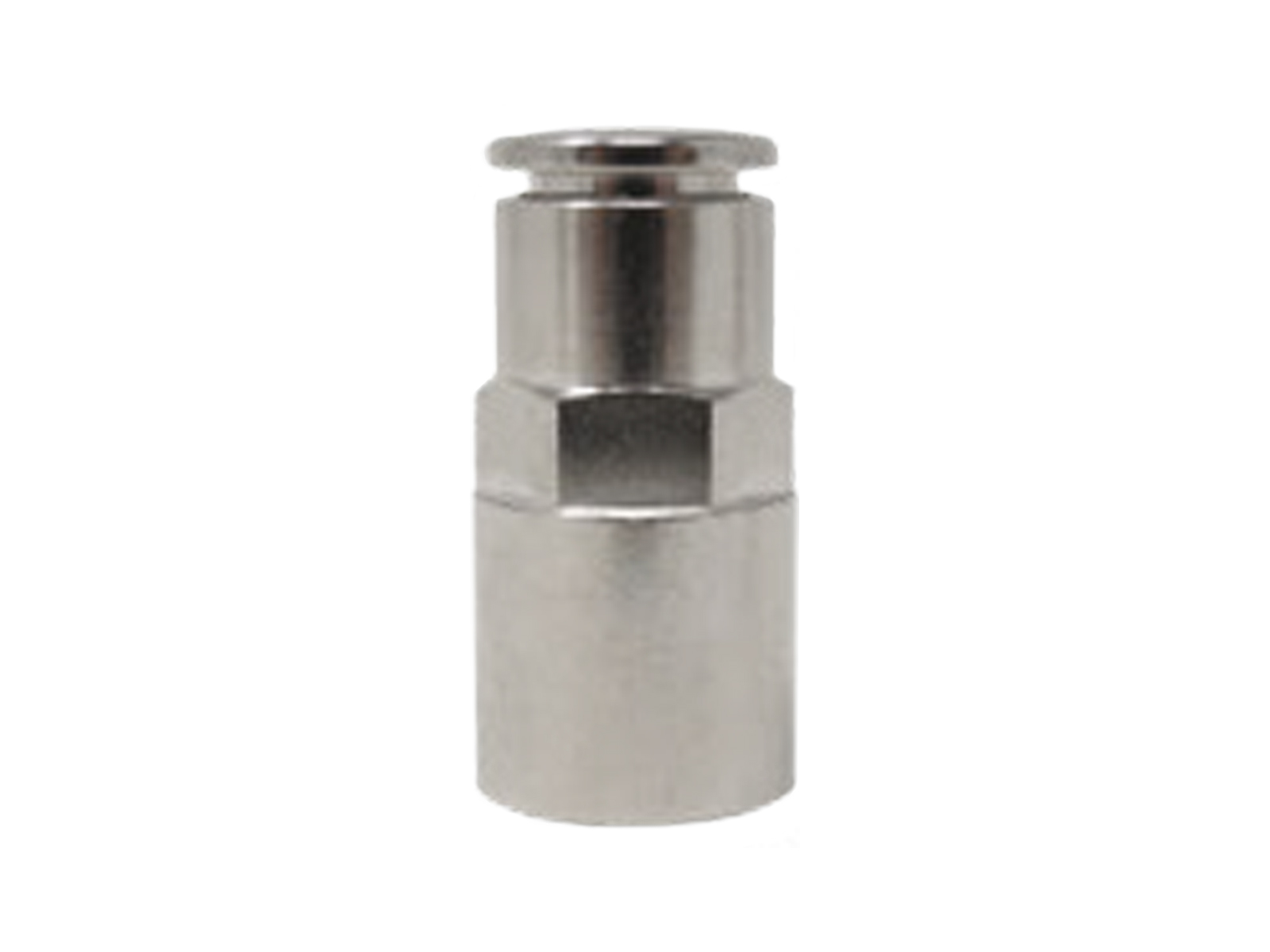

Straight connector mm plastic pipe - BSPP female

VÄLJ VARIANT

Artikelnummer	Beskrivning	Diameter rör	Gänga	Tryck max.
102260418	Rak koppling Ø4 mm 1/8	4 mm	G 1/8 BSP	20 bar
102260428	Rak koppling Ø4 mm 1/4	4 mm	G 1/4 BSP	20 bar
102260518	Rak koppling Ø5 mm 1/8		G 1/8 BSP	20 bar
102260528	Rak koppling Ø5 mm 1/4		G 1/4 BSP	20 bar
102260618	NOR102260618	6 mm	G 1/8 BSP	20 bar
102260628	Rak koppling Ø6 mm 1/4	6 mm	G 1/4 BSP	20 bar
102260818	Rak koppling Ø8 mm 1/8	8 mm	G 1/8 BSP	20 bar
102260828	Rak koppling Ø8 mm 1/4	8 mm	G 1/4 BSP	20 bar
102261028	Rak koppling Ø10 mm 1/4		G 1/4 BSP	20 bar
102261038	Rak koppling Ø10 mm 3/8		G 3/8 BSP	20 bar
102261238	Rak koppling Ø12 mm 3/8		G 3/8 BSP	20 bar
102261248	Rak koppling Ø12 mm 1/2		G 1/2 BSP	20 bar

Packningsmaterial

NBR, POM (Acetal)

REACH compliant

Yes

RoHs compliant

Yes

Standard

Silicone Free

Temperatur max.

+80

Temperatur min.

-20

Tillverkningsmaterial

Brass, Stainless steel

Tryck max.

Vakuum max.

-0.9

Vinkel

Ytskiktbehandling

Nickel-plated
