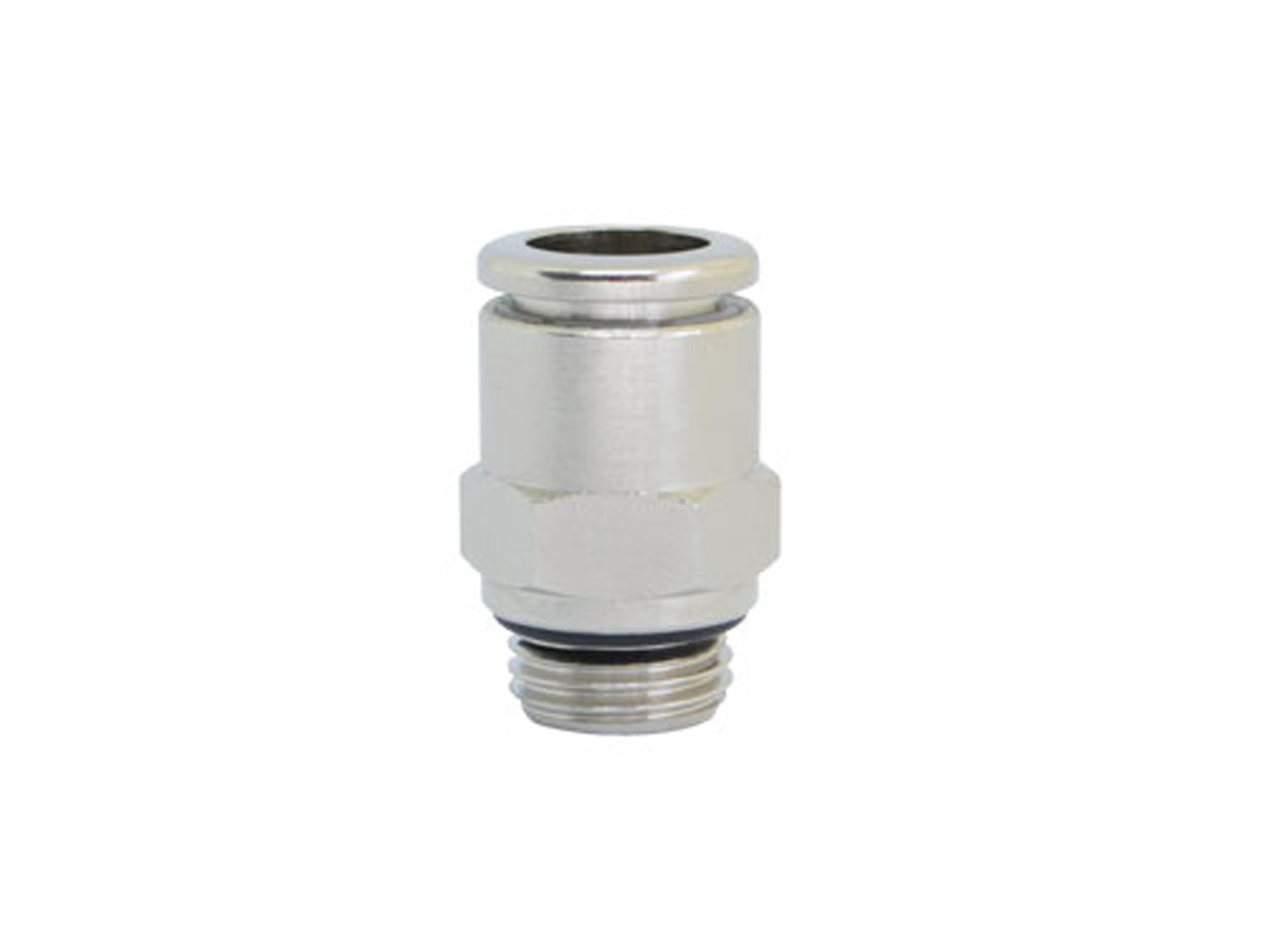

Pneufit 10 straight basic connectors BSPP cylindrical thread

Pneufit 10 straight basic connectors BSPP cylindrical thread

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Diameter pipe Thread Pressure max.
102250418 Adapter Rak Ø4 mm Utv-G1/8'' 4 mm G 1/8 BSP 20 bar
102250428 Adapter Rak Ø4 mm Utv-G1/4'' 4 mm G 1/4 BSP 20 bar
102250518 Adapter Rak Ø5 mm Utv-G1/8'' 5 mm G 1/8 BSP 20 bar
102250528 Adapter Rak Ø5 mm Utv-G1/4'' 5 mm G 1/4 BSP 20 bar
102250618 Adapter Rak Ø6 mm Utv-G1/8'' 6 mm G 1/8 BSP 20 bar
102250628 Adapter Rak Ø6 mm Utv-G1/4'' 6 mm G 1/4 BSP 20 bar
102250818 LAN0818_8210-08-180 8 mm G 1/8 BSP 20 bar
102250828 Adapter Rak Ø8 mm Utv-G1/4'' 8 mm G 1/4 BSP 20 bar
102250838 Adapter Rak Ø8 mm Utv-G3/8'' 8 mm G 3/8 BSP 20 bar
102250848 Adapter Rak Ø8 mm Utv-G1/2'' 8 mm G 1/2 BSP 20 bar
102251018 Adapter Rak Ø10 mm Utv-G1/8'' 10 mm G 1/8 BSP 20 bar
102251028 Adapter Rak Ø10 mm Utv-G1/4'' 10 mm G 1/4 BSP 20 bar
102251038 Adapter Rak Ø10 mm Utv-G3/8'' 10 mm G 3/8 BSP 20 bar
102251228 Adapter Rak Ø12 mm Utv-G1/4'' 12 mm G 1/4 BSP 20 bar
102251238 Adapter Rak Ø12 mm Utv-G3/8'' 12 mm G 3/8 BSP 20 bar
102251248 Adapter Rak Ø12 mm Utv-G1/2'' 12 mm G 1/2 BSP 20 bar
102251438 Adapter Rak Ø14 mm Utv-G3/8'' 14 mm G 3/8 BSP 20 bar
102251448 Adapter Rak Ø14 mm Utv-G1/2'' 14 mm G 1/2 BSP 20 bar
Angle
0
Pressure max.
20
REACH compliant
Yes
RoHs compliant
Yes
Sealing material
NBR, POM (Acetal)
Standard
Silicone Free
Surface treatment
Nickel-plated
Temperature max.
+80
Temperature min.
-20
Thread ISO standard
ISO 228
Vacuum max.
-0.9
