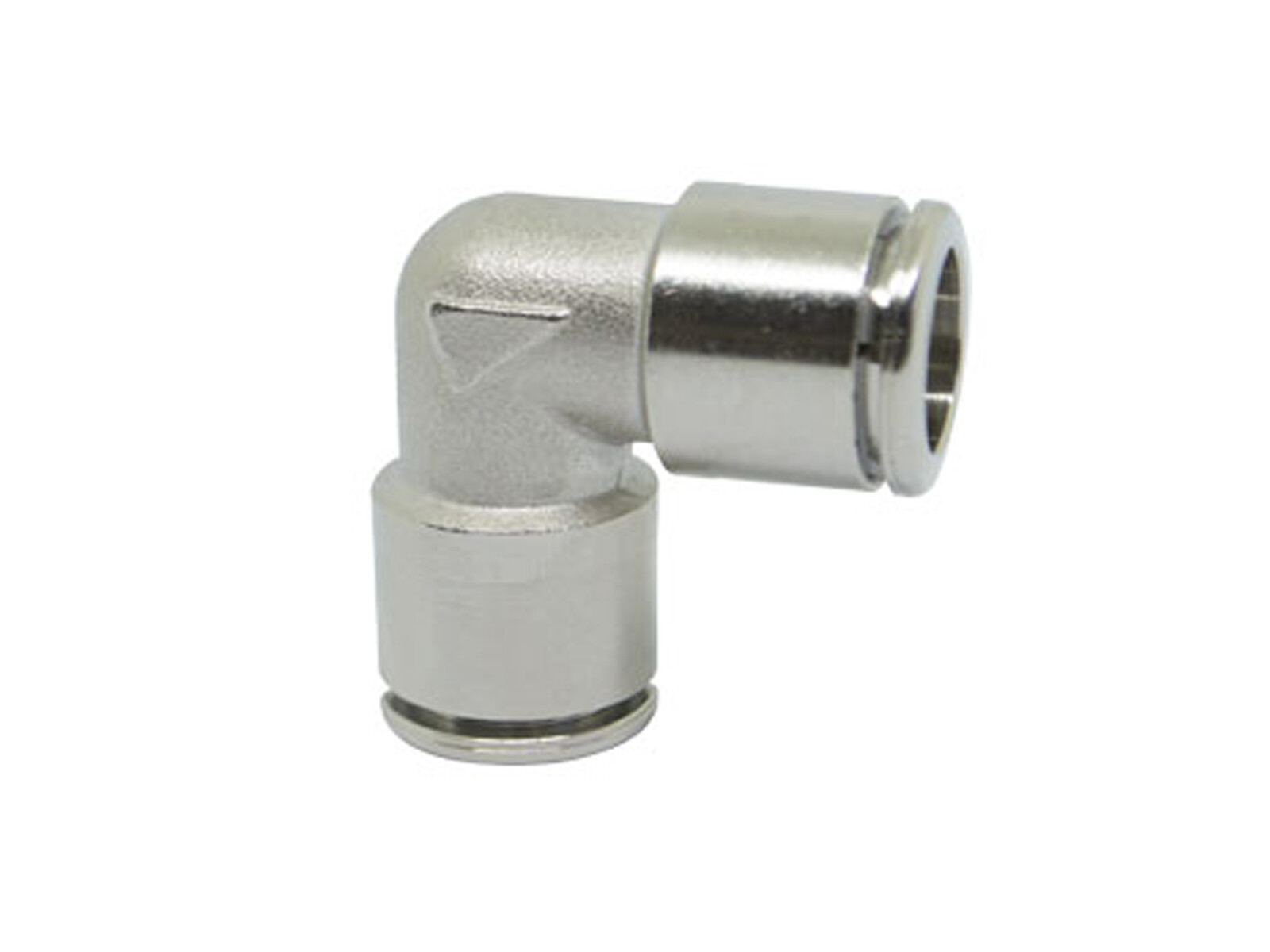

Pneufit 10 angle connectors

Skarvkoppling 90 Ø4 mm

Skarvkoppling 90 Ø5 mm

Skarvkoppling 90 Ø6 mm

Skarvkoppling 90 Ø8 mm

Skarvkoppling 90 Ø10 mm

Skarvkoppling 90 Ø12 mm

Skarvkoppling 90 Ø14 mm

SELECT VARIANT

Partnumber	Description	Diameter pipe	Pressure max.
100400400	Skarvkoppling 90 Ø4 mm	4 mm	20 bar
100400500	Skarvkoppling 90 Ø5 mm	5 mm	20 bar
100400600	Skarvkoppling 90 Ø6 mm	6 mm	20 bar
100400800	Skarvkoppling 90 Ø8 mm	8 mm	20 bar
100401000	Skarvkoppling 90 Ø10 mm	10 mm	20 bar
100401200	Skarvkoppling 90 Ø12 mm	12 mm	20 bar
100401400	Skarvkoppling 90 Ø14 mm	14 mm	20 bar

Angle

Area of use

Compressed air, Gas and liquids compatible with constituent materials, Vacuum

Material

Brass, Stainless steel

Pressure max.

REACH compliant

Yes

RoHs compliant

Yes

Sealing material

NBR, POM (Acetal)

Standard

Silicone Free

Surface treatment

Nickel-plated

Temperature max.

+80

Temperature min.

-20

Vacuum max.

-0.9
