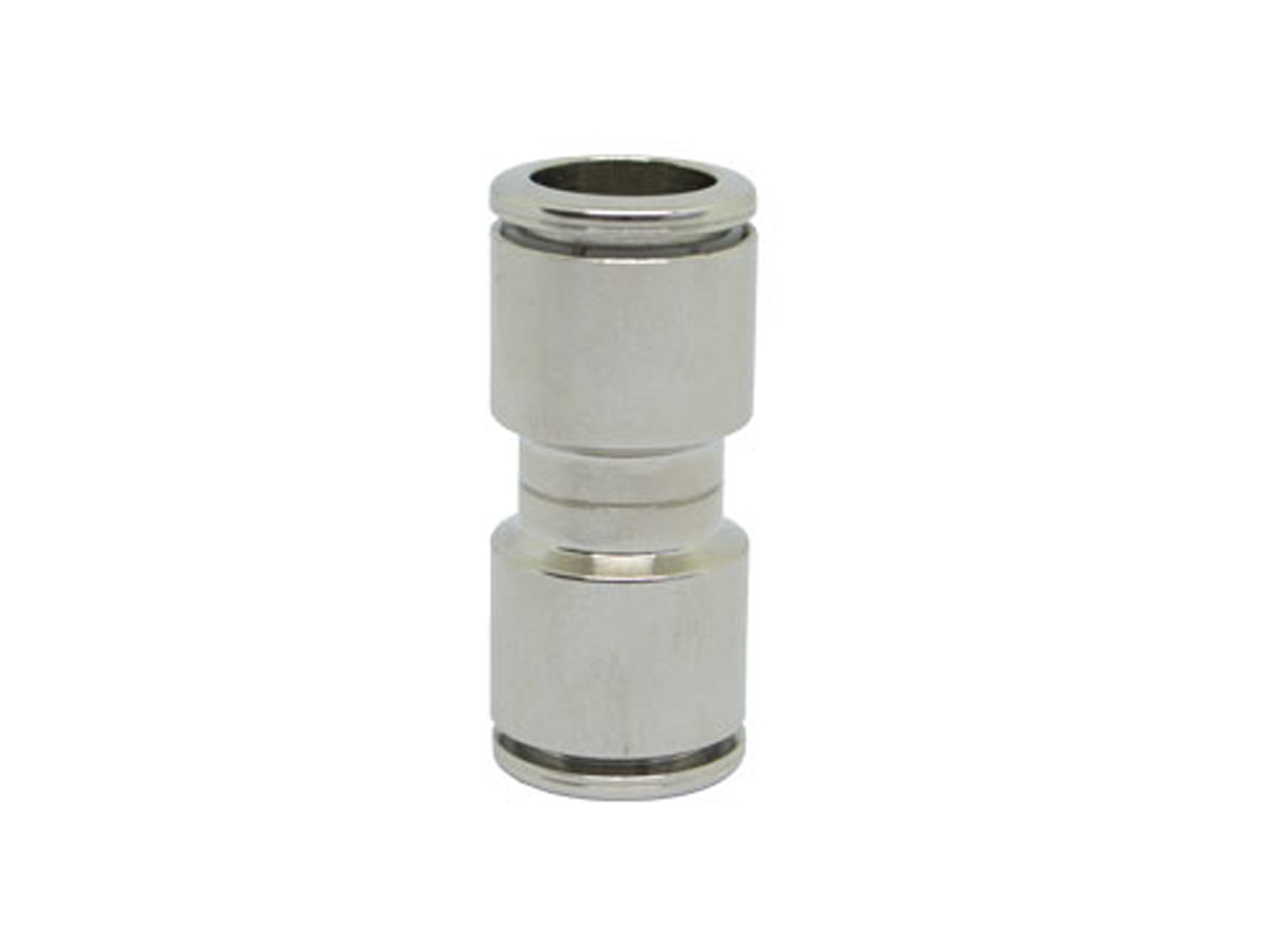

Pneufit 10 straight extension connectors

SELECT VARIANT

Partnumber	Description	Diameter pipe	Diameter pipe 1	Diameter pipe 2	Pressure max.
100200400	Skarvkoppling Rak Ø4 mm	4 mm	4 mm		20 bar
100200500	Skarvkoppling Rak Ø5 mm	5 mm	5 mm		20 bar
100200600	Skarvkoppling Rak Ø6 mm	6 mm	6 mm		20 bar
100200604	Unequal Straight Connector tube to tube Ø6-4mm	6/4 mm	6 mm	4 mm	20 bar
100200800	Skarvkoppling Rak Ø8 mm	8 mm	8 mm		20 bar
100200806	PFIT 8-6MM STRAIGHT CONNECTOR	8/6 mm	8 mm	6 mm	20 bar
100201000	Skarvkoppling Rak Ø10 mm	10 mm	10 mm		20 bar
100201008	PFIT 10-8MM STRAIGHT CONNECTOR	10/8 mm	10 mm	8 mm	20 bar
100201200	Skarvkoppling Rak Ø12 mm	12 mm	12 mm		20 bar
100201210	PFIT 12-10MM STRAIGHT CONNECT	12/10 mm	12 mm	10 mm	20 bar
100201400	Skarvkoppling Rak Ø14 mm	14 mm	14 mm		20 bar
120200500	Skarvkoppling Rak Ø8 mm	8 mm	8 mm		20 bar

Angle

Area of use

Compressed air, Vacuum

Material

Brass, Stainless steel

Pressure max.

REACH compliant

Yes

RoHs compliant

Yes

Sealing material

NBR, POM (Acetal)

Standard

Silicone Free

Surface treatment

Nickel-plated

Temperature max.

+80

Temperature min.

-20

Vacuum max.

-0.9
