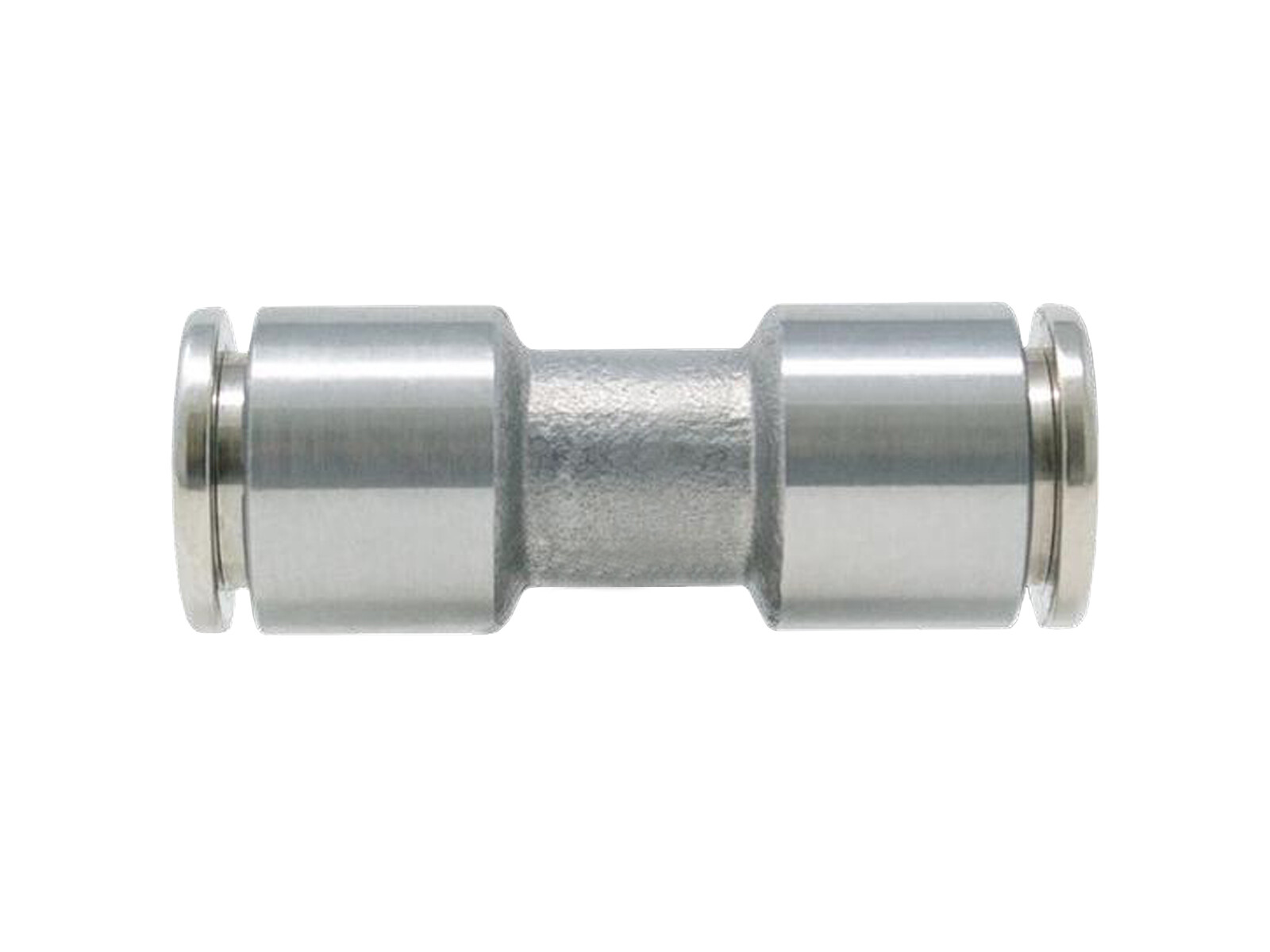

Straight connector push-in x push-in - SXUC

Rak Push-in, 4mm skarv, SY

Rak Push-in, 6mm skarv, SY

Rak Push-in, 8mm skarv, SY

Rak Push-in, 10mm skarv, SY

Rak Push-in, 12mm skarv, SY

VÆLG VARIANT

Varenummer	Beskrivelse	Tryk maks.	Vakuum maks.
SXUC-0400	Rak Push-in, 4mm skarv, SY	20 bar	-0.95 bar
SXUC-0600	Rak Push-in, 6mm skarv, SY	20 bar	-0.95 bar
SXUC-0800	Rak Push-in, 8mm skarv, SY	20 bar	-0.95 bar
SXUC-1000	Rak Push-in, 10mm skarv, SY	20 bar	-0.95 bar
SXUC-1200	Rak Push-in, 12mm skarv, SY	20 bar	-0.95 bar

Anvendelsesområde

Compressed air, Gas and liquids compatible with constituent materials, Vacuum

Materiale

Stainless steel

Materialekvalitet

AISI 316L

Mærke navn

Tierre

Pakningsmateriale

FKM/FPM (Viton®), PVDF-UHM

REACH compliant

Yes

RoHs compliant

Yes

Rørspor Dimension A

0.23

Standard

Silicone Free

Standard EN

DM 174/2004, EC 1935/2004, ICIM Food, ICIM Water

Standard SAE

NSF/ANSI 169

Temperatur maks.

+150

Temperatur min.

-20

Tryk maks.

Vakuum maks.

-0.95

Vinkel
