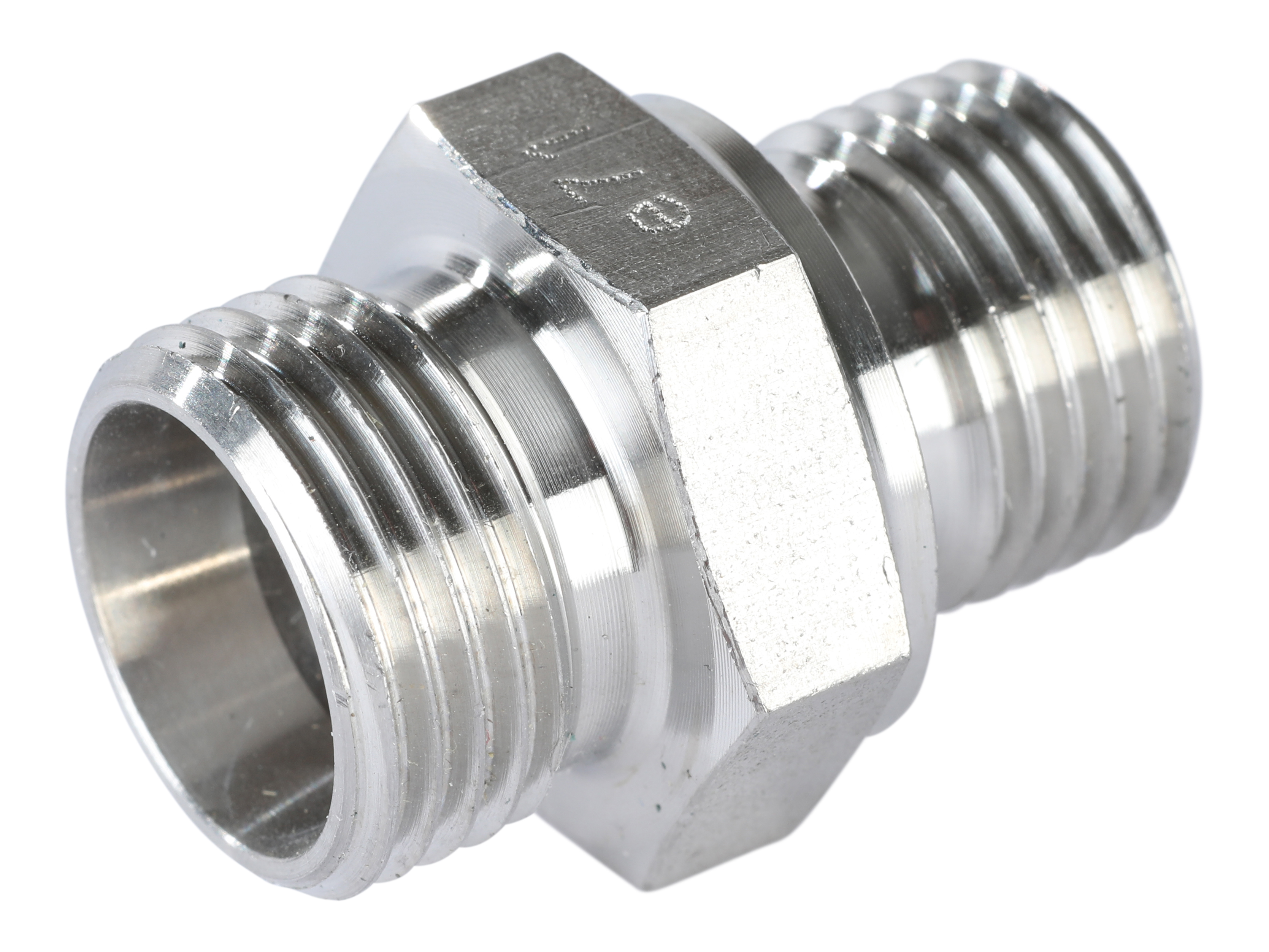

Straight fitting 0° - L-series - DIN male x MM male stud stainless - A-MLX/71 / XGE-LM-SY

Stud fitting - ø6L x M10x1 - AISI316

Stud fitting - ø8L x M12x1.5 - AISI316

Stud fitting - ø8L x M16x1.5 - AISI316

Stud fitting- ø12L x M16x1.5 - AISI316

Stud fitting - ø12L x M14x1.5 - AISI316

SELECT VARIANT

Partnumber	Description	Diameter pipe	Thread outer metric	Pressure max.
XGE06LM-SY	Stud fitting - ø6L x M10x1 - AISI316	6 mm	M10x1, M12x1,5	315 bar
XGE08LM-SY	Stud fitting - ø8L x M12x1.5 - AISI316	8 mm	M12x1,5, M14x1,5	315 bar
XGE08LM16-SY	Stud fitting - ø8L x M16x1.5 - AISI316	8 mm	M14x1,5, M16x1,5	315 bar
XGE12LM-SY	Stud fitting- ø12L x M16x1.5 - AISI316	12 mm	M16x1,5, M18x1,5	315 bar
XGE12LM14-SY	Stud fitting - ø12L x M14x1.5 - AISI316	12 mm	M14x1,5, M18x1,5	315 bar

Angle

Brand Name

Volz

Material

Stainless steel

Material quality

1.4571 / AISI316Ti

Pressure max.

315

REACH compliant

Yes

RoHs compliant

Yes

Safety factor

Series

Temperature max.

+400

Temperature min.

-60
