    • Straight fitting 0° - S-series - DIN male x BSP male stud WD seal

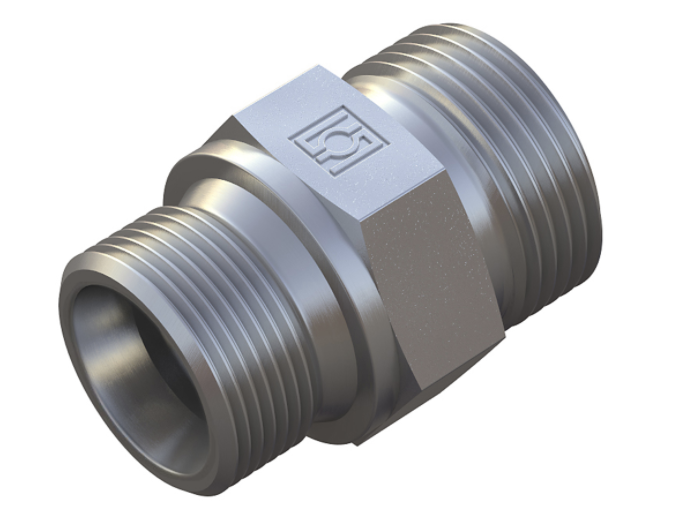

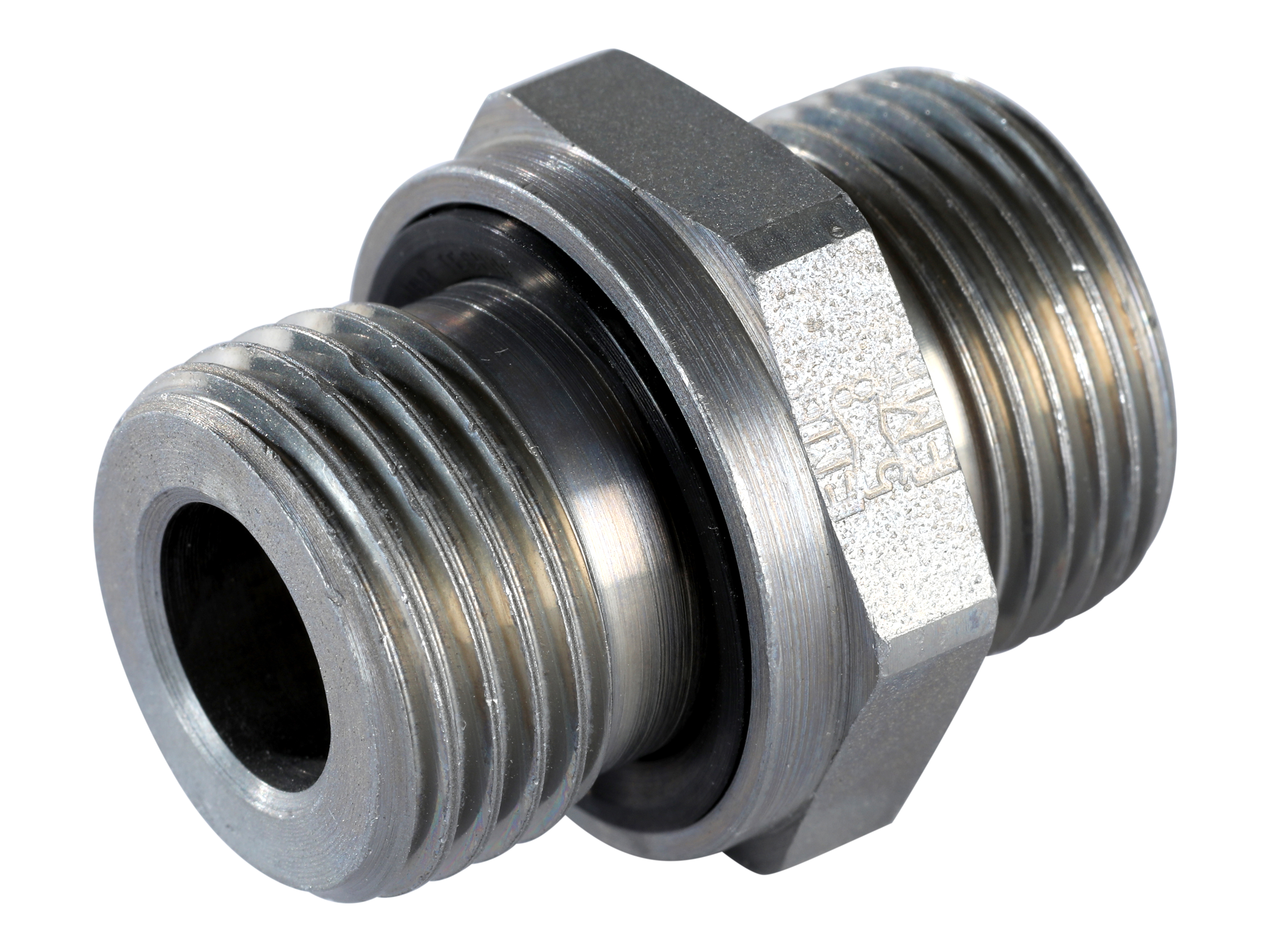

    Straight fitting 0° - S-series - DIN male x BSP male stud WD seal

    Välj variant
    VÄLJ VARIANT
    VÄLJ VARIANT
    Artikelnummer Beskrivning Diameter pipe Thread outer Pressure max.
    XGE06SR12ED Stud fitting - ø6S x 1/2" BSP - WD seal 6 mm
    XGE06SR38ED Stud fitting - ø6S x 3/8" BSP - WD seal 6 mm
    XGE06SRED Stud fitting - ø6S x 1/4" BSP - WD seal 6 mm G 1/4 BSP 800 bar
    XGE08SR12ED Stud fitting - ø8S x 1/2" BSP - WD seal 8 mm
    XGE08SR18ED Adapter 08S, G1/8'' ED 8 mm G 1/8 BSP 800 bar
    XGE08SR34ED Adapter 08S, G3/4'' ED 8 mm G 3/4 BSP 800 bar
    XGE08SR38ED Stud fitting - ø8S x 3/8" BSP - WD seal 8 mm G 3/8 BSP 800 bar
    XGE08SRED Stud fitting - ø8S x 1/4" BSP - WD seal 8 mm G 1/4 BSP 800 bar
    XGE10SR12ED Stud fitting - ø10S x 1/2" BSP - WD seal 10 mm G 1/2 BSP 800 bar
    XGE10SR14ED Stud fitting - ø10S x 1/4" BSP - WD seal 10 mm G 1/4 BSP 630 bar
    XGE10SRED Stud fitting - ø10S x 3/8" BSP - WD seal 10 mm G 3/8 BSP 630 bar
    XGE12SR12ED Stud fitting - ø12S x 1/2" BSP - WD seal 12 mm G 1/2 BSP 630 bar
    XGE12SR14ED Stud fitting - ø12S x 1/4" BSP - WD seal 12 mm G 1/4 BSP 630 bar
    XGE12SR1ED Adapter 12S, G1'' ED 12 mm G 1 BSP 630 bar
    XGE12SR34ED Stud fitting - ø12S x 3/4" BSP - WD seal 12 mm
    XGE12SRED Stud fitting - ø12S x 3/8" BSP - WD seal 12 mm G 3/8 BSP 630 bar
    XGE14SR34ED Adapter 14S, G3/4'' ED 14 mm G 3/4 BSP 630 bar
    XGE14SR38ED Stud fitting - ø14S x 3/8" BSP - WD seal 14 mm G 3/8 BSP 630 bar
    XGE14SRED Stud fitting - ø14S x 1/2" BSP - WD seal 14 mm G 1/2 BSP 630 bar
    XGE16SR14ED Adapter 16S, G1/4'' ED 16 mm G 1/4 BSP 630 bar
    XGE16SR1ED Adapter 16S, G1'' ED 16 mm G 1 BSP 630 bar
    XGE16SR34ED Stud fitting - ø16S x 3/4" BSP - WD seal 16 mm G 3/4 BSP 630 bar
    XGE16SR38ED Stud fitting - ø16S x 3/8" BSP - WD seal 16 mm G 3/8 BSP 630 bar
    XGE16SRED Stud fitting - ø16S x 1/2" BSP - WD seal 16 mm G 1/2 BSP 630 bar
    XGE20SR112ED Stud fitting - ø20S x 1.1/2" BSP - WD seal 20 mm G 1.1/2 BSP 400 bar
    XGE20SR114ED Adapter 20S, G1.1/4'' ED 20 mm G 1.1/4 BSP 160 bar
    XGE20SR12ED Stud fitting - ø20S x 1/2" BSP - WD seal 20 mm G 1/2 BSP 400 bar
    XGE20SR1ED Stud fitting - ø20S x 1" BSP - WD seal 20 mm G 1 BSP 400 bar
    XGE20SRED Stud fitting - ø20S x 3/4" BSP - WD seal 20 mm G 3/4 BSP 400 bar
    XGE25SR112ED Stud fitting - ø25S x 1.1/2" BSP - WD seal 25 mm G 1.1/2 BSP 400 bar
    XGE25SR114ED Stud fitting - ø25S x 1.1/4" BSP - WD seal 25 mm G 1.1/4 BSP 400 bar
    XGE25SR12ED Stud fitting - ø25S 1/2" BSP - WD seal 25 mm G 1/2 BSP 400 bar
    XGE25SR34ED Stud fitting - ø16S x 3/4" BSP - WD seal 16 mm
    XGE25SRED Stud fitting - ø25S x 1" BSP - WD seal 25 mm G 1 BSP 400 bar
    XGE30SR112ED Stud fitting - ø30S x 1.1/2" BSP - WD seal 30 mm G 1.1/2 BSP 400 bar
    XGE30SR1ED Stud fitting - ø30S x 1" BSP - WD seal 30 mm G 1 BSP 400 bar
    XGE30SR2ED Adapter 30S-G2 ED 30 mm G 2 BSP
    XGE30SR34ED Stud fitting - ø30S x 3/4" BSP - WD seal 30 mm G 3/4 BSP 400 bar
    XGE30SRED Stud fitting - ø30S x 1.1/4" BSP - WD seal 30 mm G 1.1/4 BSP 400 bar
    XGE38SR114ED Stud fitting - ø38S x 1.1/4" BSP - WD seal 38 mm G 1.1/4 BSP 400 bar
    XGE38SR1ED Stud fitting - ø38S x 1" BSP - WD seal 38 mm G 1 BSP 400 bar
    XGE38SR2ED Adapter 38S-G2 ED 38 mm G 2 BSP 400 bar
    XGE38SR34ED Adapter 38S, G3/4'' ED 38 mm G 3/4 BSP 400 bar
    XGE38SRED Stud fitting - ø38S x 1.1/2" BSP - WD seal 38 mm G 1.1/2 BSP 400 bar
