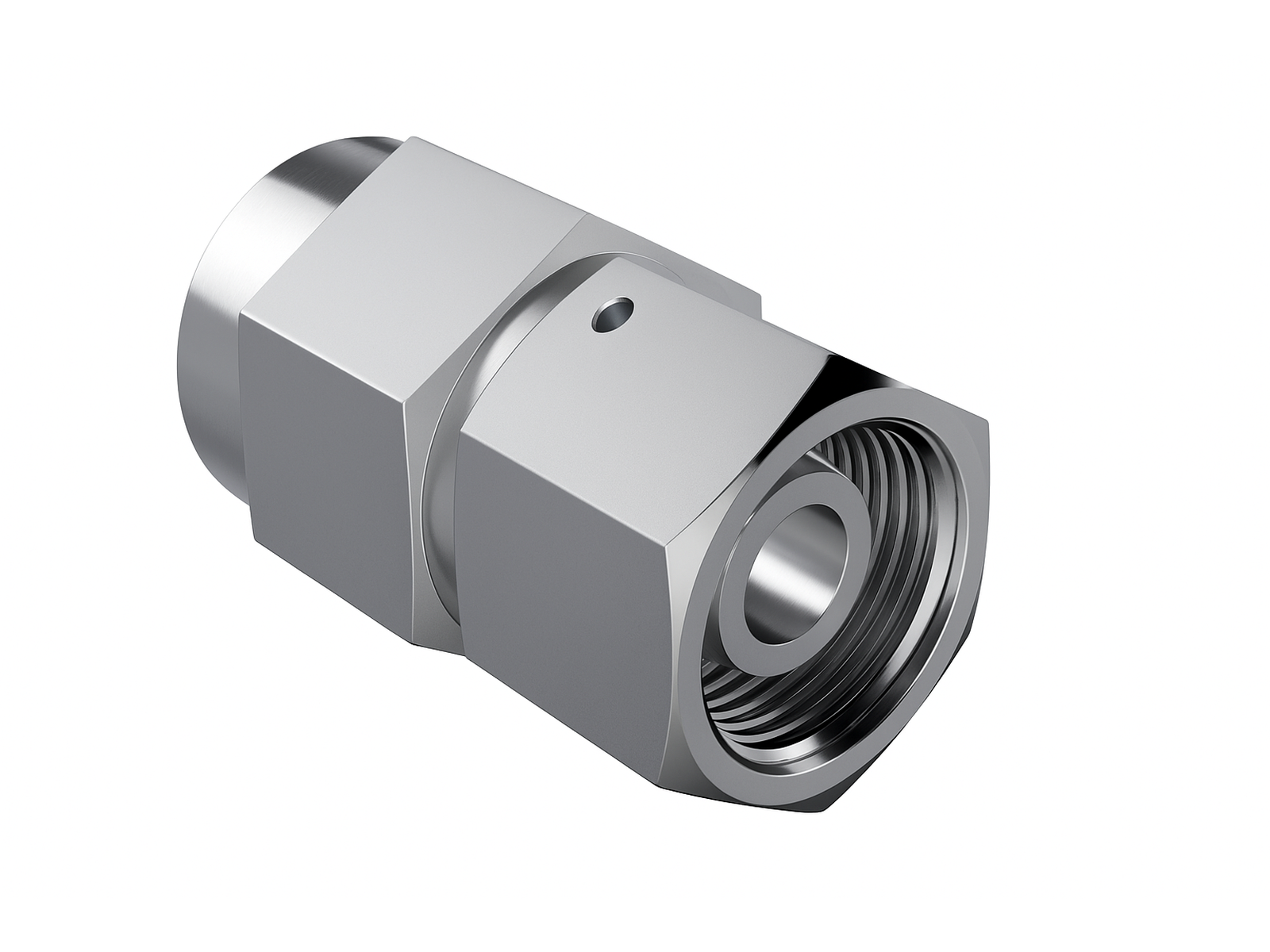

Pressure gauge fitting - L-series - DIN female O-ring seal x BSPP female stainless - VO-LDKO/71 / MAVE-L-SY

Manometeradapter Ställbar Inv-G1/4'', Syrafast

Manometeradapter Ställbar Inv-G1/4'', Syrafast

Manometeradapter Ställbar Inv-G1/4'', Syrafast

Gauge fitting w. taper - ø12L x 1/4" BSP female - oring -AIS

SELECT VARIANT

Partnumber	Description	Thread inner	Thread inner metric	Diameter pipe
MAVE06LR-SY	Manometeradapter Ställbar Inv-G1/4'', Syrafast	G 1/4 BSP	M12x1,5	6 mm
MAVE08LR-SY	Manometeradapter Ställbar Inv-G1/4'', Syrafast	G 1/4 BSP	M14x1,5	8 mm
MAVE10LR-SY	Manometeradapter Ställbar Inv-G1/4'', Syrafast	G 1/4 BSP	M16x1,5	10 mm
MAVE12LR-SY	Gauge fitting w. taper - ø12L x 1/4" BSP female - oring -AIS	G 1/4 BSP	M18x1,5	12 mm

Dimension L3

14.5

Dimension L4

4.5

Dimension S1

Material

Acid-resistant steel

Material quality

1.4571 / AISI316Ti

Pressure max.

315

Safety factor

Sealing material

FKM/FPM (Viton®)

Series

Temperature max.

+200

Temperature min.

-20

Thread T1

G 1/4

Thread inner

G 1/4
