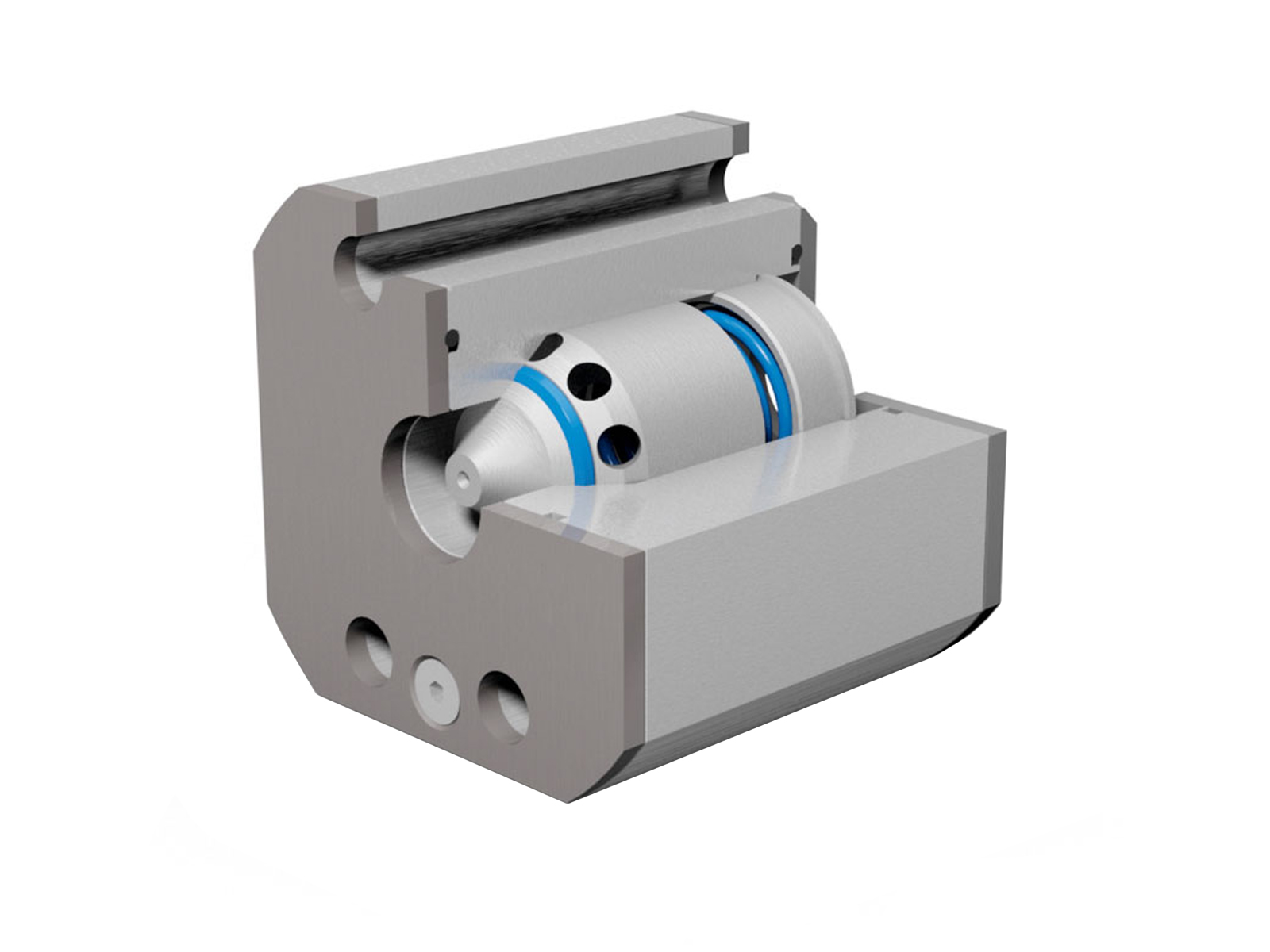

Check valve SAE x SAE - 6000 PSI - RVZDN

Check valve SAE x SAE - 6000 PSI - RVZDN

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Pressure opening Pressure max.
RVZDN20SAE420 Backventil RVZ SAE 6000, 3/4'' 2 bar 420 bar
RVZDN25SAE420 Backventil RVZ SAE 6000, 1'' 2 bar 420 bar
RVZDN32SAE420 Backventil RVZ SAE 6000, 1.1/4'' 2 bar 420 bar
RVZDN40SAE420 Backventil RVZ SAE 6000, 1.1/2'' 2 bar 420 bar
RVZDN50SAE420 Backventil RVZ SAE 6000, 2'' 2 bar 420 bar
Brand Name
MHA Zentgraf
Flange SAE/DIN
6000 PSI
Pressure max.
420
Pressure opening
2
Sealing material
FKM/FPM (Viton®), Polyurethane
Standard ISO
ISO 6162-2
Standard SAE
SAE J518 Code 62
Temperature max.
+100
Temperature min.
-20
