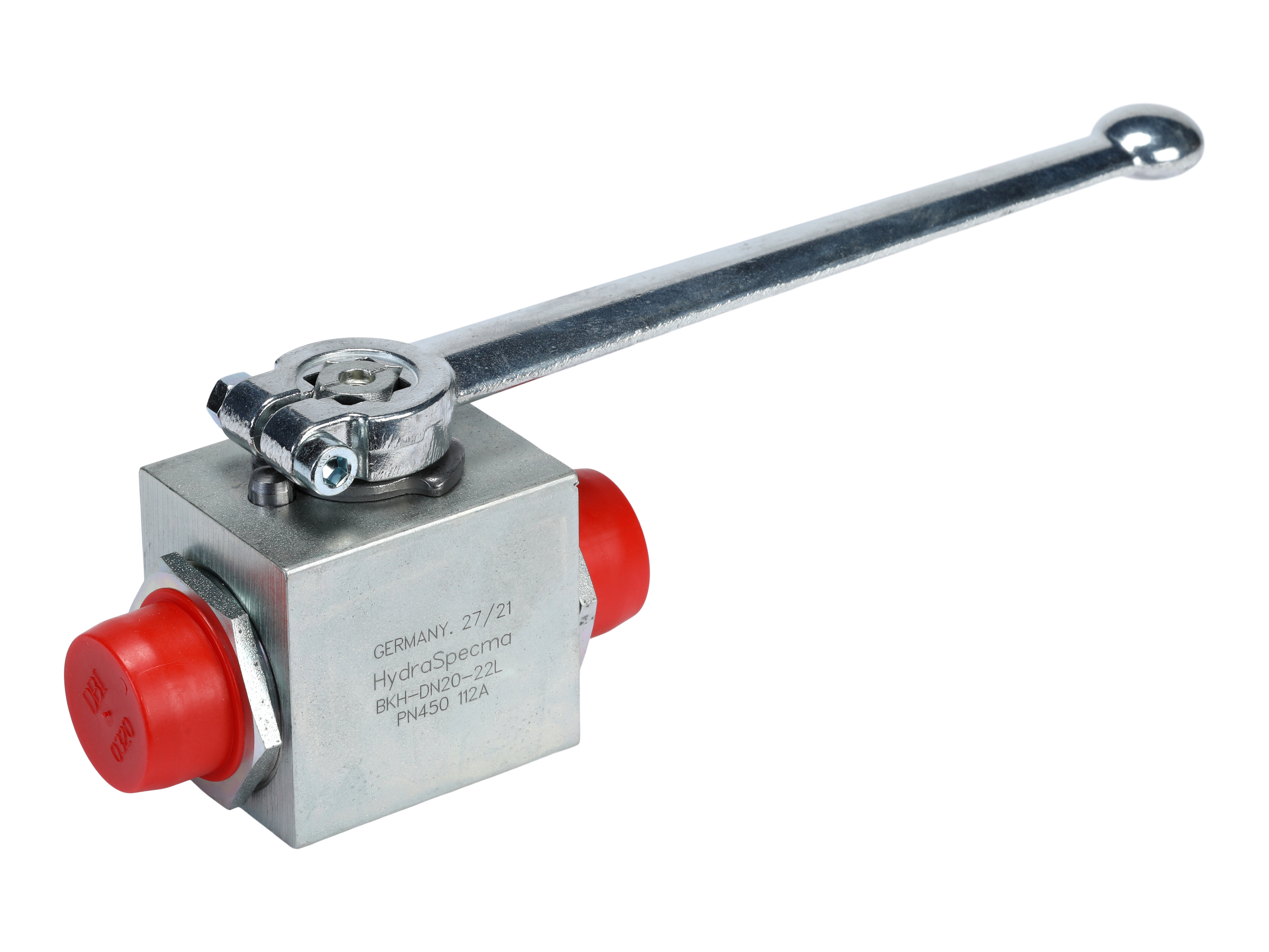

Ball valve 2 way - MM, DIN2353, male x male, MHA - MBKH

SELECT VARIANT
Partnumber Description Diameter pipe Pressure max. Series
BKH-08L Ballvalve Ø08L 8 mm 500 bar L
BKH-08S Kulventil BKH 2-vägs, Utv-M16x1.5, DN4 8S SW9, 500bar 8 mm 500 bar S
BKH-10L Ball valve DN8 male M16x1,5-10L PN 500 bar 10 mm 500 bar L
BKH-10S Ball valve DN6 male M18x1,5-10S PN 500 bar 10 mm 500 bar S
BKH-12L Ball valve DN10 - Ø12L 12 mm 500 bar L
BKH-12S Ball valve DN8 male M20x1,5-12S PN 500 bar 12 mm 500 bar S
BKH-14S Ball valve DN10 male M22x1,5-14S PN 500 bar 14 mm 500 bar S
BKH-15L Ball valve DN13 - Ø15L 15 mm 500 bar L
BKH-16S Ball valve DN13 male M24x1,5-16S PN 500 bar 16 mm 500 bar S
BKH-18L Ball valve DN13 - Ø18L 18 mm 500 bar L
BKH-20S 2-tieventtiili 20 mm 420 bar S
BKH-20S-DN16 2-tieventtiili 20 mm 420 bar S
BKH-22L Ball valve DN 20 - Ø22L 22 mm 420 bar L
BKH-25S Ball valve DN20 male M36x2-25S PN 500 bar 25 mm 500 bar S
BKH-28L Ball valve DN 25 - Ø28L 28 mm 350 bar L
BKH-30S Ball valve DN25 male M42x2-30S PN 500 bar 30 mm 500 bar S
BKH-35L Ball valve DN 25/32 - Ø35L 35 mm 350 bar L
BKH-38S Ball valve DN25/32 male M52x2-38S PN 500 bar 38 mm 500 bar S
BKH-42L Ball valve DN25/40 - Ø42L 42 mm 350 bar L
Brand Name
MHA Zentgraf

Corrosion resistance
300 hours DIN 50021

Material
Steel

Number of ways/positions
2/2

Surface treatment
ZnFe

Temperature max.
+100

Temperature min.
-20
