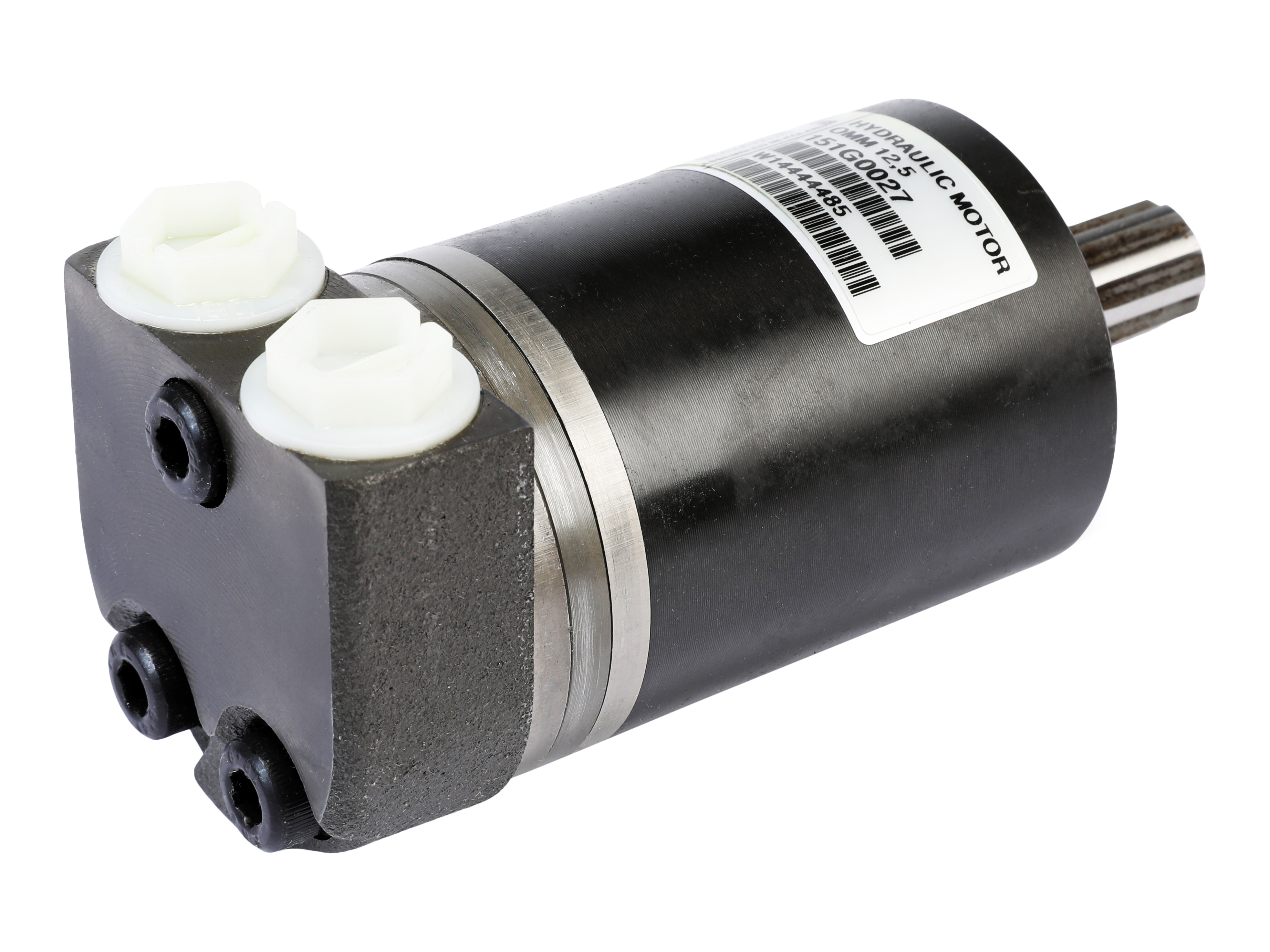

Orbital motors White OMM spline shaft

Orbital motors White OMM spline shaft

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Displacement Shaft diameter Shaft type Continuous power max.
151G0027 OMM 12,5 HYDRAULIC MOTOR 12.5 cm3 16,5 mm Spline 2.4 kW
151G0047 OMM 8,0 HYDRAULIC MOTOR 8.2 cm3 16,5 mm Spline 1.8 kW
Brand Name
White
C
M6
D
G 3/8 BSP
Drainport
G 1/8
E
G 1/8 BSP
Holes circle
45
Mounting flange
OMM 45
Number of mounting holes
3
Number of outer grooves
9
Oil viscocity recommended
20 - 75
Port position
Side
Pressure continous max.
140
Pressure drop continuous max.
100
Pressure intermittent max.
175
Pressure peak max.
225
Recess
31,5
Sealing material
NBR
Shaft diameter
16,5
Shaft spline
B 17x14xe9 DIN 5482
Shaft type
Spline
Working ports
G 3/8
