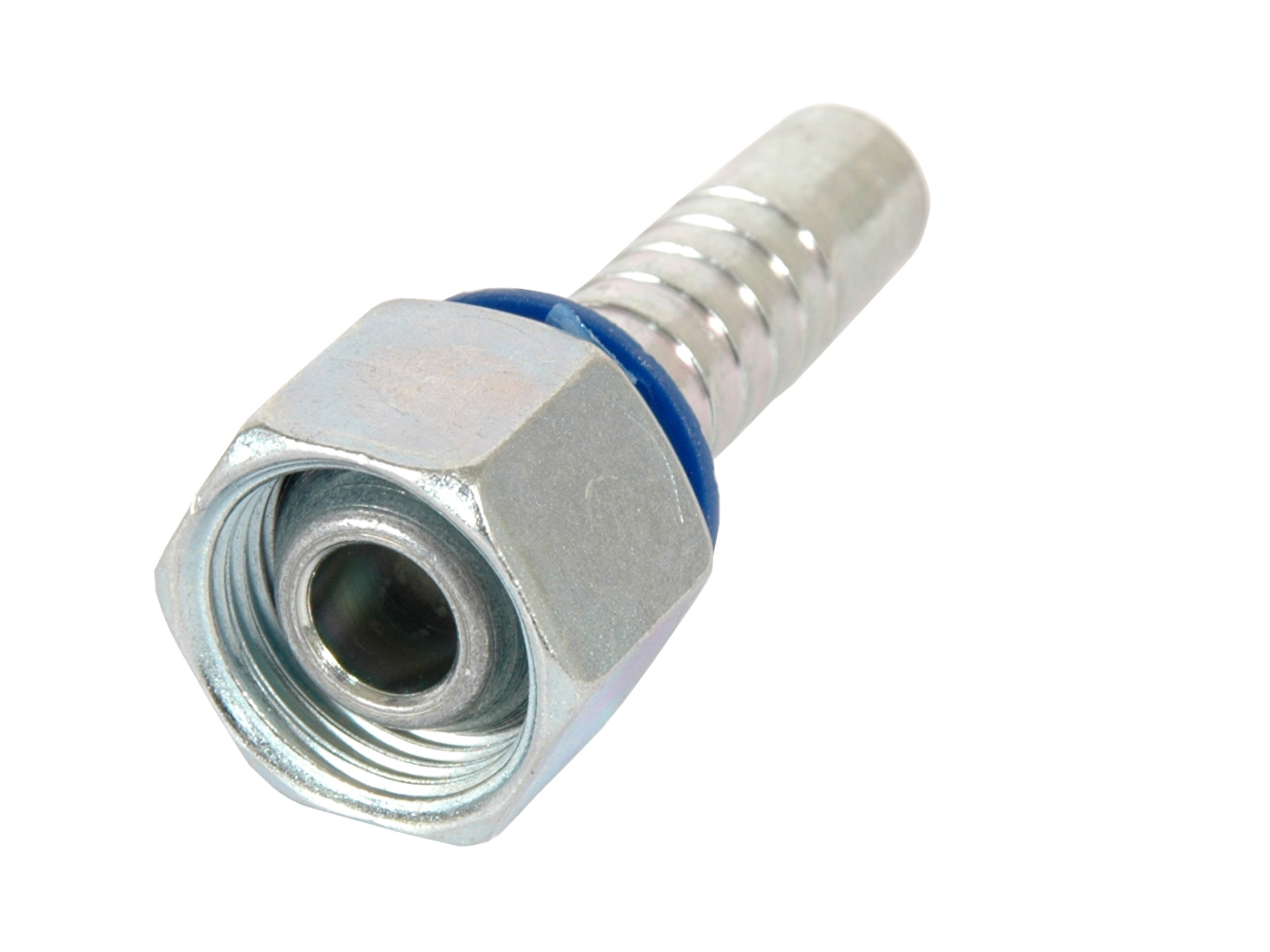

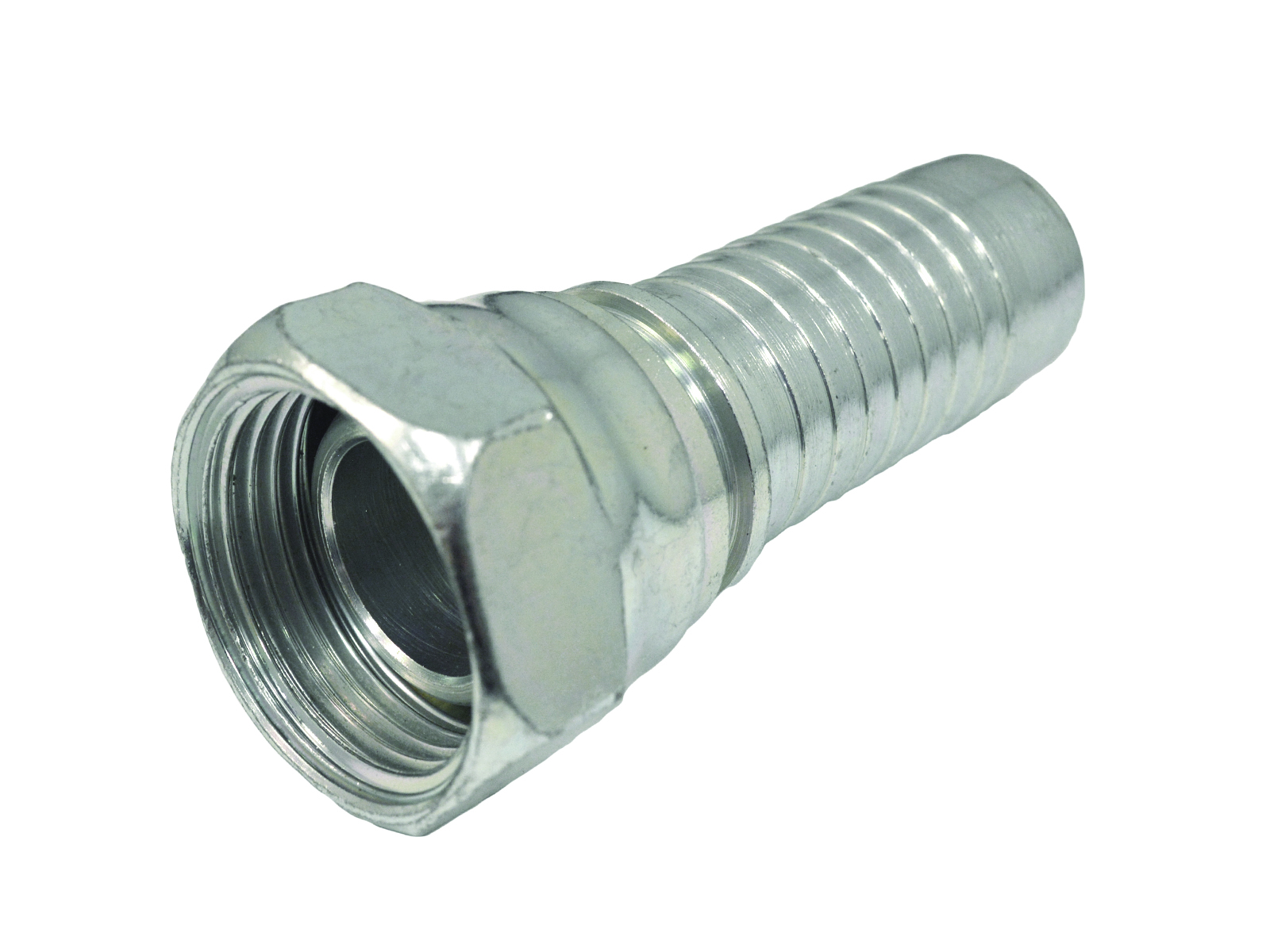

BSP union nut, 60° cone face "NU"

SELECT VARIANT

Partnumber	Description	Thread	Hose size	Hose coupling type
4021-02-02	Presskoppling Rak, Inv-G1/8'', Ø1/8'', Pressad mutter			For separate ferrule
4021-02-03	Presskoppling Rak, Inv-G1/8'', Ø3/16'', Pressad mutter	G 1/8 BSP	3/16 "	For separate ferrule
4021-02-04	Insert 1/4" - 1/8" BSP nut	G 1/8 BSP	1/4 "	For separate ferrule
4021-04-03	Insert 3/16" - 1/4" BSP nut	G 1/4 BSP	3/16 "	For separate ferrule
4021-04-04	Presskoppling Rak, Inv-G1/4'', Ø1/4'', Pressad mutter	G 1/4 BSP	1/4 "	For separate ferrule
4021-04-05	Insert 5/16" - 1/4" BSP nut	G 1/4 BSP	5/16 "	For separate ferrule
4021-04-06	Insert 3/8" - 1/4" BSP nut Lockwire	G 3/8 BSP	1/4 "	For separate ferrule
4021-06-04	Insert 1/4" - 3/8" BSP nut	G 3/8 BSP	1/4 "	For separate ferrule
4021-06-05	Insert 5/16" - 3/8" BSP nut	G 3/8 BSP	5/16 "	For separate ferrule
4021-06-06	Presskoppling Rak, Inv-G3/8'', Ø3/8'', Pressad mutter	G 3/8 BSP	3/8 "	For separate ferrule
4021-06-08	Presskoppling Rak, Inv-G3/8'', Ø1/2'', Pressad mutter	G 3/8 BSP	1/2 "	For separate ferrule
4021-08-04	Insert 1/4" - 1/2" BSP nut	G 1/2 BSP	1/4 "	For separate ferrule
4021-08-05	Insert 5/16" - 1/2" BSP nut	G 1/2 BSP	5/16 "	For separate ferrule
4021-08-06	Insert 3/8" - 1/2" BSP nut	G 1/2 BSP	3/8 "	For separate ferrule
4021-08-08	Presskoppling Rak, Inv-G1/2'', Ø1/2'', Pressad mutter	G 1/2 BSP	1/2 "	For separate ferrule
4021-08-10	Insert 5/8" - 1/2" BSP nut Lockwire	G 1/2 BSP	5/8 "	For separate ferrule
4021-08-12	Presskoppling Rak, Inv-G1/2'', Ø3/4'', Pressad mutter	G 1/2 BSP	3/4 "	For separate ferrule
4021-10-08	Insert 1/2" - 5/8" BSP nut	G 5/8 BSP	1/2 "	For separate ferrule
4021-10-10	Insert 5/8" - 5/8" BSP nut	G 5/8 BSP	5/8 "	For separate ferrule
4021-12-08	Insert 1/2" - 3/4" BSP nut	G 3/4 BSP	1/2 "	For separate ferrule
4021-12-10	Insert 5/82 - 3/4" BSP nut	G 3/4 BSP	5/8 "	For separate ferrule
4021-12-12	Insert 3/4" - 3/4" BSP nut	G 3/4 BSP	3/4 "	For separate ferrule
4021-16-12	Insert 3/4" - 1" BSP nut	G 1 BSP	3/4 "	For separate ferrule
4021-16-16	Insert 1" - 1" BSP nut	G 1 BSP	1 "	For separate ferrule
4021-20-16	Presskoppling Rak, Inv-G1.1/4'', Ø1'', Pressad mutter	G 1.1/4 BSP	1 "	For separate ferrule
4021-20-20	Presskoppling Rak, Inv-G1.1/4'', Ø1.1/4'', Pressad mutter	G 1.1/4 BSP	1.1/4 "	For separate ferrule
4021-24-20	Presskoppling Rak, Inv-G1.1/2'', Ø1.1/4'', Pressad mutter	G 1.1/2 BSP	1.1/4 "	For separate ferrule
4021-24-24	Presskoppling Rak, Inv-G1.1/2'', Ø1.1/2'', Pressad mutter	G 1.1/2 BSP	1.1/2 "	For separate ferrule
4021-32-24	Presskoppling Rak, Inv-G2'', Ø11/2'', Pressad mutter	G 2 BSP	1.1/2 "	For separate ferrule
4021-32-32	Presskoppling Rak, Inv-G2'', Ø2'', Pressad mutter	G 2 BSP	2 "	For separate ferrule
4021-40-32	BSP swivel female DKR	G 2.1/2 BSP	2 "	For separate ferrule
4022-08-06	Insert 3/8" - 1/2" BSP nut	G 1/2 BSP	3/8 "	For separate ferrule
4022-12-16	Insert 1" - 3/4" BSP nut Lockwire	G 3/4 BSP	1 "	For separate ferrule
4022-32-24	Insert 1.1/2" - 2"-12 BSP nut	G 2 BSP	1.1/2 "	For separate ferrule
4023-04-02	Presskoppling Rak, Inv-G1/4'', Ø1/8'', Slip-On	G 1/4 BSP	1/8 "	For separate ferrule
4023-04-03	Presskoppling Rak, Inv-G1/4'', Ø3/16'', Slip-On	G 1/4 BSP	3/16 "	For separate ferrule
4023-04-04	Insert 1/4" - 1/4" BSP nut	G 1/4 BSP	1/4 "	For separate ferrule
4023-06-04	Insert 1/4" - 3/8" BSP nut	G 3/8 BSP	1/4 "	For separate ferrule
4023-06-05	Presskoppling Rak, Inv-G3/8'', Ø5/16'', Slip-On	G 3/8 BSP	5/16 "	For separate ferrule
4023-06-06	Insert 3/8" - 3/8" BSP nut	G 3/8 BSP	3/8 "	For separate ferrule
4023-08-08	Insert 1/2" - 1/2" BSP nut	G 1/2 BSP	1/2 "	For separate ferrule

Specifications
Dimensions and shipping (select variant)

Angle

Hose coupling type

For separate ferrule

Material

Steel

Product information

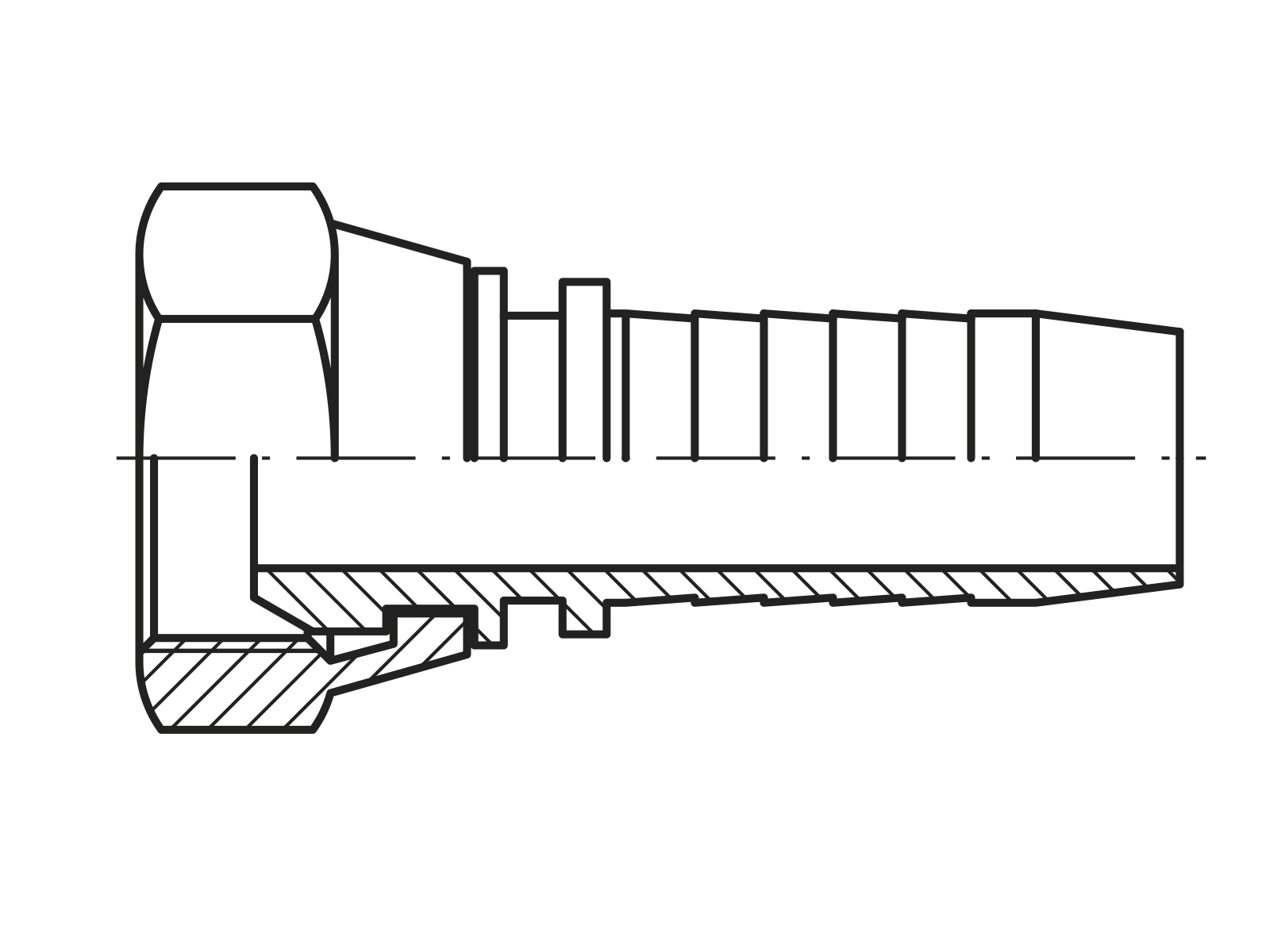

Measure sketch (select variant)
