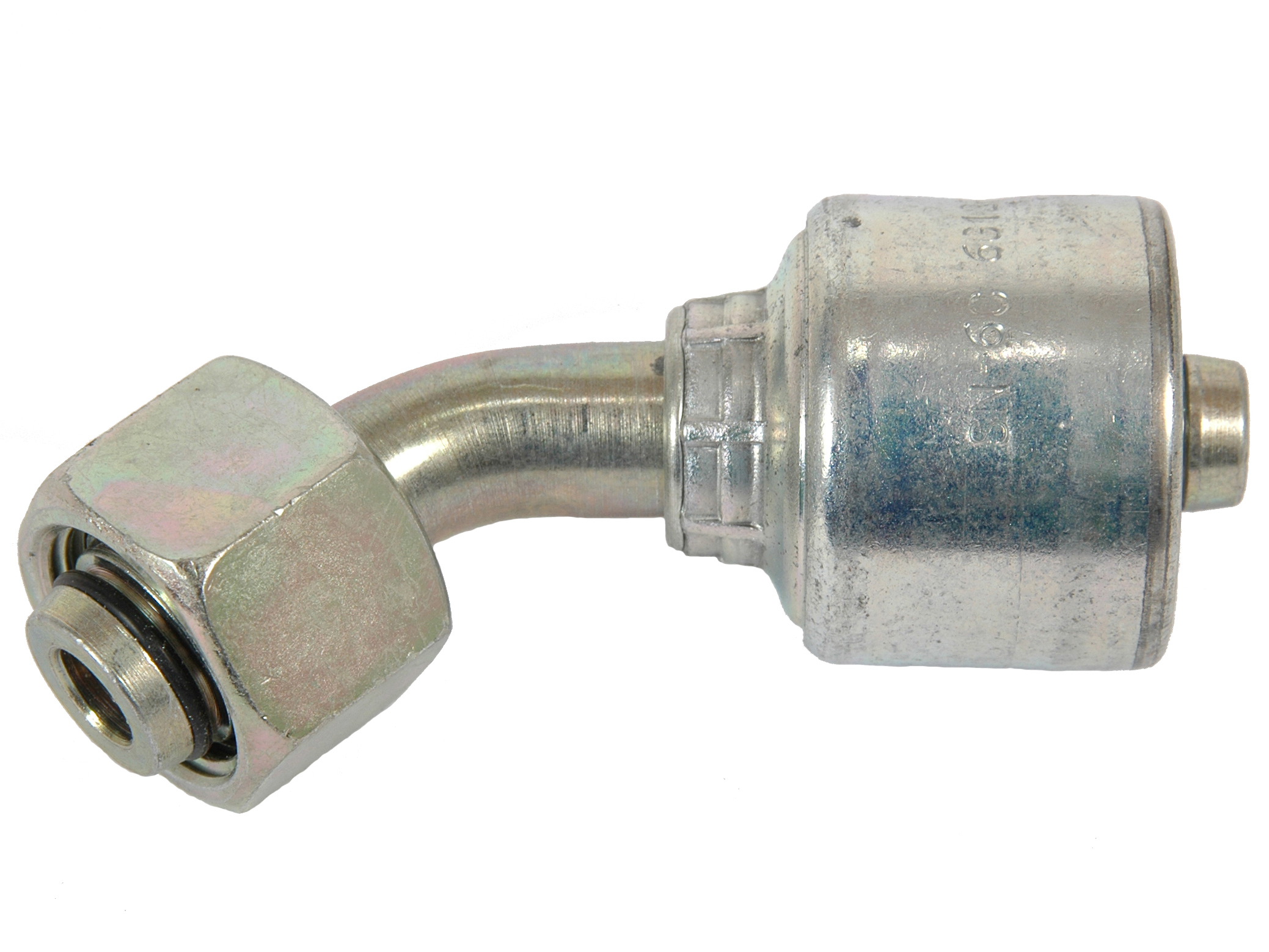

Metric union nut, 24° cone face, 45°, LIGHT (FDLORX45 - RO45)

SELECT VARIANT
Partnumber Description Hose size Angle Hose coupling type
04G06FDLORX45 Coupling 1/4, M12x1,5 fem. 06L 4G-6FDLORX45 Gates MegaCrimp 1/4 " 45 ° With fixed ferrule
04G08FDLORX45 Coupling 1/4, M14x1,5 fem. 08L 4G-8FDLORX45 Gates MegaCrimp 1/4 " 45 ° With fixed ferrule
04G10FDLORX45 Coupling 1/4, M16x1,5 fem. 10L 4G-10FDLORX45 Gates MegaCrimp 1/4 " 45 ° With fixed ferrule
04G12FDLORX45 Coupling 1/4, M18x1,5 fem. 12L 4G-12FDLORX45 Gates MegaCrimp 1/4 " 45 ° With fixed ferrule
05G10FDLORX45 Coupling 5/16, M16x1,5 fem.10L 5G-10FDLORX45 Gates MegaCrimp 5/16 " 45 ° With fixed ferrule
06G10FDLORX45 Coupling 3/8, M16x1,5 fem. 10L 6G-10FDLORX45 Gates MegaCrimp 3/8 " 45 ° With fixed ferrule
06G12FDLORX45 Coupling 3/8, M18x1,5 fem. 12L 6G-12FDLORX45 Gates MegaCrimp 3/8 " 45 ° With fixed ferrule
06G15FDLORX45 Coupling 3/8, M22x1,5 fem. 15L 6G-15FDLORX45 Gates MegaCrimp 3/8 " 45 ° With fixed ferrule
08G15FDLORX45 Coupling 1/2, M22x1,5 fem. 15L 8G-15FDLORX45 Gates MegaCrimp 1/2 " 45 ° With fixed ferrule
08G18FDLORX45 Coupling 1/2, M26x1,5 fem. 18L 8G-18FDLORX45 Gates MegaCrimp 1/2 " 45 ° With fixed ferrule
10G18FDLORX45 Coupling 5/8, M26x1,5 fem. 18L 10G-18FDLORX45 Gates MegaCrim 5/8 " 45 ° With fixed ferrule
12G20FDHORX45 Coupling 3/4, M30x2 fem. 20S 12G-20FDHORX45 Gates MegaCrim 3/4 " 45 ° With fixed ferrule
12G22FDLORX45 Coupling 3/4, M30x2 fem. 22L 12G-22FDLORX45 Gates MegaCrim 3/4 " 45 ° With fixed ferrule
12G25FDHORX45 Coupling 3/4, M36x2 fem. 25S 12G-25FDLORX45 Gates MegaCrim 3/4 " 45 ° With fixed ferrule
16G28FDLORX45 Coupling 1 , M36x2 fem. 28L 45 16G-28FDLORX45 Gates MegaCrim 1 " 45 ° With fixed ferrule
20G35FDLORX45 Coupling 1.1/4, M45x2 fem. 35L 20G-35FDLORX45 Gates MegaCrim 1.1/4 " 45 ° With fixed ferrule
Angle
45

Brand Name
Gates

Corrosion resistance
500 hours salt spray ASTM B-117

Hose coupling type
With fixed ferrule

REACH compliant
Yes

RoHs compliant
Yes

Sealing material
NBR

Surface treatment
TuffCoat™

Temperature max.
+100

Temperature min.
-35
