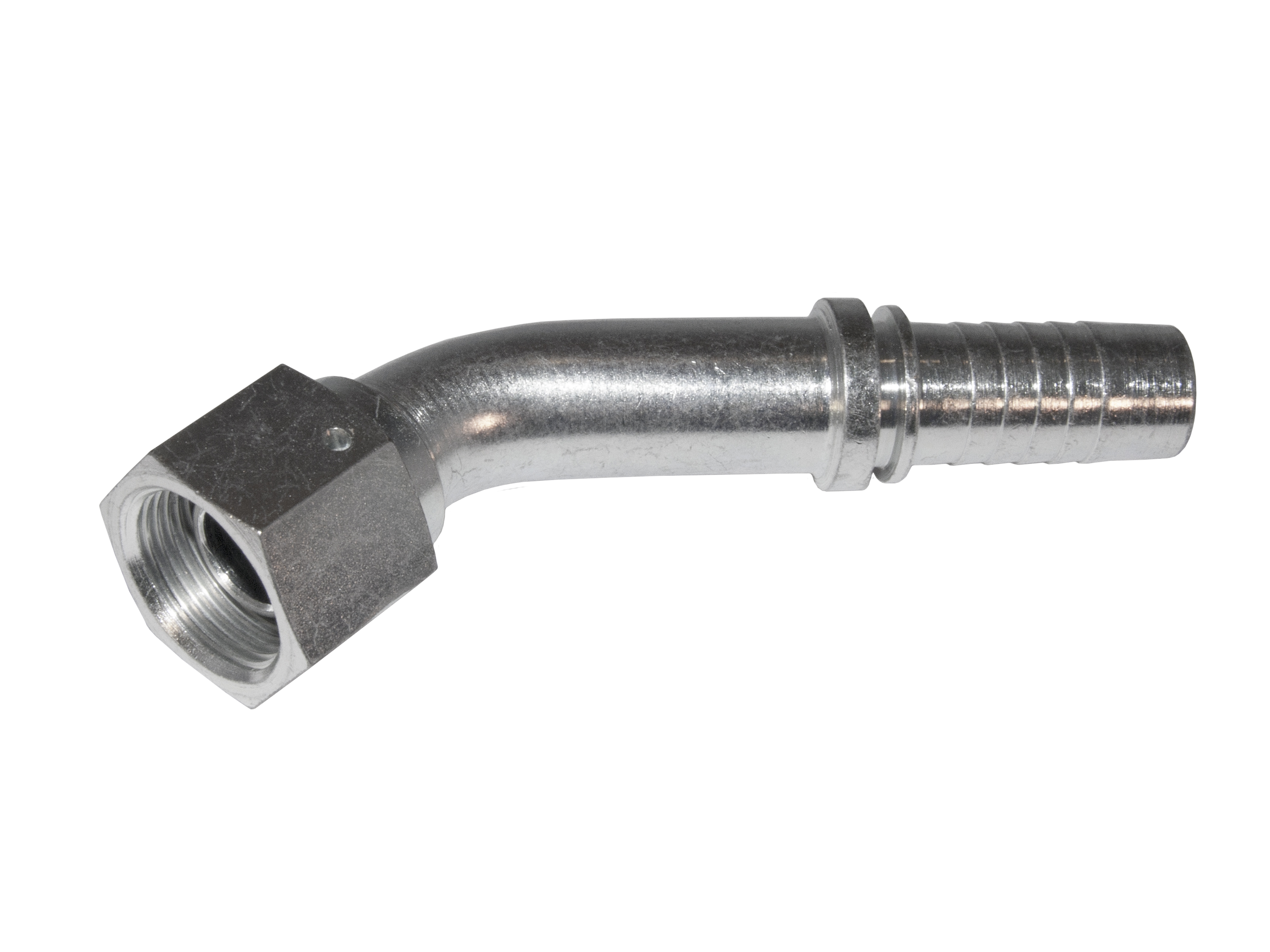

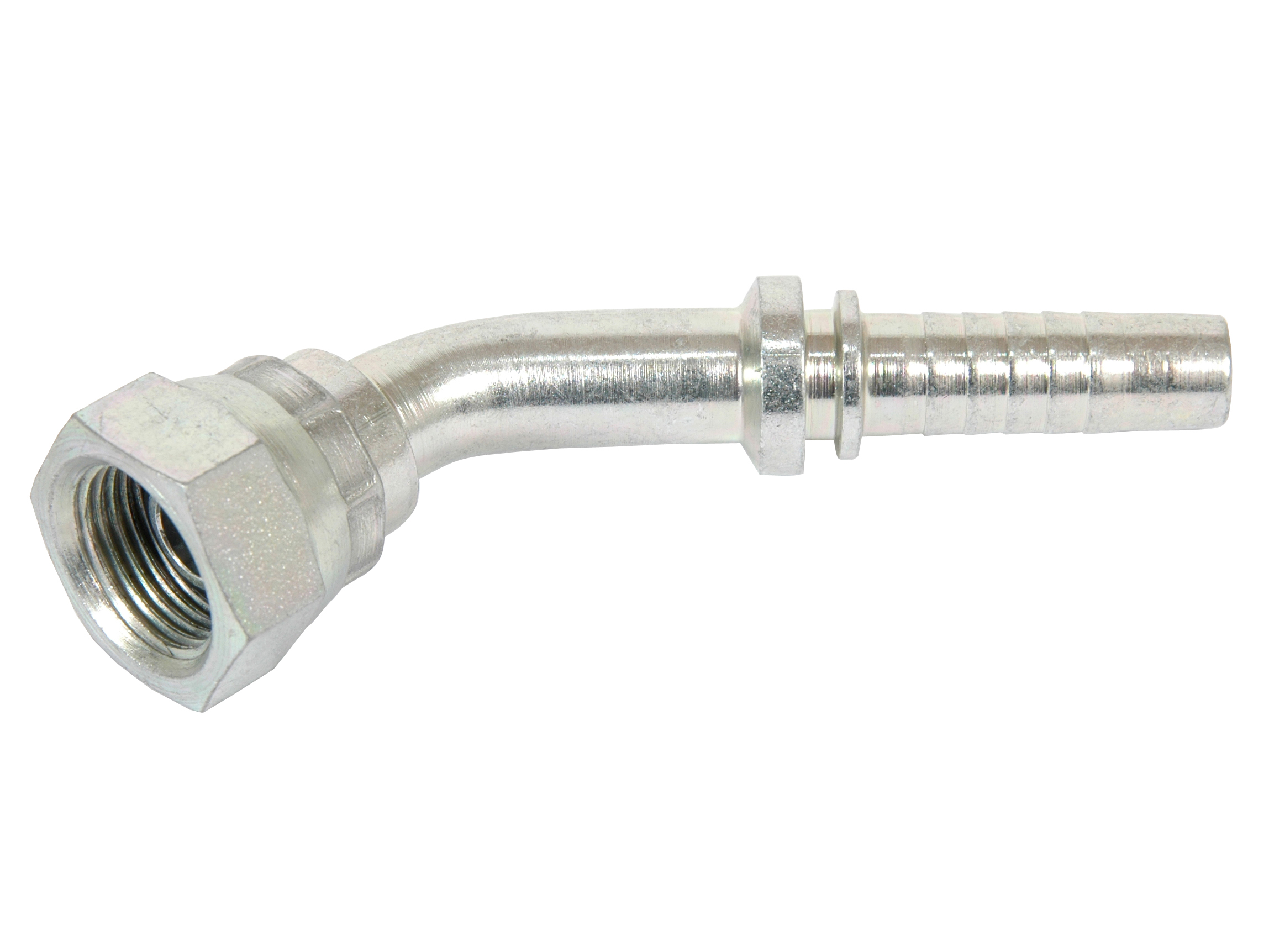

BSP union nut, 60° cone face and o-ring, 45° elbow "NO45"

Presskoppling 45°, Inv-G1/4'', Ø1/4'', Slip-On, O-ring

Presskoppling 45°, Inv-G3/8'', Ø3/8'', Slip-On, O-ring

Presskoppling 45°, Inv-G1/2'', Ø1/2'', Slip-On, O-ring

Presskoppling 45°, Inv-G3/4'', Ø3/4'', Slip-On, O-ring

Insert 3/4" - 3/4" BSP nut 45° O-ring

Insert 1" - 1" BSP nut 45°

SELECT VARIANT

Partnumber	Description	Thread	Hose size	Angle	Hose coupling type
4044-04-04	Presskoppling 45°, Inv-G1/4'', Ø1/4'', Slip-On, O-ring	G 1/4 BSP	1/4 "	45 °	For separate ferrule
4044-06-06	Presskoppling 45°, Inv-G3/8'', Ø3/8'', Slip-On, O-ring	G 3/8 BSP	3/8 "	45 °	For separate ferrule
4044-08-08	Presskoppling 45°, Inv-G1/2'', Ø1/2'', Slip-On, O-ring	G 1/2 BSP	1/2 "	45 °	For separate ferrule
4044-12-12	Presskoppling 45°, Inv-G3/4'', Ø3/4'', Slip-On, O-ring	G 3/4 BSP	3/4 "	45 °	For separate ferrule
4045-12-12	Insert 3/4" - 3/4" BSP nut 45° O-ring	G 3/4 BSP	3/4 "	45 °	For separate ferrule
4045-16-16	Insert 1" - 1" BSP nut 45°	G 1 BSP	1 "	45 °	For separate ferrule

Angle

Brand Name

I.M.M Hydraulics

Hose coupling type

For separate ferrule

Material

Steel

Sealing material

NBR

Surface treatment

Electro-galvanized / White chromatized
