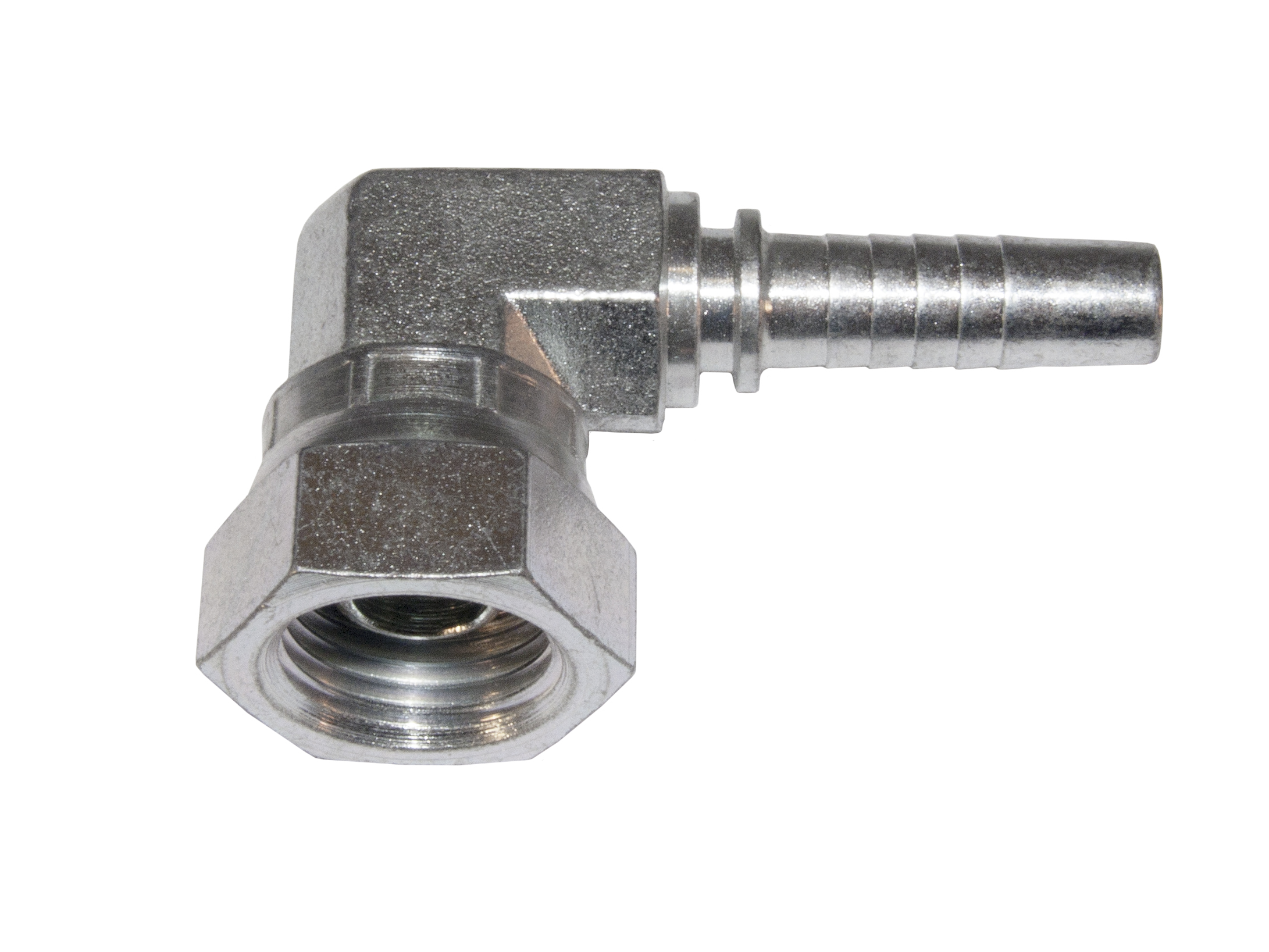

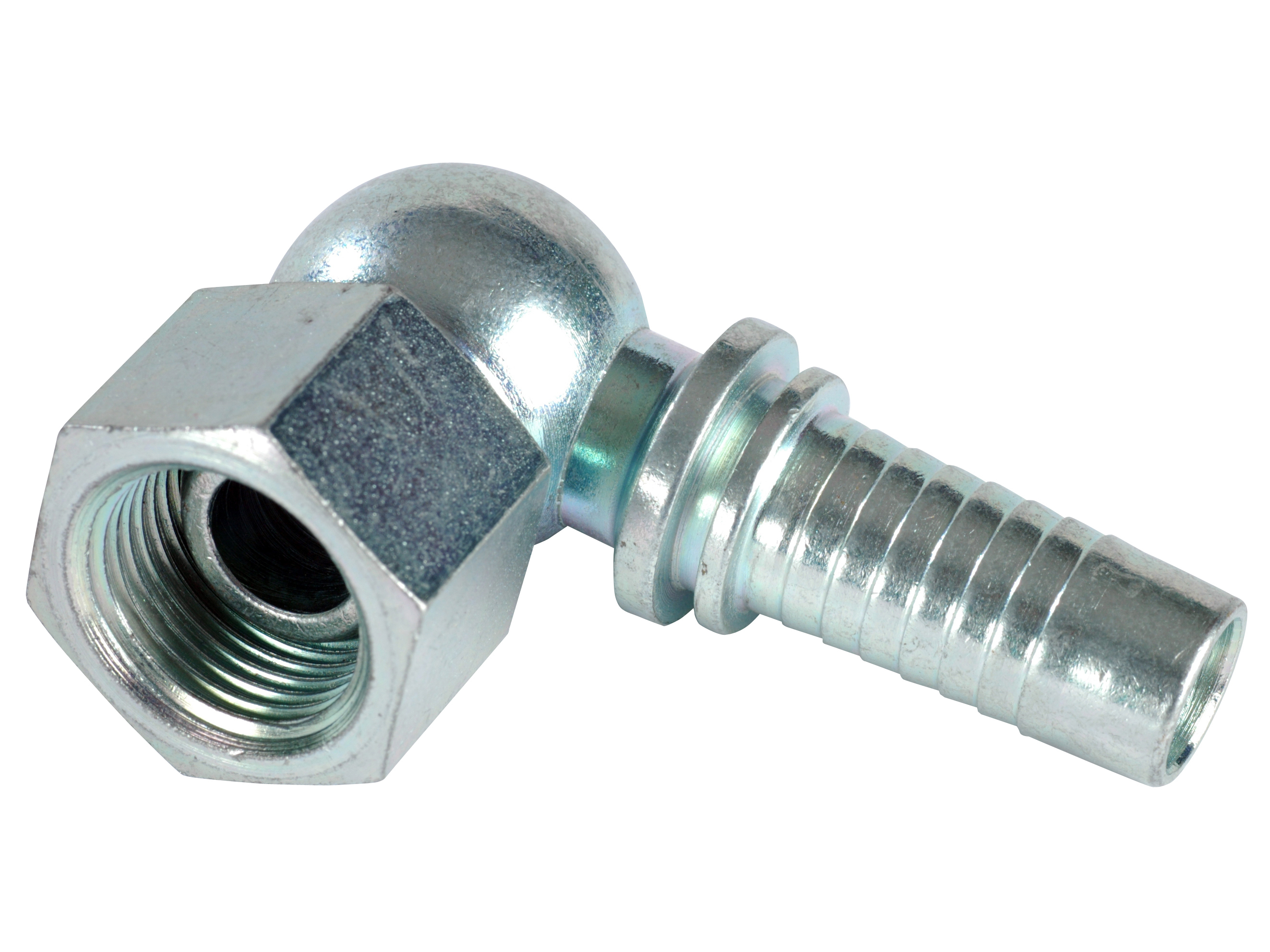

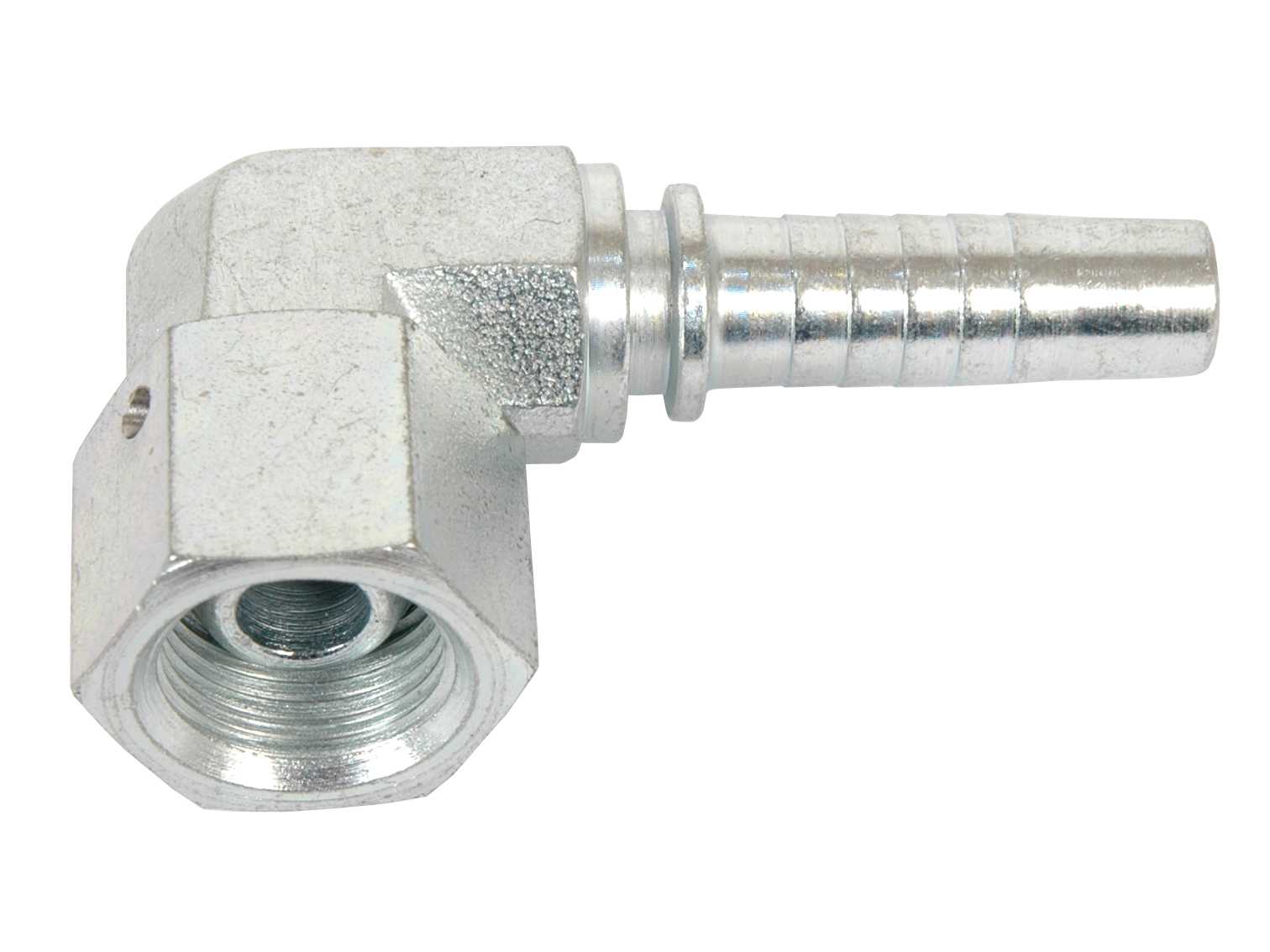

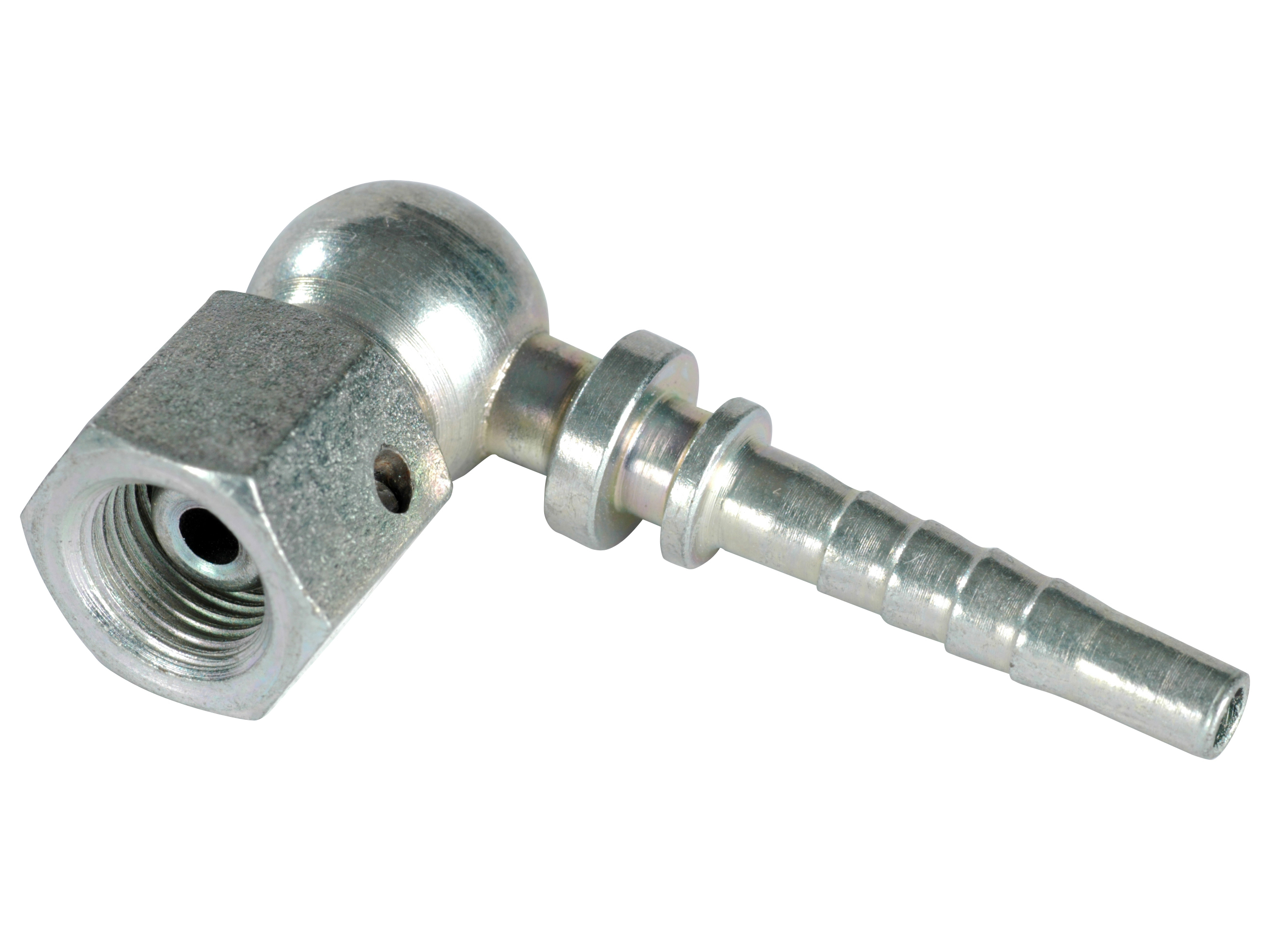

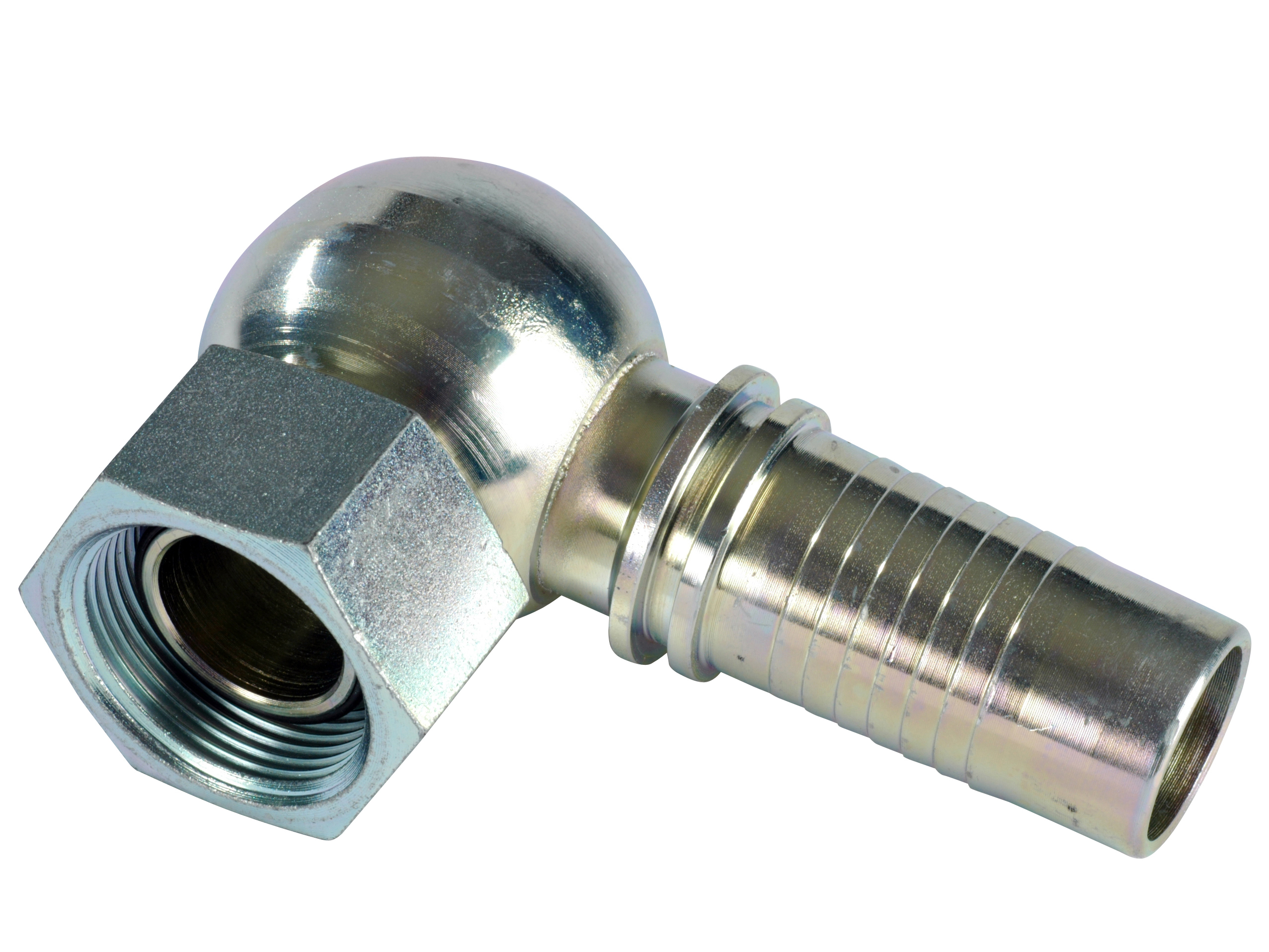

BSP union nut, 60° cone face, 90° elbow, short, "NU90S"

SELECT VARIANT
Partnumber Description Thread Hose size Angle Hose coupling type
4051-02-03 Presskoppling 90K, Inv-G1/8'', Ø3/16'', Pressad mutter G 1/2 BSP 3/16 " 90 ° For separate ferrule
4051-04-04 Presskoppling 90K, Inv-G1/4'', Ø1/4'', Pressad mutter G 1/4 BSP 1/4 " 90 ° For separate ferrule
4051-06-06 Presskoppling 90K, Inv-G3/8'', Ø3/8'', Pressad mutter G 3/8 BSP 3/8 " 90 ° For separate ferrule
4051-06-08 Presskoppling 90K, Inv-G3/8'', Ø1/2'', Pressad mutter G 3/8 BSP 1/2 " 90 ° For separate ferrule
4051-08-06 Presskoppling 90K, Inv-G1/2'', Ø3/8'', Pressad mutter G 1/2 BSP 3/8 " 90 ° For separate ferrule
4051-08-08 Presskoppling 90K, Inv-G1/2'', Ø1/2'', Pressad mutter G 1/2 BSP 1/2 " 90 ° For separate ferrule
4051-10-10 Presskoppling 90K, Inv-G5/8'', Ø5/8'', Pressad mutter G 5/8 BSP 5/8 " 90 ° For separate ferrule
4051-12-10 Presskoppling 90K, Inv-G3/4'', Ø5/8'', Pressad mutter 90 ° For separate ferrule
4052-02-03 Insert 3/16" - 1/8" BSP nut 90S G 1/8 BSP 3/16 " 90 ° For separate ferrule
4052-04-04-S Insert 1/4" - 1/4" BSP nut 90S G 1/4 BSP 1/4 " 90 ° For separate ferrule
4052-06-04-S Insert 1/4" - 3/8" BSP nut 90S G 3/8 BSP 1/4 " 90 ° For separate ferrule
4052-06-05-S Insert 5/16" - 3/8" BSP nut 90S G 3/8 BSP 5/16 " 90 ° For separate ferrule
4052-06-06-S Insert 3/8" - 3/8" BSP nut 90S G 3/8 BSP 3/8 " 90 ° For separate ferrule
4052-08-06-S Insert 3/8" - 1/2" BSP nut 90S G 1/2 BSP 3/8 " 90 ° For separate ferrule
4052-08-08-25 Insert 1/2" - 1/2" BSP nut 90S NW25 G 1/2 BSP 1/2 " 90 ° For separate ferrule
4052-08-08-S Insert 1/2" - 1/2" BSP nut 90S G 1/2 BSP 1/2 " 90 ° For separate ferrule
4052-10-10 Insert 5/8" - 5/8" BSP nut 90S G 5/8 BSP 5/8 " 90 ° For separate ferrule
4052-12-12-S Insert 3/4" - 3/4" BSP nut 90S G 3/4 BSP 3/4 " 90 ° For separate ferrule
4052-16-16-S Insert 1" - 1" BSP nut 90S G 1 BSP 1 " 90 ° For separate ferrule
4052-20-20 Insert 1.1/4" - 1.1/4" BSP nut 90S G 1.1/4 BSP 1.1/4 " 90 ° For separate ferrule
Angle
90

Brand Name
I.M.M Hydraulics

Hose coupling type
For separate ferrule

Material
Steel

Surface treatment
Electro-galvanized / White chromatized
