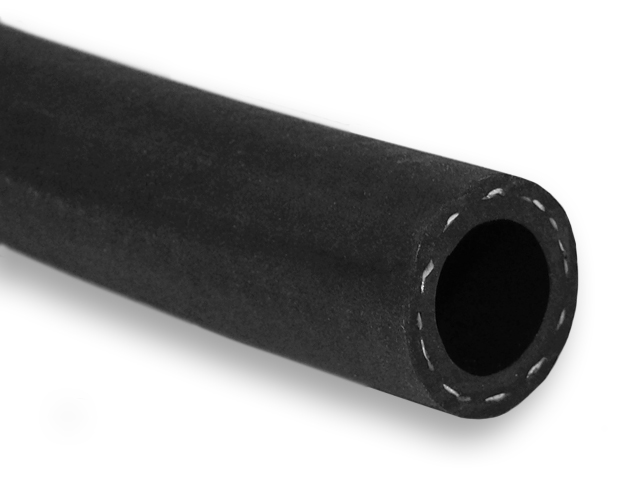

Oil and Diesel low pressure hose - R6

R6-04 (28 Bar)

Oljeslang R6 5/16'' 28 Bar SAE J517C100R6 8.0x14.3

SLANG 149-0105 1,0 M

R6-08

Matalap.hydr.letku SAE 100R6

R6-12

Oljeslang R6 1'' 21 Bar SAE J517C100R6 25.0x34.0

SELECT VARIANT

Partnumber	Description	Hose size	Pressure max.	Pressure burst min.	Bend radius
R6-04-C	R6-04 (28 Bar)	1/4 "	28 bar	110 bar	73 mm
R6-05-C	Oljeslang R6 5/16'' 28 Bar SAE J517C100R6 8.0x14.3	5/16 "	28 bar	110 bar	95 mm
R6-06-C	SLANG 149-0105 1,0 M	3/8 "	28 bar	110 bar	120 mm
R6-08-C	R6-08	1/2 "	28 bar	110 bar	150 mm
R6-10-C	Matalap.hydr.letku SAE 100R6	5/8 "	24 bar	97 bar	190 mm
R6-12-C	R6-12	3/4 "	21 bar	83 bar	230 mm
R6-16-C	Oljeslang R6 1'' 21 Bar SAE J517C100R6 25.0x34.0	1 "	21 bar	83 bar	300 mm

Area of use

Air, Diesel, Grease, Oil, Water

Brand Name

Hydraspecma

Material

NBR

REACH compliant

Yes

RoHs compliant

Yes

Standard SAE

SAE 100R6

Temperature max.

+100

Temperature min.

-30
