    • Elbow adapter 90° MM male x SAE flange 6000psi - 27PHM / 8669

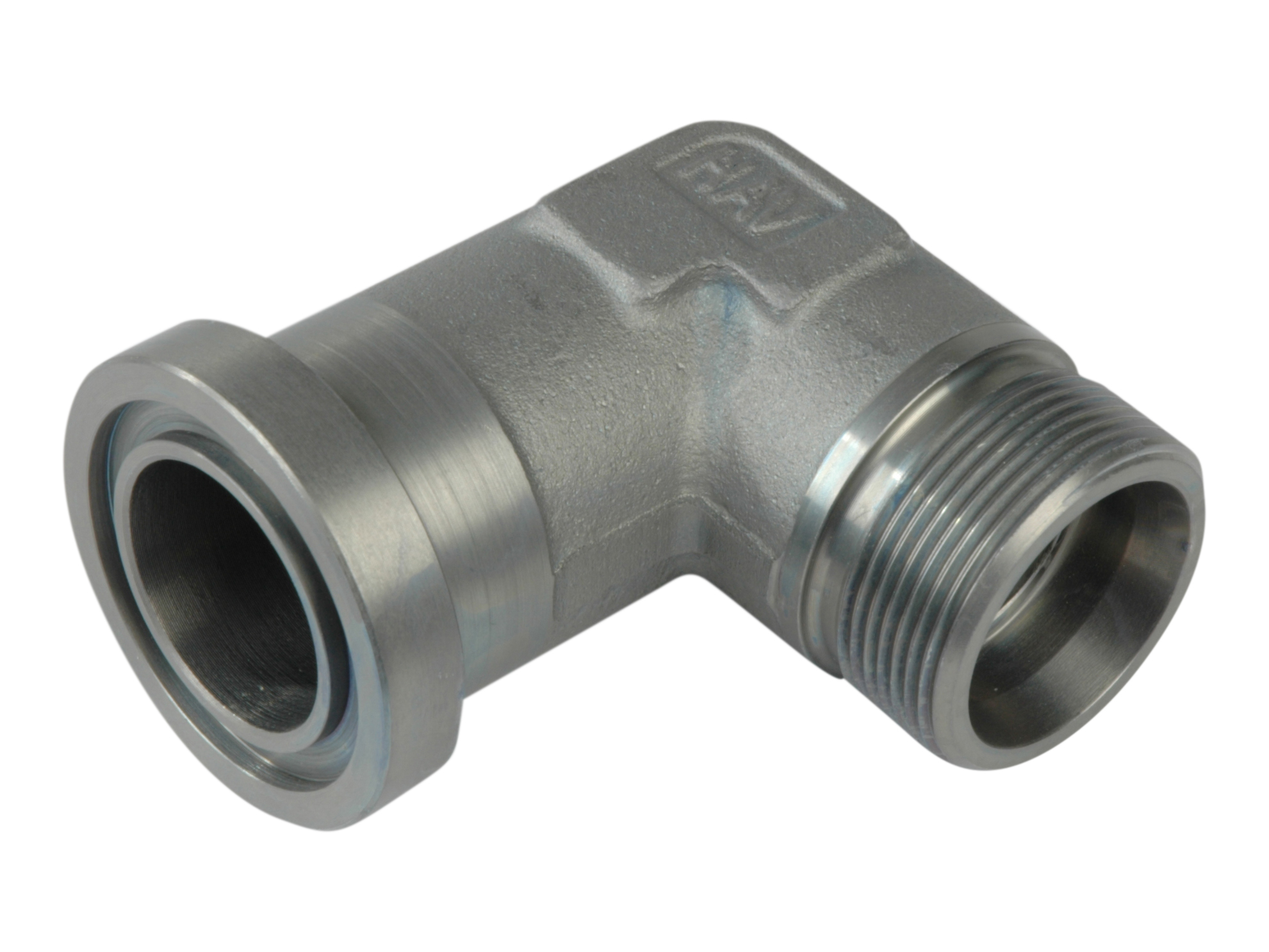

    Elbow adapter 90° MM male x SAE flange 6000psi - 27PHM / 8669

    Välj variant
    VÄLJ VARIANT
    VÄLJ VARIANT
    Artikelnummer Beskrivning Flange SAE/DIN Flange Diameter pipe Thread outer metric
    8669-08-16S Fläns 90gr SAE6000 DIN 6000 PSI 1/2 " 16 mm M24x1,5
    8669-12-16S Fläns 90gr SAE6000 DIN 6000 PSI 3/4 " 16 mm M24x1,5
    8669-12-20S Fläns 90gr SAE6000 DIN 6000 PSI 3/4 " 20 mm M30x2
    8669-12-25S Fläns 90gr SAE6000 DIN 6000 PSI 3/4 " 25 mm M36x2
    8669-16-25S Fläns 90gr SAE6000 DIN 6000 PSI 1 " 25 mm M36x2
    8669-16-30S Fläns 90gr SAE6000 DIN 6000 PSI 1 " 30 mm M42x2
    8669-20-30S Fläns 90gr SAE6000 DIN 6000 PSI 1.1/4 " 30 mm M42x2
    8669-20-38S FLÄNSADAPTER 90K, KOD62 6000 PSI 1.1/4 " 38 mm M52x2
    8669-24-30S Fläns 90gr SAE6000 DIN 6000 PSI 1.1/2 " 30 mm M42x2
    8669-24-38S Fläns 90gr SAE6000 DIN 6000 PSI 1.1/2 " 38 mm M52x2
    Angle
    90
    Brand Name
    Stauff
    Flange SAE/DIN
    6000 PSI
    Material
    Steel
    Series
    S
    Shore
    90
    Standard ISO
    ISO 6162-2
    Standard SAE
    SAE J518 Code 62
