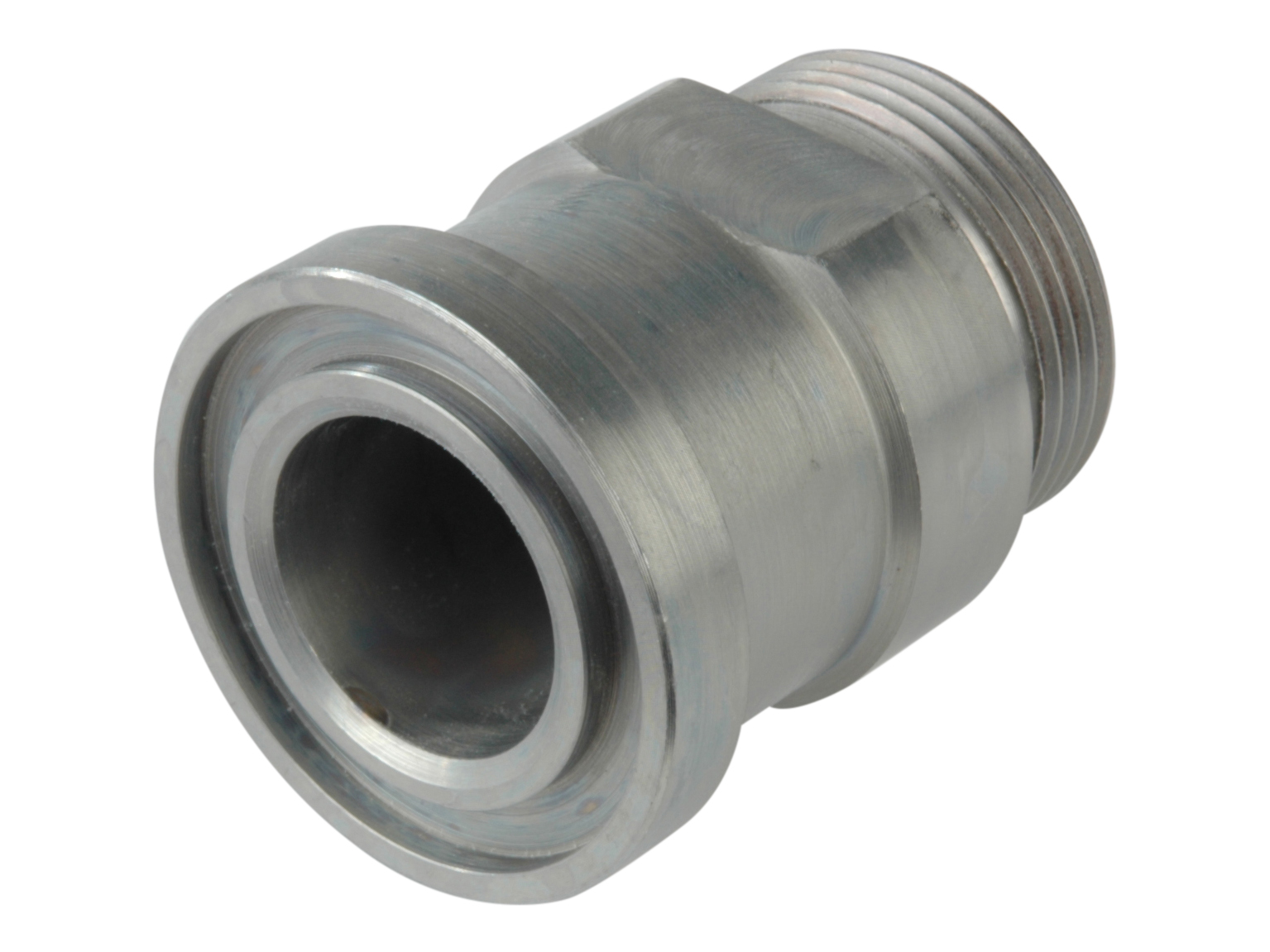

Threaded flange 0° SAE 3000 PSI x DIN2353 MM male - SFCE / 8360

Threaded flange 0° SAE 3000 PSI x DIN2353 MM male - SFCE / 8360

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Flange SAE/DIN Flange Diameter pipe Thread outer metric
8360-16-25S Fläns Rak SAE3000 DIN 3000 PSI 1 " 25 mm M36x2
8360-16-28L Fläns Rak SAE3000 DIN 3000 PSI 1 " 28 mm M36x2
8360-16-30S Fläns Rak SAE3000 DIN 3000 PSI 1 " 30 mm M42x2
8360-20-25S Fläns Rak SAE3000 DIN 3000 PSI 1.1/4 " 25 mm M36x2
8360-20-30S Fläns Rak SAE3000 DIN 3000 PSI 1.1/4 " 30 mm M42x2
8360-20-38S Fläns Rak SAE3000 DIN 3000 PSI 1.1/4 " 38 mm M52x2
Angle
0
Brand Name
Stauff
Flange SAE/DIN
3000 PSI
Material
Steel
Shore
90
Standard ISO
ISO 6162-1
Standard SAE
SAE J518 Code 61
