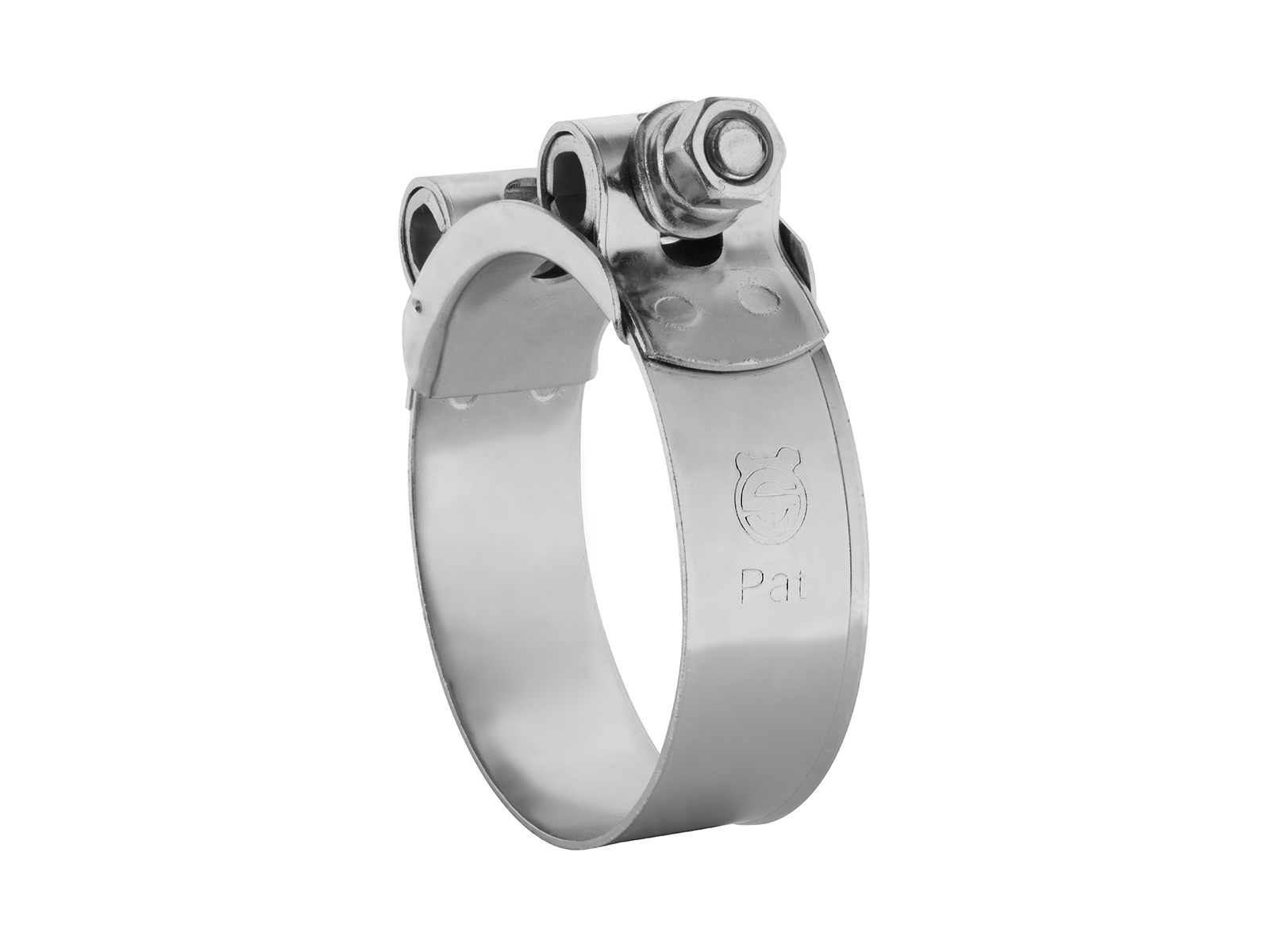

Clamps Superclamp W1

Clamps Superclamp W1

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Width Diameter min. Diameter max.
S1-104112 Slangklamma Superclamp W1 24 mm 104 mm 112 mm
S1-113121 Slangklamma Superclamp W1 24 mm 113 mm 121 mm
S1-122130 Slangklamma Superclamp W1 24 mm 122 mm 130 mm
S1-131139 Slangklamma Superclamp W1 26 mm 131 mm 139 mm
S1-140148 Slangklamma Superclamp W1 26 mm 140 mm 148 mm
S1-149161 Slangklamma Superclamp W1 26 mm 149 mm 161 mm
S1-162174 Slangklamma Superclamp W1 26 mm 162 mm 174 mm
S1-1719 Super Clamp W1 17-19 mm 18 mm 17 mm 19 mm
S1-175187 Slangklamma Superclamp W1 26 mm 175 mm 187 mm
S1-188200 Slangklamma Superclamp W1 26 mm 188 mm 200 mm
S1-201213 Slangklamma Superclamp W1 26 mm 201 mm 213 mm
S1-2022 Slangklamma Superclamp W1 18 mm 20 mm 22 mm
S1-214226 Slangklamma Superclamp W1 26 mm 214 mm 226 mm
S1-227239 Slangklamma Superclamp W1 26 mm 227 mm 239 mm
S1-2325 Super Clamp W1 23-25 mm 18 mm 23 mm 25 mm
S1-240252 Slangklamma Superclamp W1 26 mm 240 mm 252 mm
S1-2628 Slangklamma Superclamp W1 18 mm 26 mm 28 mm
S1-2931 Slangklamma Superclamp W1 20 mm 29 mm 31 mm
S1-3235 Slangklamma Superclamp W1 20 mm 32 mm 35 mm
S1-3639 Slangklamma Superclamp W1 20 mm 36 mm 39 mm
S1-4043 Slangklamma Superclamp W1 20 mm 40 mm 43 mm
S1-4447 Slangklamma Superclamp W1 22 mm 44 mm 47 mm
S1-4851 Slangklamma Superclamp W1 22 mm 48 mm 51 mm
S1-5255 Slangklamma Superclamp W1 22 mm 52 mm 55 mm
S1-5659 Slangklamma Superclamp W1 22 mm 56 mm 59 mm
S1-6063 Slangklamma Superclamp W1 22 mm 60 mm 63 mm
S1-6467 Slangklamma Superclamp W1 22 mm 64 mm 67 mm
S1-6873 Slangklamma Superclamp W1 24 mm 68 mm 73 mm
S1-7479 Slangklamma Superclamp W1 24 mm 74 mm 79 mm
S1-8085 Slangklamma Superclamp W1 24 mm 80 mm 85 mm
S1-8691 Slangklamma Superclamp W1 24 mm 86 mm 91 mm
S1-9297 Slangklamma Superclamp W1 24 mm 92 mm 97 mm
S1-98103 Slangklamma Superclamp W1 24 mm 98 mm 103 mm
Brand Name
Mikalor
Corrosion resistance
72 hours salt spray ASTM B-117
Material
Steel
Material quality
St. 8.8
Material quality band
1.0401
Material quality bolt
1.0213
Material quality housing
1.0333
REACH compliant
Yes
RoHs compliant
Yes
Standard DIN
DIN 3017-3
Surface treatment
Zinc-plated
