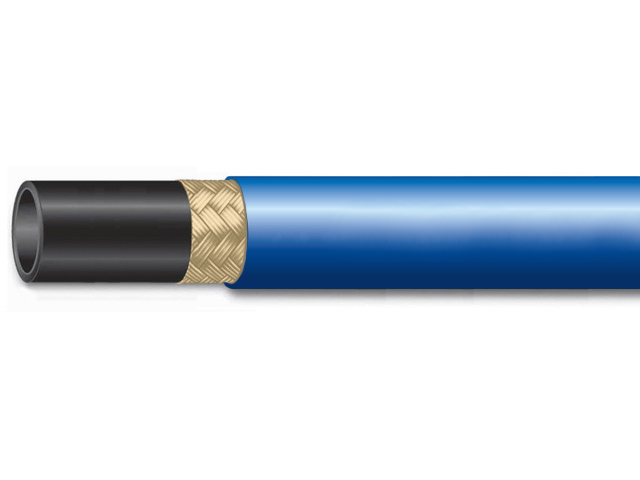

TFDH011B hydraulic hoses

SELECT VARIANT

Partnumber	Description	Hose size	Pressure max.	Bend radius	Temperature max.
911-04	Hydraulslang HyCelsius 1/4, 225 Bar	1/4 "	225 bar	100 mm	+135 °C
911-06	Hydraulslang HyCelsius 3/8, 180 Bar	3/8 "	180 bar	130 mm	+135 °C
911-08	Hydraulslang HyCelsius 1/2, 160 Bar	1/2 "	160 bar	180 mm	+135 °C
911-10	Hydraulslang HyCelsius 5/8, 130 Bar	5/8 "	130 bar	200 mm	+135 °C
911-12	3/4" High-pressure cleaner hose Hy Celsius - 105 bar - 1SN	3/4 "	105 bar	240 mm	+135 °C
911-16	Hydraulslang HyCelsius 1tum, 88 Bar	1 "	88 bar	300 mm	+135 °C
911-20	Hydraulslang HyCelsius 1.1/4, 63 Bar	1.1/4 "	63 bar	420 mm	+135 °C
911-24	Hydraulslang HyCelsius 1.1/2, 50 bar	1.1/2 "	50 bar	500 mm	+135 °C
911-32	1SN EN853 HT Sininen	2 "	40 bar	630 mm	+135 °C

Area of use

Air, Glycol, Grease, Oil, Water

Brand Name

I.M.M Hydraulics

Color

Blue

Hose type

1SN

REACH compliant

Yes

RoHs compliant

Yes

Standard EN

EN 853 1SN

Standard ISO

ISO 1436 1SN R1ATS

Standard SAE

SAE 100R1AT

Temperature intermittent max.

+140

Temperature max.

+135

Temperature min.

-40
