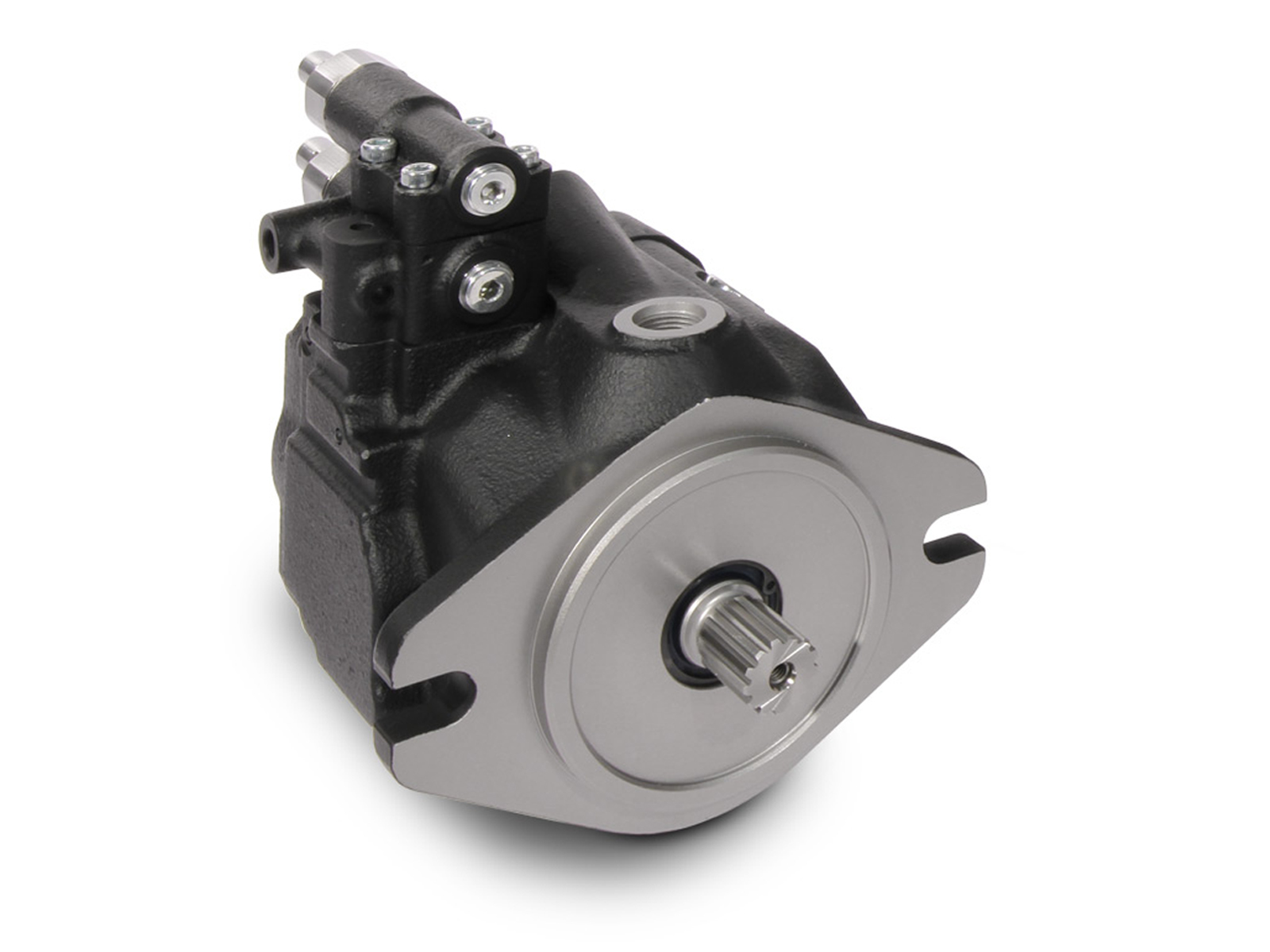

Piston pump, Casappa MVP

SELECT VARIANT

	Partnumber	Description	Displacement	Rotational speed max.	Pressure continous max.	Rotation direction
	MVP30.25D-04S5-LMD-MB-V-LS2-E	Pump Casappa 25cc variabel LS	25 cm3	2900 rpm	280 bar	Right (CW)
	MVP30.34D-04S5-LS0-G-AS5-04	Pump Casappa 34cc, variabel LS	34 cm3	2900 rpm	280 bar	Right (CW)

Brand Name

Casappa

Contamination level max.

18/16/13 - ISO 4406

Control

Load sensing

Flange inlet

1.1/4

Flange outlet

3/4

Holes circle

14.5

Mounting flange

SAE-B2

Number of mounting holes

Oil viscocity recommended

15 - 35

Port position

Side

Pressure continous max.

280

Pressure intermittent max.

350

Rotation direction

Right (CW)

Rotational speed max.

2900

Shaft diameter

22,22

Shaft spline

13T 16/32 SAE-B

Shaft type

Spline
