    • Gear pump gr.2 - Casappa, EU flange, shaft 1:8

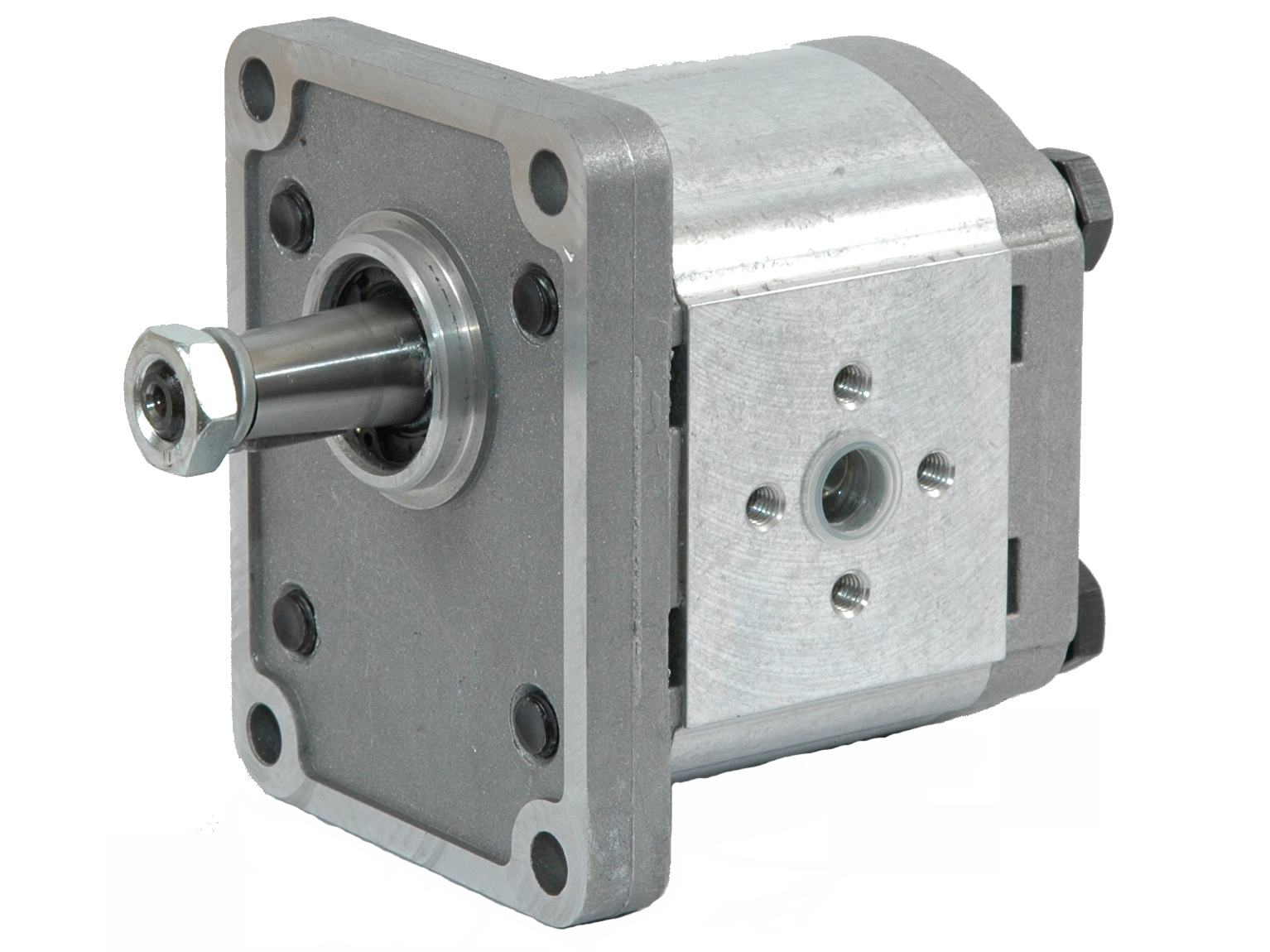

    Gear pump gr.2 - Casappa, EU flange, shaft 1:8

    Vælg variant
    VÆLG VARIANT
    VÆLG VARIANT
    Varenummer Beskrivelse Displacement Pressure continous max. Rotational speed max. Rotation direction
    02004634 Gear pump Casappa Grp2 7.29ccm 1:8 shaft - Right 7.29 cm3 250 bar 4000 rpm Right (CW)
    0200463H Gear pump Casappa Grp2 19.09ccm 1:8 shaft - Right 19.09 cm3 200 bar 3000 rpm Right (CW)
    PLP20.11.2D0-82E2-LEA/EAN-ELFS Gear pump Casappa Grp2 11.23ccm 1:8 shaft - Right 11.23 cm3 250 bar 3500 rpm Right (CW)
    PLP20.11.2S0-82E2-LEA/EA-N-ELF Gear pump Casappa Grp2 11.23ccm 1:8 shaft - Left 11.23 cm3 250 bar 3500 rpm Left (CCW)
    PLP20.14S0-82E2-LEB/EA-N-ELFS Gear pump Casappa Grp2 14.53ccm 1:8 shaft - Left 14.53 cm3 250 bar 3500 rpm Left (CCW)
    PLP20.16D0-82E2-LEB/EA-N-ELFS Gear pump Casappa Grp2 16.85ccm 1:8 shaft - Right 16.85 cm3 250 bar 3000 rpm Right (CW)
    PLP20.16S0-82E2-LEB/EA-N-ELFS Gear pump Casappa Grp2 16.85ccm 1:8 shaft - Left 16.85 cm3 250 bar 3000 rpm Left (CCW)
    PLP20.19S-82E2-LEB/EA-N-EL-FS Gear pump Casappa Grp2 19.09ccm 1:8 shaft - Left 19.09 cm3 200 bar 3000 rpm Left (CCW)
    PLP20.20D0-82E2-LEB/EA-N-ELFS Gear pump Casappa Grp2 21.14ccm 1:8 shaft - Right 21.14 cm3 200 bar 3000 rpm Right (CW)
    PLP20.20S0-82E2-LEB/EA-N-ELFS Gear pump Casappa Grp2 21.14ccm 1:8 shaft - Left 21.14 cm3 200 bar 3000 rpm Left (CCW)
    PLP20.25D0-82E2-LEB/EA-N-ELFS Gear pump Casappa Grp2 26.42ccm 1:8 shaft - Right 26.42 cm3 170 bar 2500 rpm Right (CW)
    PLP20.25S0-82E2-LEB/EA-N-ELFS Gear pump Casappa Grp2 26.42ccm 1:8 shaft - Left 26.42 cm3 170 bar 2500 rpm Left (CCW)
    PLP20.31.5S0-82E2-LEB/EA-N-ELF Gear pump Casappa Grp2 33.03ccm 1:8 shaft - Left 33.03 cm3 130 bar 2000 rpm Left (CCW)
    PLP20.4D0-82E2-LEA/EA-N-ELFS Gear pump Casappa Grp2 4.95ccm 1:8 shaft - Right 4.95 cm3 250 bar 4000 rpm Right (CW)
    PLP20.4S0-82E2-LEA/EA-N-ELFS Gear pump Casappa Grp2 4.95ccm 1:8 shaft - Left 4.95 cm3 250 bar 4000 rpm Left (CCW)
    PLP20.6.3D0-82E2-LEA/EA-N-ELFS Gear pump Casappa Grp2 6.61ccm 1:8 shaft - Right 6.61 cm3 250 bar 4000 rpm Right (CW)
    PLP20.6.3S0-82E2-LEA/EA-N-ELFS Gear pump Casappa Grp2 6.61ccm 1:8 shaft - Left 6.61 cm3 250 bar 4000 rpm Left (CCW)
    PLP20.8D0-82E2-LEA/EA-N-ELFS Gear pump Casappa Grp2 8.26ccm 1:8 shaft - Right 8.26 cm3 250 bar 3500 rpm Right (CW)
    PLP20.8S0-82E2-LEA/EA-N-ELFS Gear pump Casappa Grp2 8.26ccm 1:8 shaft - Left 8.26 cm3 250 bar 3500 rpm Left (CCW)
    Brand Name
    Casappa
    Contamination level max.
    19/17/14 - ISO 4406
    Mounting flange
    EU37 - 96x72
    Number of mounting holes
    4
    Oil viscocity recommended
    12 - 100
    Port outlet
    EU30
    Pump group
    2
    Recess
    37,0
    Shaft cone
    1:8
    Shaft keyway
    3,2
    Shaft type
    Tapered
    Torque input
    14
