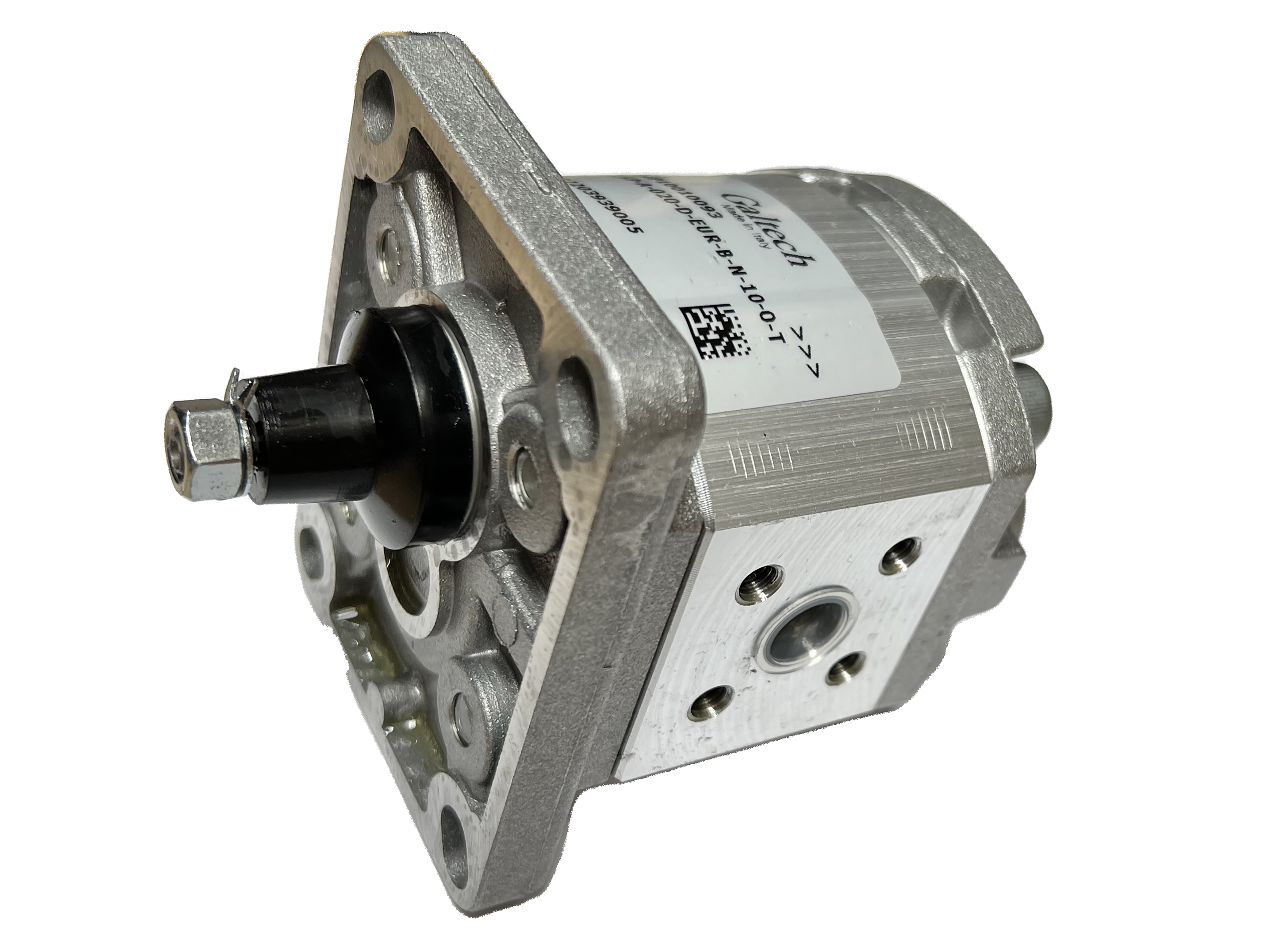

Gear pump gr.1 - Galtech 1SPA, EU flange, shaft 1:8

SELECT VARIANT
Partnumber Description Displacement Pressure continous max. Rotational speed max. Rotation direction
1GP10010000 Pump 1SP-A-009-D-EUR-B-N-10-0-G
1GP10010006 Pump 1SP-A-009-D-EUR-B-N-10-0-T 0.89 cm3 260 bar 4000 rpm Right (CW)
1GP10010068 Pump 1SP-A-016-D-EUR-B-N-10-0-T
1GP10010088 Pump 1SP-A-020-D-EUR-B-N-10-0-G
1GP10010093 Pump 1SP-A-020-D-EUR-B-N-10-0-T 2 cm3 260 bar 4000 rpm Right (CW)
1GP10010131 Pump 1SP-A-025-D-EUR-B-N-10-0-T 2.5 cm3 260 bar 4000 rpm Right (CW)
1GP10010163 Pump 1SP-A-032-D-EUR-B-N-10-0-G
1GP10010172 Pump 1SP-A-032-D-EUR-B-N-10-0-T 3.2 cm3 260 bar 4000 rpm Right (CW)
1GP10010241 Pump 1SP-A-042-D-EUR-B-N-10-0-G
1GP10010245 Pump 1SP-A-042-D-EUR-B-N-10-0-T 4.2 cm3 250 bar 4000 rpm Right (CW)
1GP10010275 Pump 1SP-A-050-D-EUR-B-N-10-0-G
1GP10010312 Pump 1SP-A-063-D-EUR-B-N-10-0-G
1GP10010318 Pump 1SP-A-063-D-EUR-B-N-10-0-T 6.3 cm3 170 bar 4000 rpm Right (CW)
1GP10010380 Pump 1SP-A-098-D-EUR-B-N-10-0-T 9.78 cm3 150 bar 4000 rpm Right (CW)
Brand Name
Walvoil

Mounting flange
EU25 - 72x52

Number of mounting holes
4

Pump group
1

Recess
25,0

Shaft cone
1:8

Shaft keyway
2,4

Shaft type
Tapered
