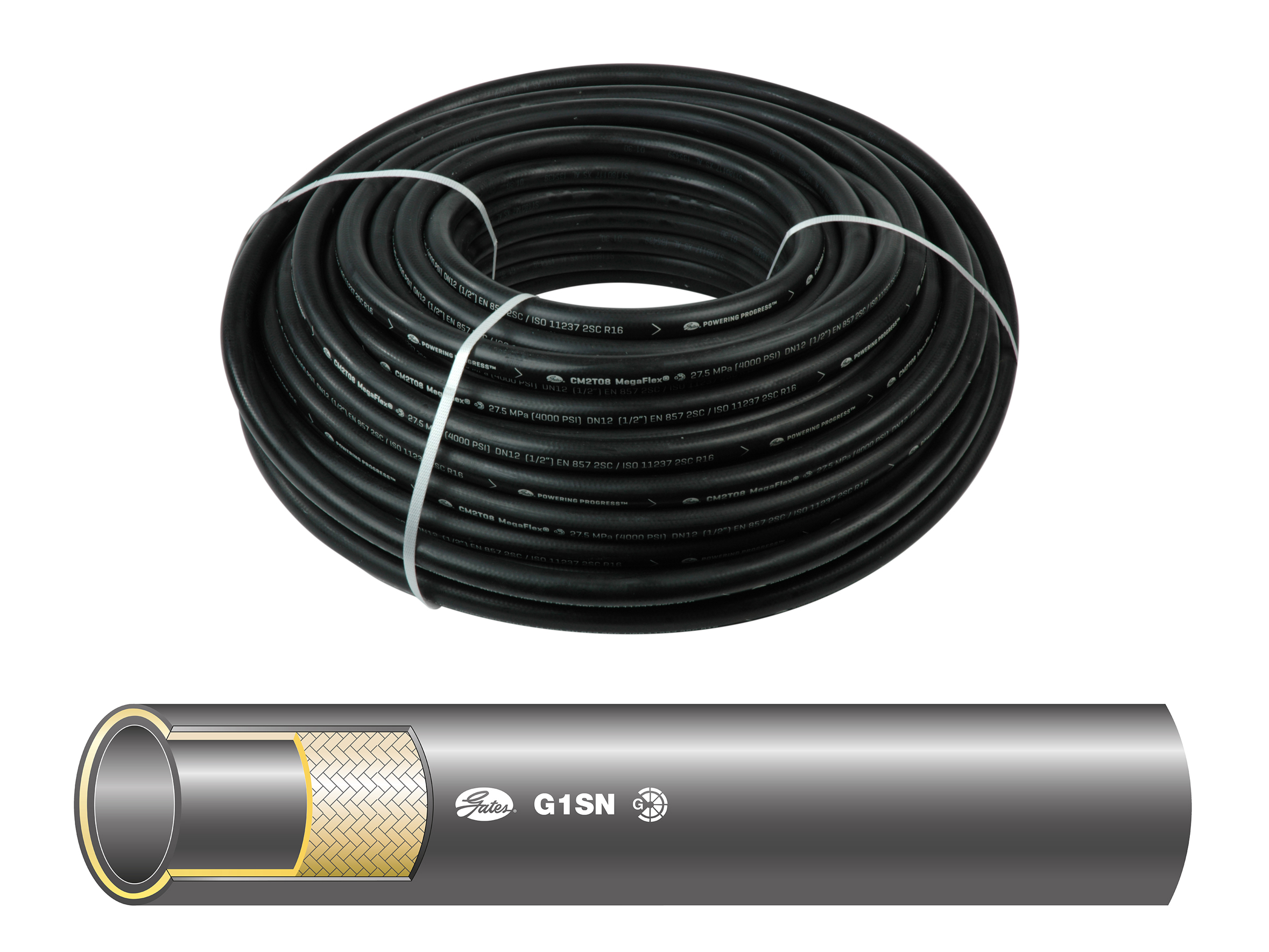

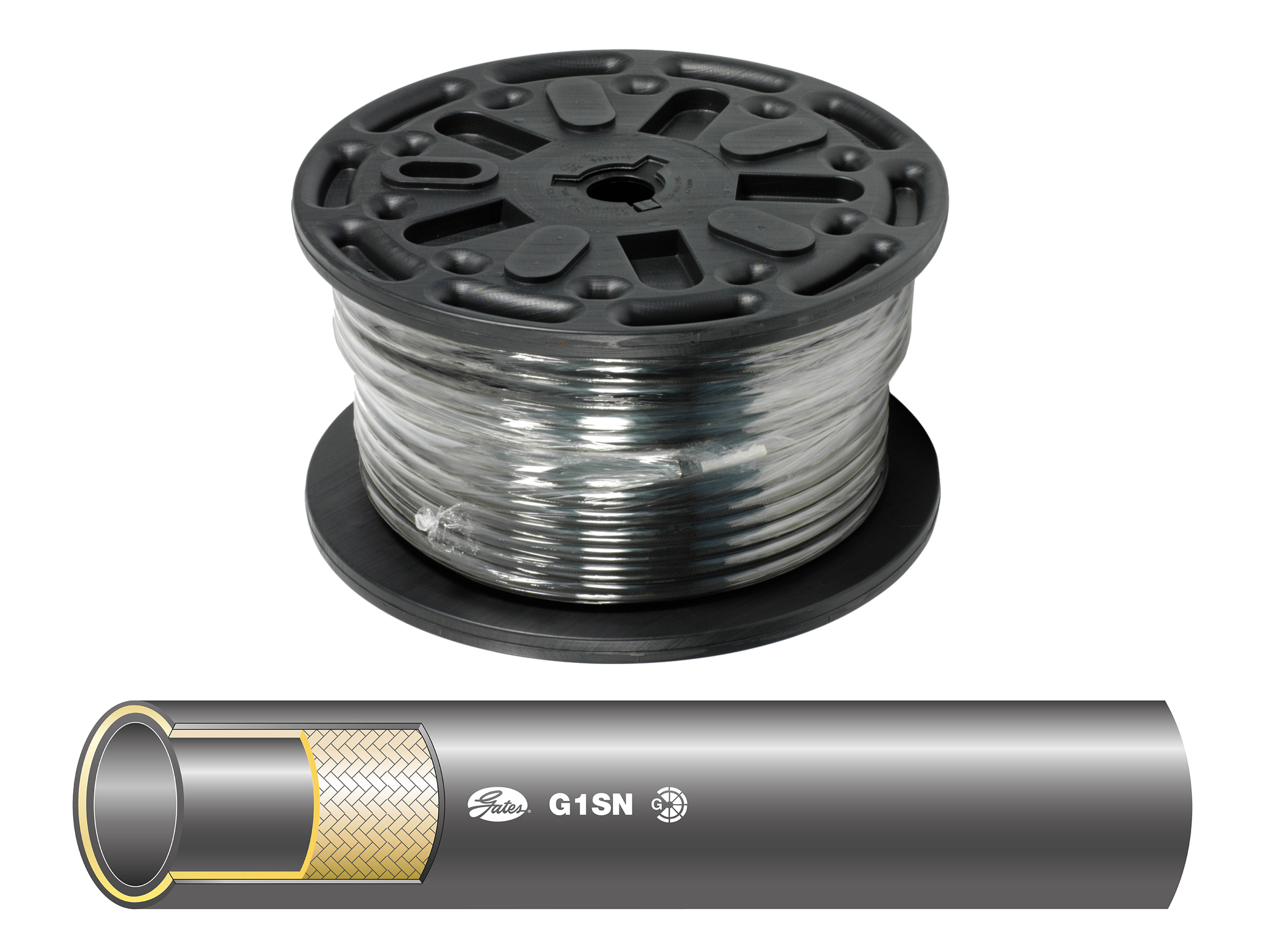

G1 hydraulic hoses

SELECT VARIANT

Partnumber	Description	Hose size	Pressure max.	Hose type	Bend radius
G1SN-04-RL200	1/4" Hydraulic hose G1 - 225 bar - 1SN - 200M reel	1/4 "	225 bar	G1	50 mm
G1SN-06-RL125	3/8" Hydraulic hose G1 - 180 bar - 1SN - 125M reel	3/8 "	180 bar	G1	65 mm
G1SN-08-RL100	1/2" Hydraulic hose G1 - 160 bar - 1SN - 100M reel	1/2 "	160 bar	G1	90 mm
G1SN-10-RL75	Hydraulslang 1 stål 5/8	5/8 "	130 bar	G1	100 mm
G1SN-12-RL50	3/4" Hydraulic hose G1 - 105 bar - 1SN - 50M reel	3/4 "	105 bar	G1	120 mm
G1SN-16-RL40	Hydraulslang 1 stål 1	1 "	90 bar	G1	150 mm
G1SN-20	Hydraulslang 1 stål 1.1/4	1.1/4 "	64 bar	G1	210 mm
G1SN-24	1.1/2" Hydraulic hose G1 - 50 bar - 1SN	1.1/2 "	50 bar	G1	210 mm
G1SN-32	2" Hydraulic hose G1 - 40 bar - 1SN	2 "	40 bar	G1	315 mm

Area of use

Diesel, Grease, Oil, Water

Brand Name

Gates

Cover

NBR/PVC

Flameresistant

Yes

Hose type

Hoseapprovals

ABS, BV, DNV, GL, LR, MSHA

Material

NBR, Steel

REACH compliant

Yes

Reinforcement

1 layer high tensile steel wire braid

RoHs compliant

Yes

Standard EN

EN 853 1SN

Standard ISO

ISO 1436 1SN R1ATS

Standard SAE

SAE 100R1AT

Temperature intermittent max.

+100

Temperature max.

+100

Temperature min.

-40

Tube

NBR (Nitrile)
