Elbow bulkhead fitting 90° - ø12S - w. counter nut
Temperature/pressurereduction:
-40°C - +120°C = 0%.
+120°C - +150°C = 11%.
+150°C - +175°C = 15%.
+175°C - +200°C = 19%.
+200°C - +250°C = 28%
Varenummer:
XWSV12S
Pakke str.:
20 st
Min. bestillingsenhed er:
1 st
Angle
90 °
Brand Name
Stauff
Corrosion resistance
1200 hours salt spray DIN EN ISO 9227
Diameter pipe
12 mm

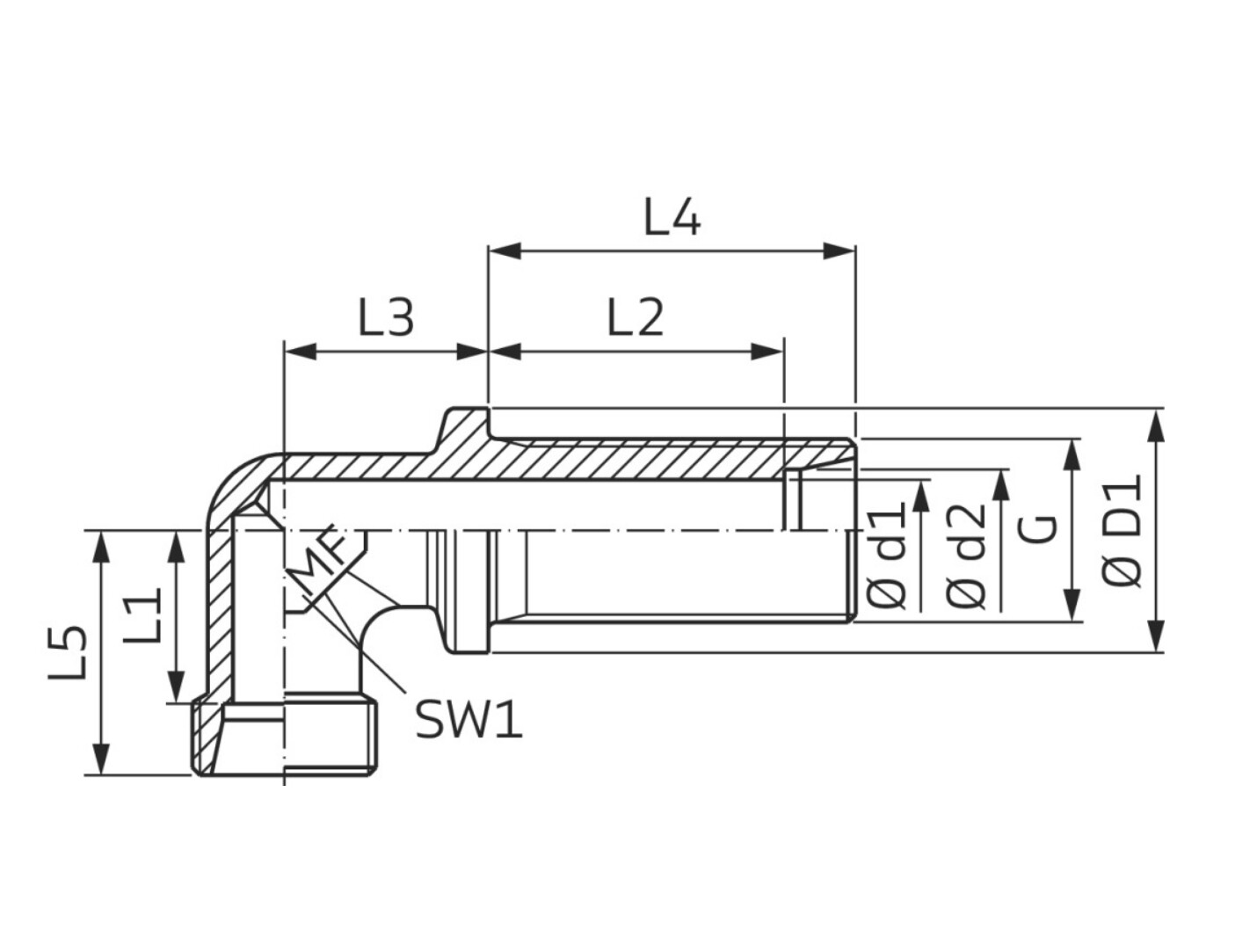

Dimension D1
4 mm
Dimension D1
17 mm
Dimension D2
8 mm
Dimension L
27 mm
Dimension L1
12 mm
Dimension L2
27 mm
Dimension L3
14 mm
Dimension L4
34 mm
Dimension L7 max
16 mm
Dimension L7 min
3 mm
Dimension S1
17 mm
Dimension S2
27 mm
Dimension S3
24 mm
Dimension i1
59 mm
Dimension i2
29 mm
Material
Steel
Model code
FI-WS-12S-W3-OGR-SKM
Pressure max.
630 bar
REACH compliant
Yes
RoHs compliant
Yes
Safety factor
4
Series
S
Surface treatment
Zinc-Nickel plated
Temperature max.
+120 °C
Temperature min.
-40 °C
Thread outer metric
M20x1,5
Package size
20 st
Barcode
249582
Gross weight
Kg
Net weight
0,16 Kg
Country of origin
deu
Intrastat code
73071110
Temperature/pressurereduction:
-40°C - +120°C = 0%.
+120°C - +150°C = 11%.
+150°C - +175°C = 15%.
+175°C - +200°C = 19%.
+200°C - +250°C = 28%
Note: Opening 3D files requires a program that supports the file format
