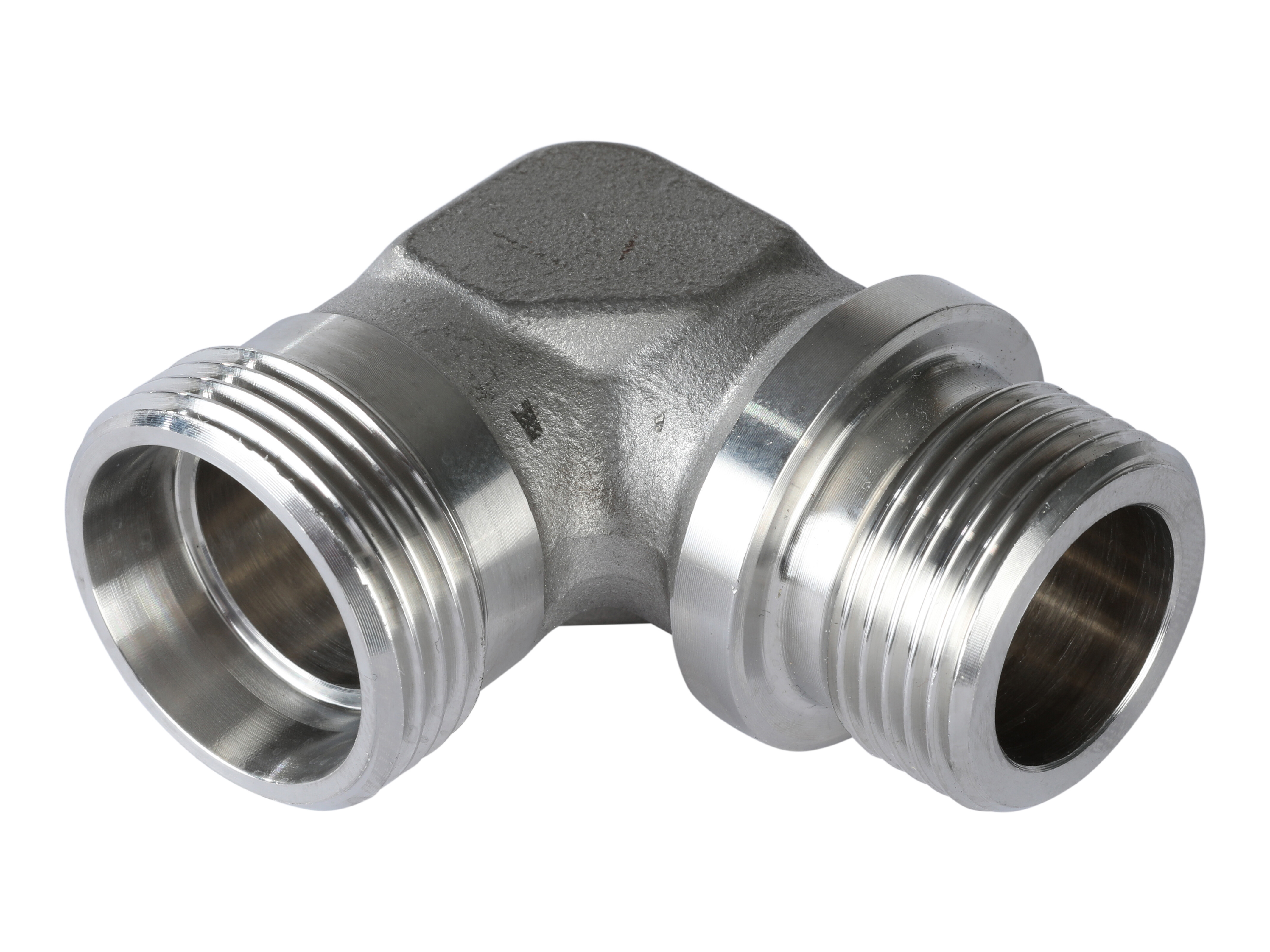

Stud elbow 90° - ø28L x 1 BSPT - AISI316
Temperature/Pressure reductions:
-60°C° - +20°C = 0%.
+20°C - +50°C = 4,5%.
+50°C - +100°C = 11%.
+100°C - +200°C = 20%.
+200°C - +300°C = 29%.
+300°C - +400°C = 33%.
Partnumber:
XWE28LR-SY
Package size:
1 st
Min. order quantity is:
1 st
Angle
90 °
Brand Name
Volz
Diameter pipe
28 mm
Material
Stainless steel
Material quality
1.4571 / AISI316Ti
Model code
XWEV 28 LR 1
Pressure max.
160 bar
Safety factor
4
Series
L
Temperature max.
+400 °C
Temperature min.
-60 °C
Thread outer
G 1 BSP
Thread outer metric
M36x2
Package size
1 st
Barcode
344096
Gross weight
0,32 Kg
Net weight
0,32 Kg
Country of origin
DEU
Intrastat code
73072910
Temperature/Pressure reductions:
-60°C° - +20°C = 0%.
+20°C - +50°C = 4,5%.
+50°C - +100°C = 11%.
+100°C - +200°C = 20%.
+200°C - +300°C = 29%.
+300°C - +400°C = 33%.
