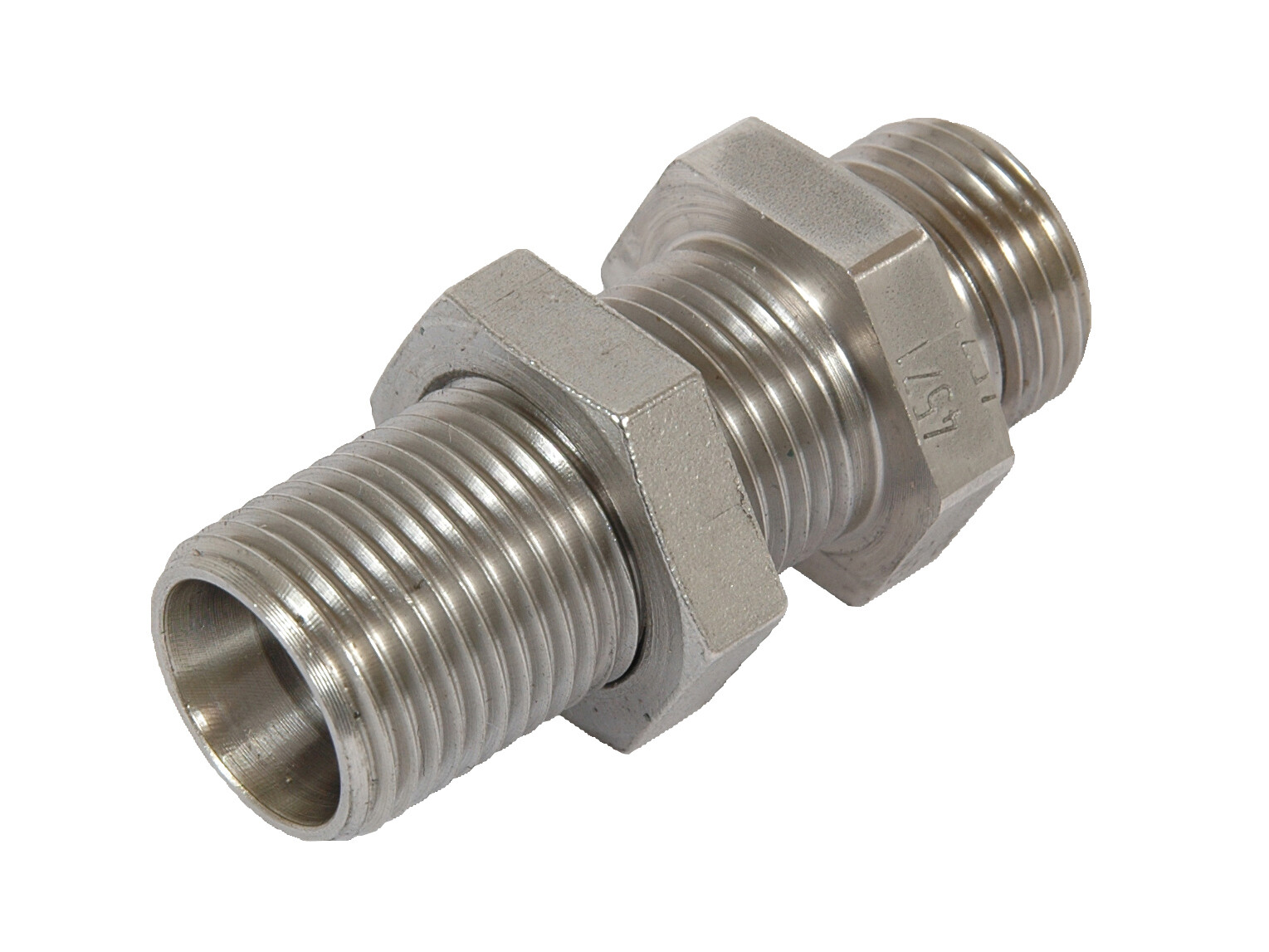

Bulkhead fitting - ø10L - w. counter nut - AISI316
Temperature/Pressure reductions:
-60°C° - +20°C = 0%.
+20°C - +50°C = 4,5%.
+50°C - +100°C = 11%.
+100°C - +200°C = 20%.
+200°C - +300°C = 29%.
+300°C - +400°C = 33%.
Partnumber:
XSV10L-SY
Package size:
1 st
Min. order quantity is:
1 st
Angle
0 °
Brand Name
Volz
Diameter pipe
10 mm
Dimension D1
10 mm
Dimension D2
8 mm
Dimension L1
52 mm
Dimension L2
25 mm
Dimension L3
10 mm
Dimension L4
43 mm
Dimension S1
22 mm
Dimension S2
19 mm
Dimension S3
22 mm
Material
Acid-resistant steel
Material quality
1.4571 / AISI316Ti
Model code
XGSV 10 L
Pressure max.
500 bar
Safety factor
4
Series
L
Temperature max.
+400 °C
Temperature min.
-60 °C
Thread T
M16x1,5
Thread outer metric
M16x1,5
Pakke str.
1 st
Stregkode
343994
Brutto vægt
0,07 Kg
Netto vægt
0,07 Kg
Oprindelsesland
DEU
Intrastat varekode
73072910
Temperature/Pressure reductions:
-60°C° - +20°C = 0%.
+20°C - +50°C = 4,5%.
+50°C - +100°C = 11%.
+100°C - +200°C = 20%.
+200°C - +300°C = 29%.
+300°C - +400°C = 33%.
