Adapter L 16S, Utv-G 1/2'', Ställbar
Adapter L 16S, Utv-G 1/2'', Ställbar
Partnumber:
XLEE16SR
Package size:
10 st
Min. order quantity is:
1 st
Brand Name
Gates
Corrosion resistance
1200 hours salt spray DIN EN ISO 9227
Diameter pipe
16 mm

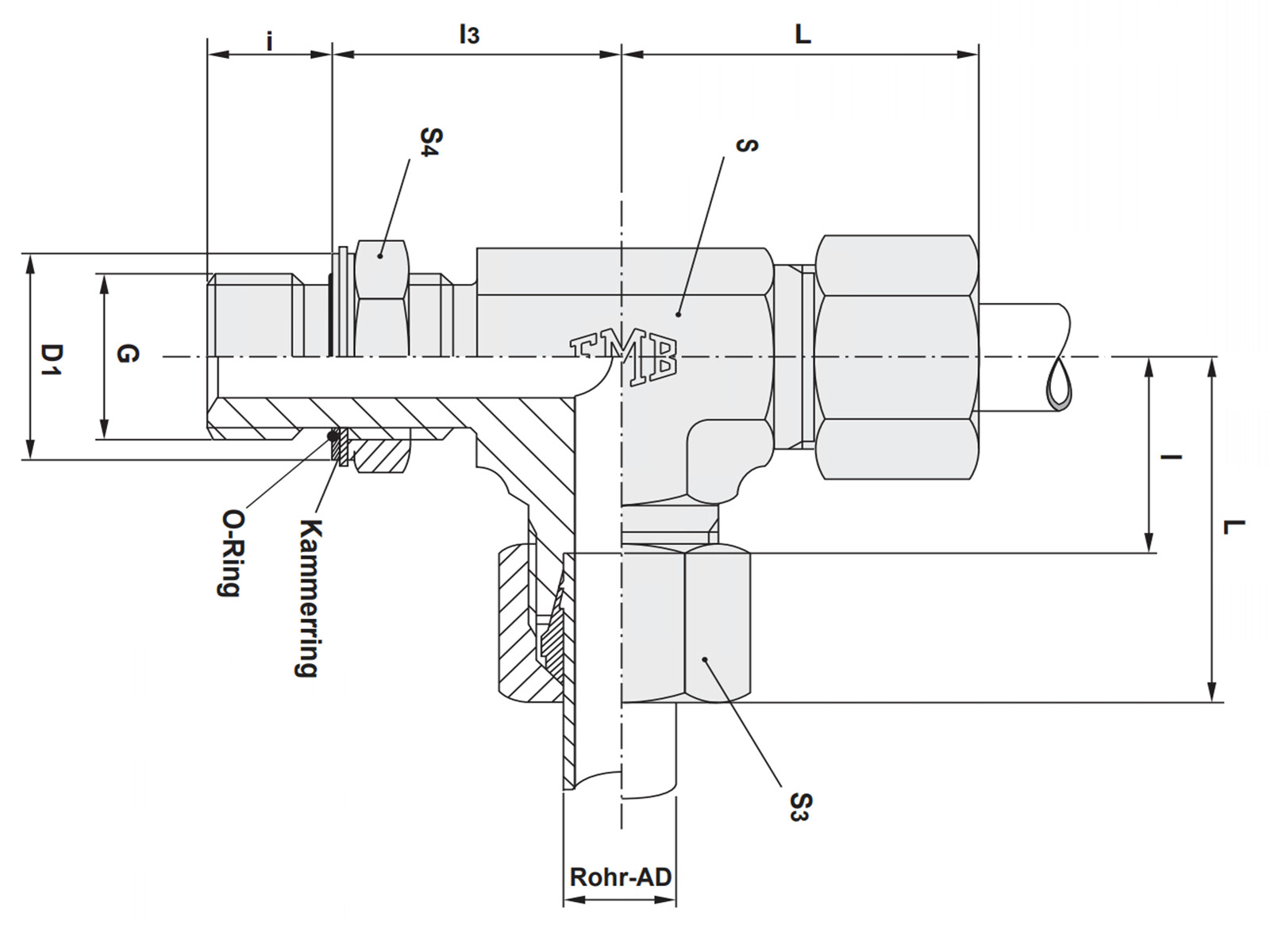

Dimension D1
28 mm
Dimension L
43 mm
Dimension S
27 mm
Dimension S3
30 mm
Dimension i
10.5 mm
Dimension l
25 mm
Dimension l3
38.5 mm
Material
Steel
Model code
XDE16RSOAZN
Pressure max.
250 bar
Safety factor
4
Sealing material
NBR
Series
S
Surface treatment
Zinc-Nickel plated
Temperature max.
+120 °C
Temperature min.
-40 °C
Thread outer
G 1/2 BSP
Thread outer metric
M24x1,5
Type
Forged
Package size
10 st
Barcode
306837
Gross weight
0,282 Kg
Net weight
0,282 Kg
Country of origin
deu
Adapter L 16S, Utv-G 1/2'', Ställbar
