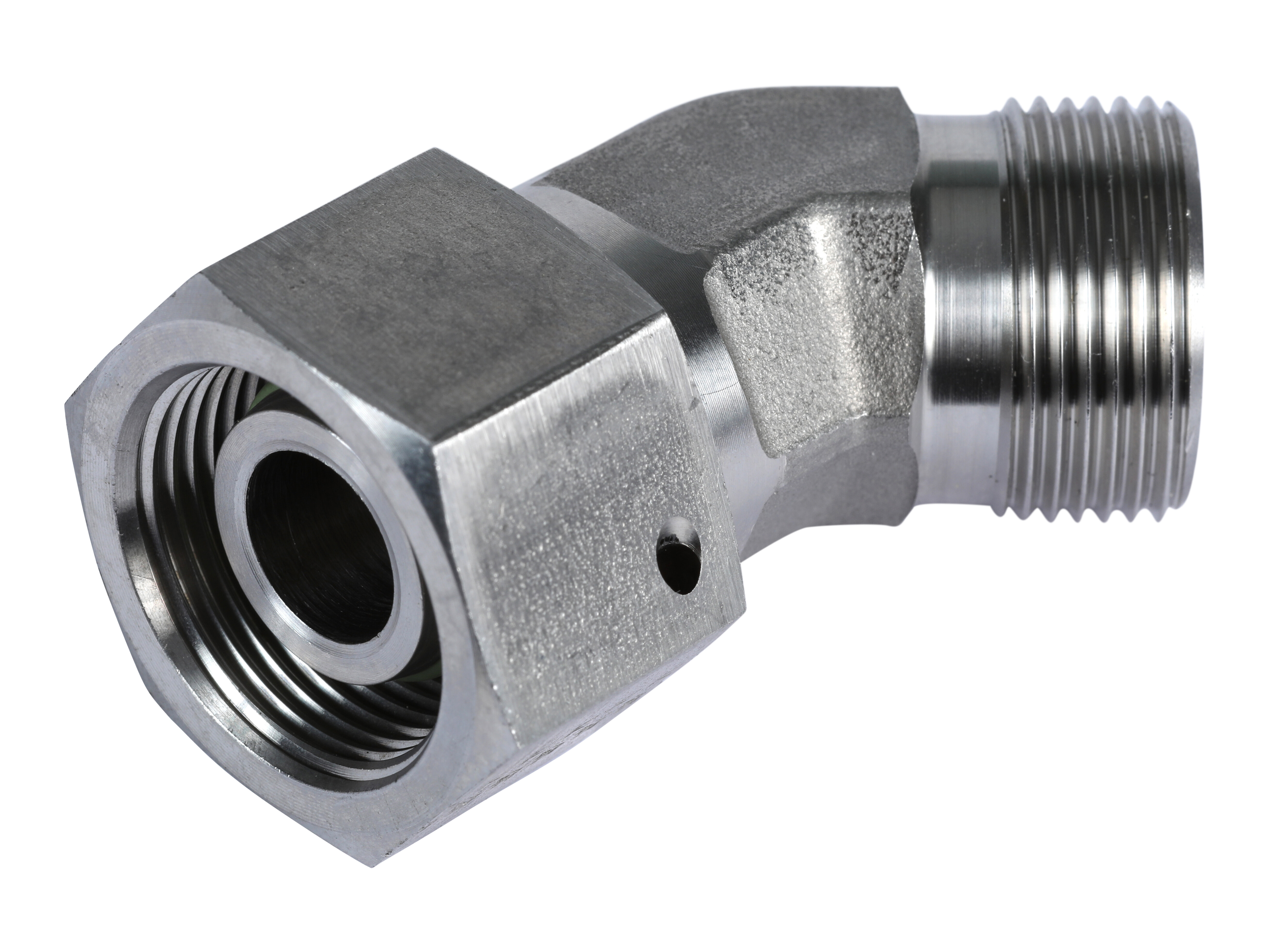

Adapter 45° 28L, Ställbar, O-ringstätad, Syrafast

Temperature/pressure reduction:
_x000D_ -60°C to +20°C = 0%.
+20°C to +50°C = 5%.
+50°C to +100°C = 11%.
+100°C to +200°C = 20%.
+200°C to +300°C = 29%.
+300°C to +400°C = 33%.

Partnumber:
XEV28L-SY

Package size:
1 st

Min. order quantity is:
1 st
Angle
45 °

Brand Name
Volz

Diameter pipe
28 mm

Material
Acid-resistant steel

Material quality
1.4571 / AISI316Ti

Model code
XEWVD 45° 28L

Pressure max.
250 bar

Safety factor
4

Sealing material
FKM/FPM (Viton®)

Series
L

Temperature max.
+200 °C

Temperature min.
-20 °C

Thread inner metric
M36x2

Thread outer metric
M36x2
Package size
1 st

Barcode
428513

Gross weight
Kg

Net weight
Kg

Country of origin
deu

Temperature/pressure reduction:
_x000D_ -60°C to +20°C = 0%.
+20°C to +50°C = 5%.
+50°C to +100°C = 11%.
+100°C to +200°C = 20%.
+200°C to +300°C = 29%.
+300°C to +400°C = 33%.
