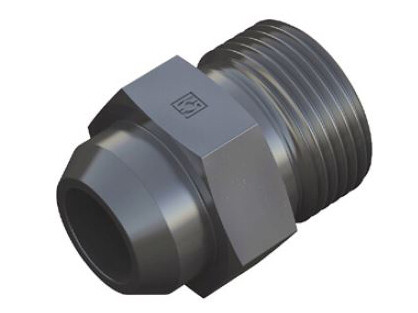

Svejseforskruning - ø14S
Temperature/pressurereduction: -40°C - +120°C = 0%. +120°C - +150°C = 11%. +150°C - +175°C = 15%. +175°C - +200°C = 19%. +200°C - +250°C = 28%.
Varenummer:
XAS14S
Pakke str.:
1 st
Min. bestillingsenhed er:
1 st
Angle
0 °
Brand Name
Stauff
Diameter pipe
14 mm
Dimension D1
14 mm
Dimension D1
14 mm
Dimension D2
10 mm
Dimension D3
19 mm
Dimension L
35 mm
Dimension L1
45 mm
Dimension L2
27 mm
Dimension S1
24 mm
Dimension S2
27 mm
Material
Steel
Model code
FI-AS-14S-W2
Pressure max.
630 bar
REACH compliant
Yes
RoHs compliant
Yes
Safety factor
4
Series
S
Surface treatment
Phosphated (black)
Temperature max.
+120 °C
Temperature min.
-40 °C
Thread outer metric
M22x1,5
Pakke str.
1 st
Stregkode
336981
Brutto vægt
Kg
Netto vægt
0,071 Kg
Oprindelsesland
deu
Intrastat varekode
73071110
Temperature/pressurereduction: -40°C - +120°C = 0%. +120°C - +150°C = 11%. +150°C - +175°C = 15%. +175°C - +200°C = 19%. +200°C - +250°C = 28%.
