3/8" Hose burst cartridge valve
Hose burst cartridge valve designed to prevent uncontrolled movement by automatically restricting flow if a downstream hose fails. The cartridge format is intended to be installed in a suitable cavity as part of a hydraulic actuator circuit.
Selection is primarily based on the threaded interface, required flow capacity and system pressure. This version uses a G 3/8 BSP connection and is specified for a nominal flow of 50 l/min with a maximum operating pressure of 350 bar.
Typical Applications
- Hydraulic actuator lines where automatic load holding is required in case of hose rupture
- Hydraulic circuits where a cartridge-style safety valve is integrated into a manifold or valve block
Varenummer:
VUBA-38
Pakke str.:
1 pcs
Min. bestillingsenhed er:
1 pcs
Brand Name
OM Oleodinamica Marchesini
Flow max.
50 lpm
Flowrate nominal LMin
50 lpm
L
10,5 mm
L1
23 mm
L2
5 mm
L3
31 mm
L4
40 mm
Material
Steel
Oil viscocity recommended
30 cSt
Pressure max.
350 bar

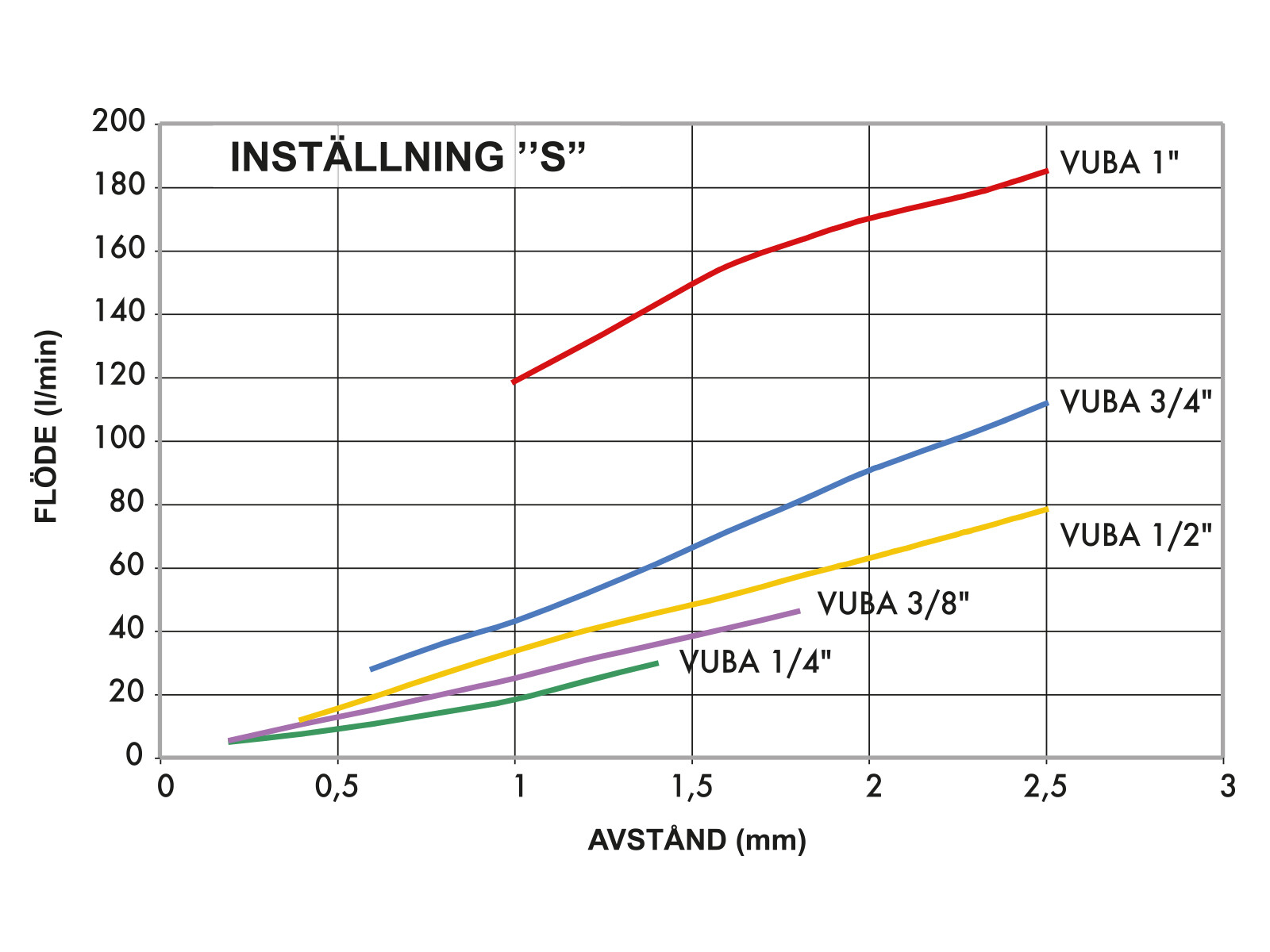

S
1,2 mm
Thread
G 3/8 BSP
V
G 3/8 BSP
V1
3/8 BSP
ØC
12,5 mm
ØD
10,5 mm
ØF
15,2 mm
Pakke str.
1 pcs
Stregkode
242003
Brutto vægt
Kg
Netto vægt
Kg
Oprindelsesland
ITA
Intrastat varekode
84812010
Hose burst cartridge valve designed to prevent uncontrolled movement by automatically restricting flow if a downstream hose fails. The cartridge format is intended to be installed in a suitable cavity as part of a hydraulic actuator circuit.
Selection is primarily based on the threaded interface, required flow capacity and system pressure. This version uses a G 3/8 BSP connection and is specified for a nominal flow of 50 l/min with a maximum operating pressure of 350 bar.
Typical Applications
- Hydraulic actuator lines where automatic load holding is required in case of hose rupture
- Hydraulic circuits where a cartridge-style safety valve is integrated into a manifold or valve block
