1/4" Hose burst cartridge valve
Hose burst cartridge valve designed to prevent uncontrolled actuator movement if a hose or line fails. The valve limits the discharge flow from the actuator, helping to control descent or load movement during a hose rupture condition.
The cartridge format mounts into a valve cavity and uses a BSP thread connection for integration in hydraulic circuits where controlled flow from an actuator line is required.
Typical Applications
- Actuator lines where uncontrolled movement must be limited in case of hose rupture
- Hydraulic circuits requiring controlled discharge flow from a cylinder or motor line
Partnumber:
VUBA-14
Package size:
1 pcs
Min. order quantity is:
1 pcs
Brand Name
OM Oleodinamica Marchesini
Flow max.
20 lpm
Flow rate nominal LMin
20 lpm

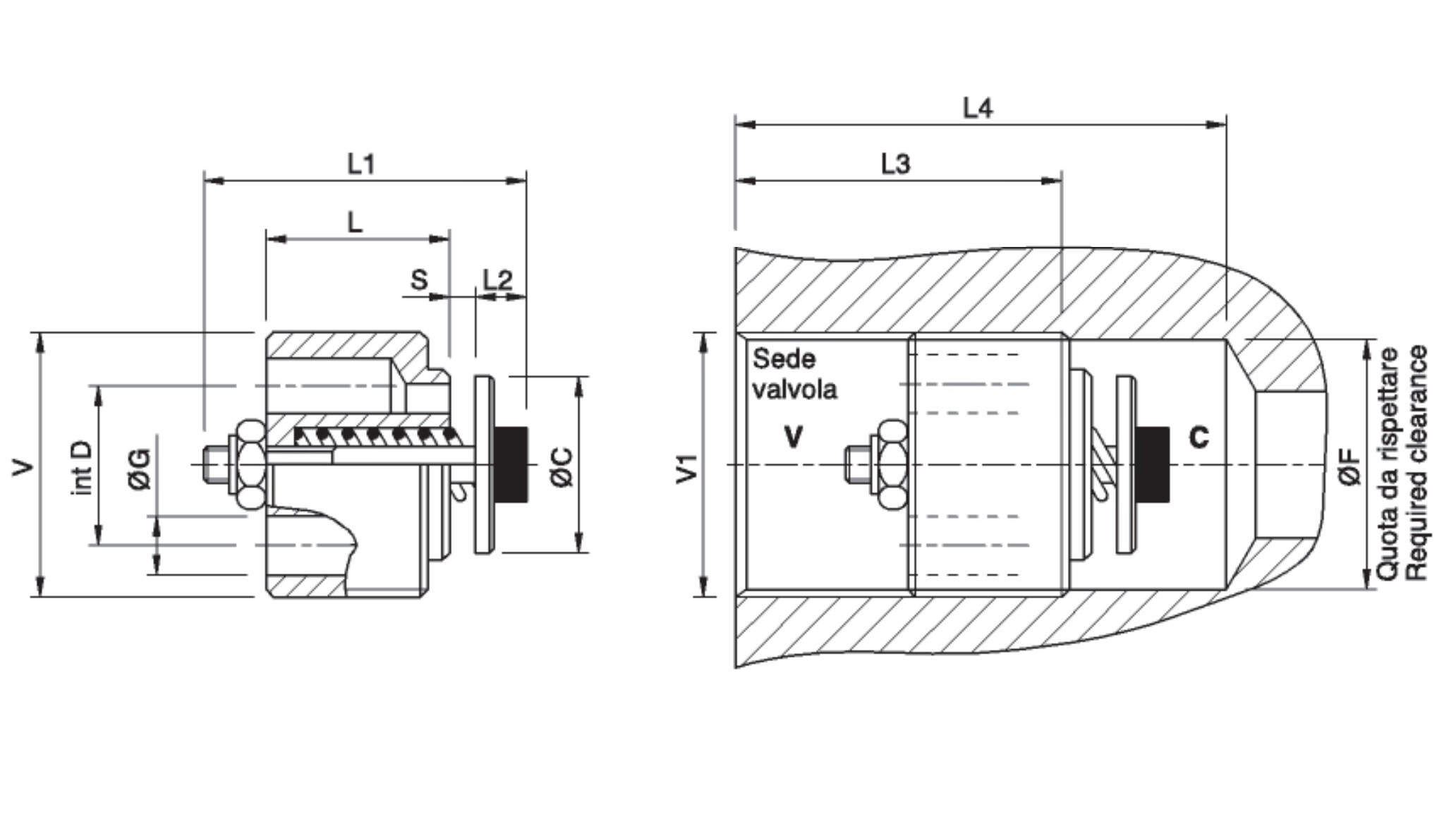

L
8 mm
L1
18 mm
L2
5 mm
L3
28 mm
L4
35 mm
Material
Steel
Oil viscocity recommended
30 cSt
Pressure max.
350 bar
S
1 mm
Thread
G 1/4 BSP
V
G 1/4 BSP
V1
1/4 BSP
ØC
9,5 mm
ØD
8 mm
ØF
11,75 mm
Package size
1 pcs
Barcode
241999
Gross weight
Kg
Net weight
Kg
Country of origin
ITA
Intrastat code
84812010
Hose burst cartridge valve designed to prevent uncontrolled actuator movement if a hose or line fails. The valve limits the discharge flow from the actuator, helping to control descent or load movement during a hose rupture condition.
The cartridge format mounts into a valve cavity and uses a BSP thread connection for integration in hydraulic circuits where controlled flow from an actuator line is required.
