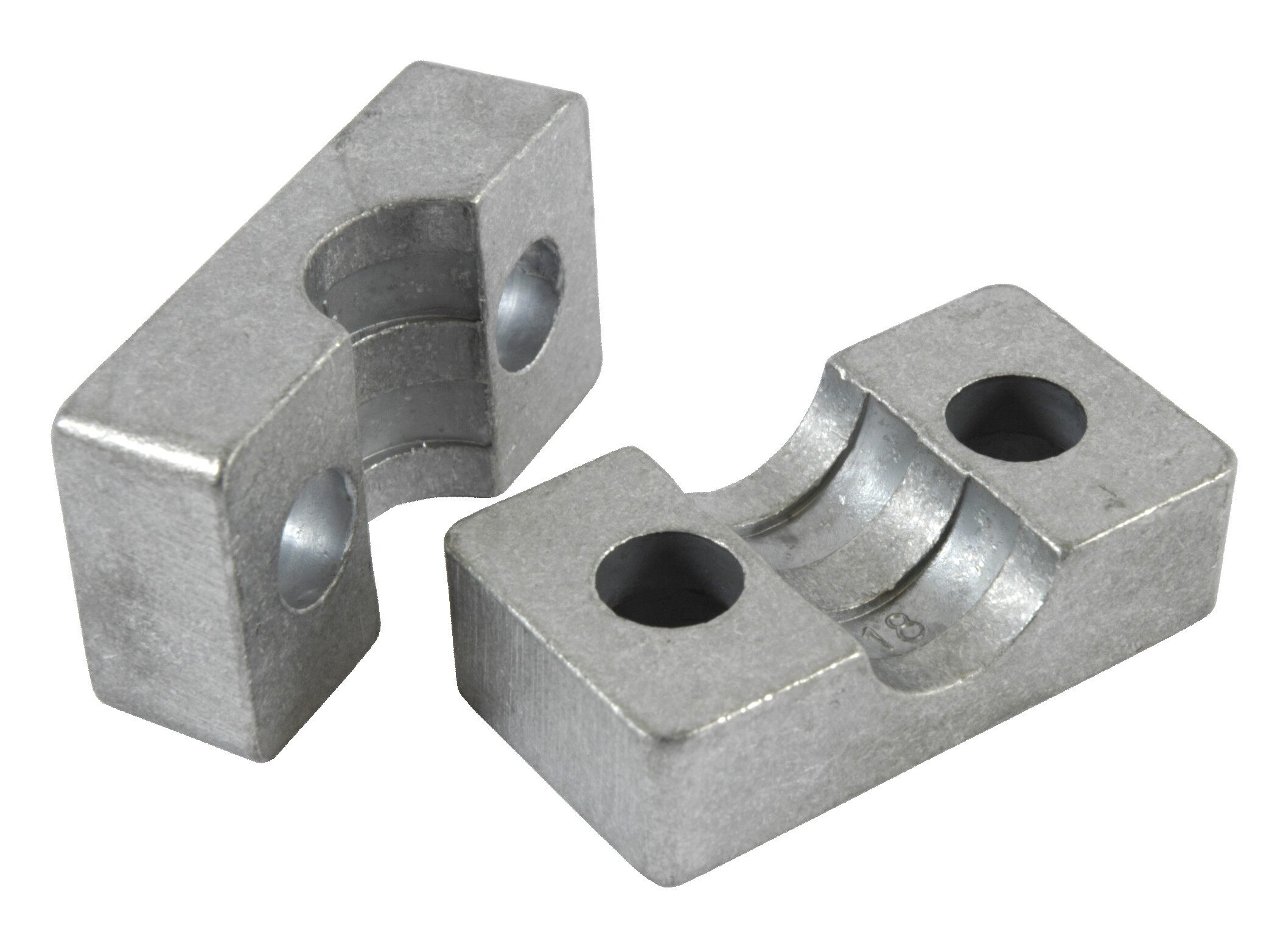

Heavy clamp ø20 - Alu - DIN 2 heavy
Heavy series pipe clamp
Partnumber:
TSLK4020AL
Package size:
20 par
Min. order quantity is:
1 par
Brand Name
Stauff
Color
Grey (blank)

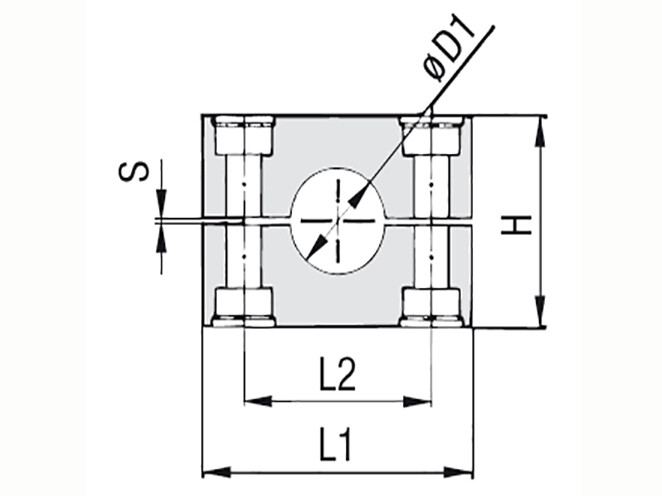

D1
20 mm
DIN size
2
Diameter pipe
20 mm
Group Stauff
4S
H
48 mm
L1
70 mm
L2
45 mm
Material
Aluminium
Model code
4020-AL
Number of bolts
2
S
0,6 mm
Standard DIN
DIN 3015 part 2
Temperature max.
+300 °C
Temperature min.
-100 °C
Torque tightening
30 Nm
Type
Profiled
Width
30.5 mm
Package size
20 par
Barcode
213019
Gross weight
0,16 Kg
Net weight
0,16 Kg
Country of origin
DEU
Intrastat code
39259010
Heavy series pipe clamp
