Svivel JIC hane-BSP hona JIC 1.5/16 - G1, 420 BAR
\ufeff
- Taim's patented ball-bearing-free rotary connectors dampen torsional movements
- Protect hoses from premature wear and extend their service life.
- Improve the reliability of your hydraulic system with Taimi's Rotary connectors.
Varenummer:
SZ-J16M-P16F
Pakke str.:
1 st
Min. bestillingsenhed er:
1 st

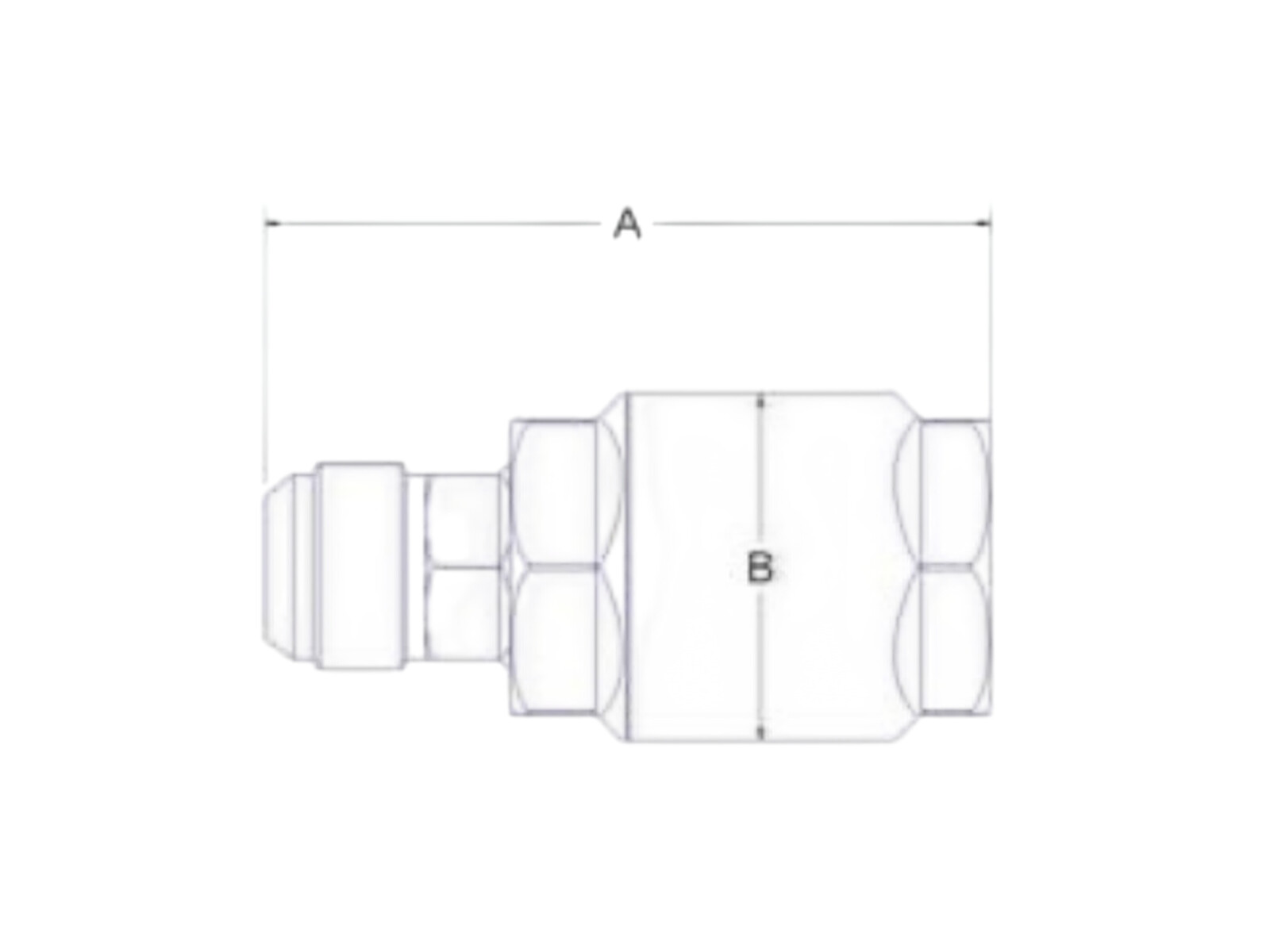

A
113 mm
B
58 mm
Gevind udvendig
1.5/16-12 JIC
Korrosions resistens
350 hours salt spray ASTM B-117
Materiale
Steel
Mærke navn
Faster
Overfladebehandling
White zinc plated
Pakningsmateriale
FKM/FPM (Viton®)
Temperatur maks.
+180 °C
Temperatur min.
-40 °C
Tilspændingsmoment
665 Nm
Tryk maks.
430 bar
Vinkel
0 °
Förpackningsstorlek
1 st
Streckkod
310458
Bruttovikt
Kg
Nettovikt
Kg
Ursprungsland
can
\ufeff
- Taim's patented ball-bearing-free rotary connectors dampen torsional movements
- Protect hoses from premature wear and extend their service life.
- Improve the reliability of your hydraulic system with Taimi's Rotary connectors.
