BDV08LLR banjo ø8 1/8
BDV08LLR banjo ø8 1/8
Partnumber:
SWVE08LLR
Package size:
10 st
Min. order quantity is:
1 st
Angle
90 °
Brand Name
Stauff
Corrosion resistance
1200 hours salt spray DIN EN ISO 9227
Diameter pipe
8 mm

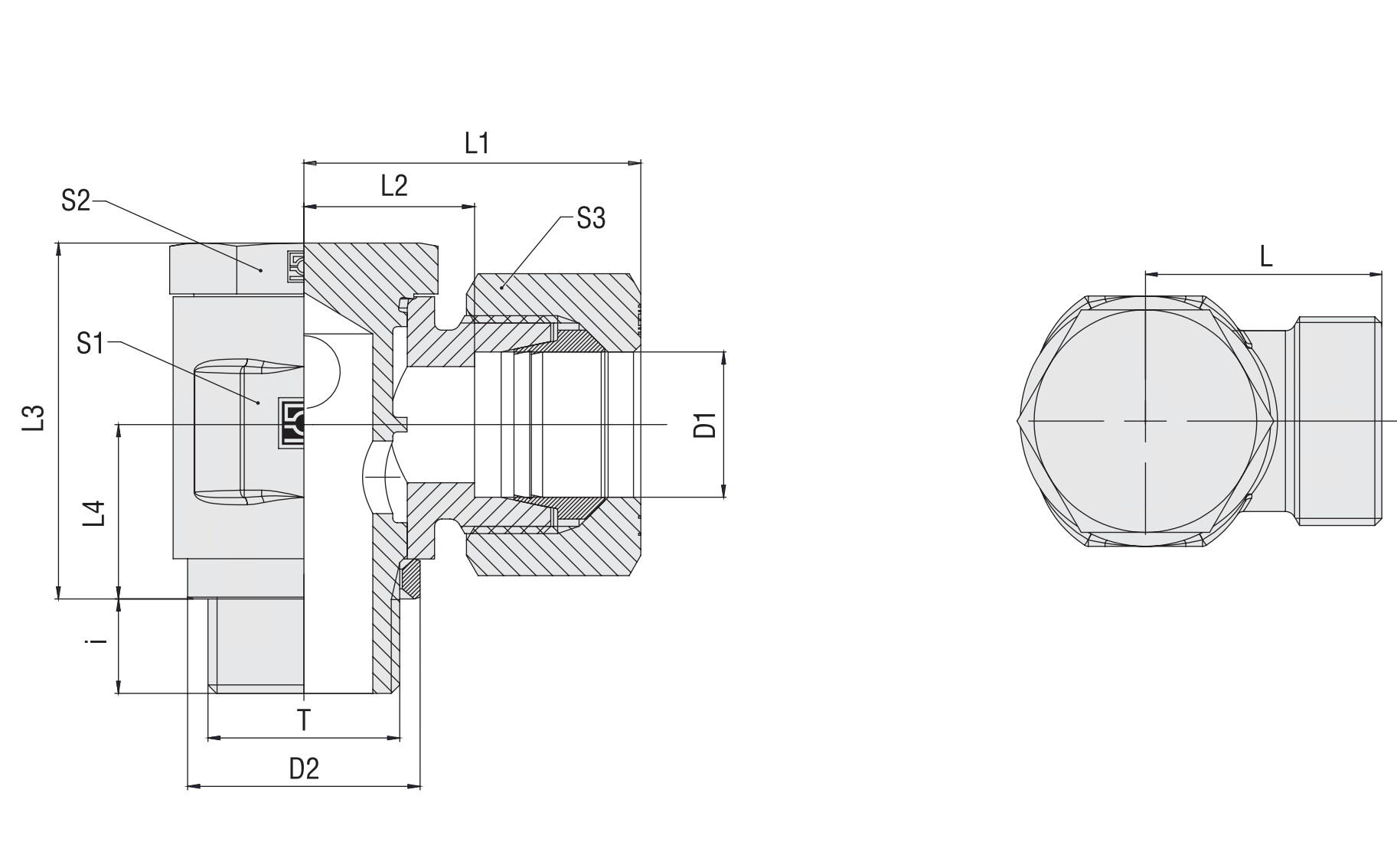

Dimension D1
8 mm
Dimension D2
13 mm
Dimension L
16.5 mm
Dimension L1
23 mm
Dimension L2
11 mm
Dimension L3
21 mm
Dimension L4
10 mm
Dimension S1
14 mm
Dimension S2
14 mm
Dimension S3
14 mm
Dimension i
6 mm
Material
Steel
Model code
SBD8RLLZN
Pressure max.
100 bar
REACH compliant
Yes
RoHs compliant
Yes
Safety factor
2.5
Sealing material
NBR
Series
LL
Surface treatment
Zinc-Nickel plated
Temperature max.
+100 °C
Temperature min.
-35 °C
Thread T
G 1/8 BSP
Thread outer
G 1/8 BSP
Thread outer metric
M12x1
Type
Forged
Package size
10 st
Barcode
130591
Gross weight
0,04 Kg
Net weight
0,04 Kg
Country of origin
DEU
Intrastat code
73071110
