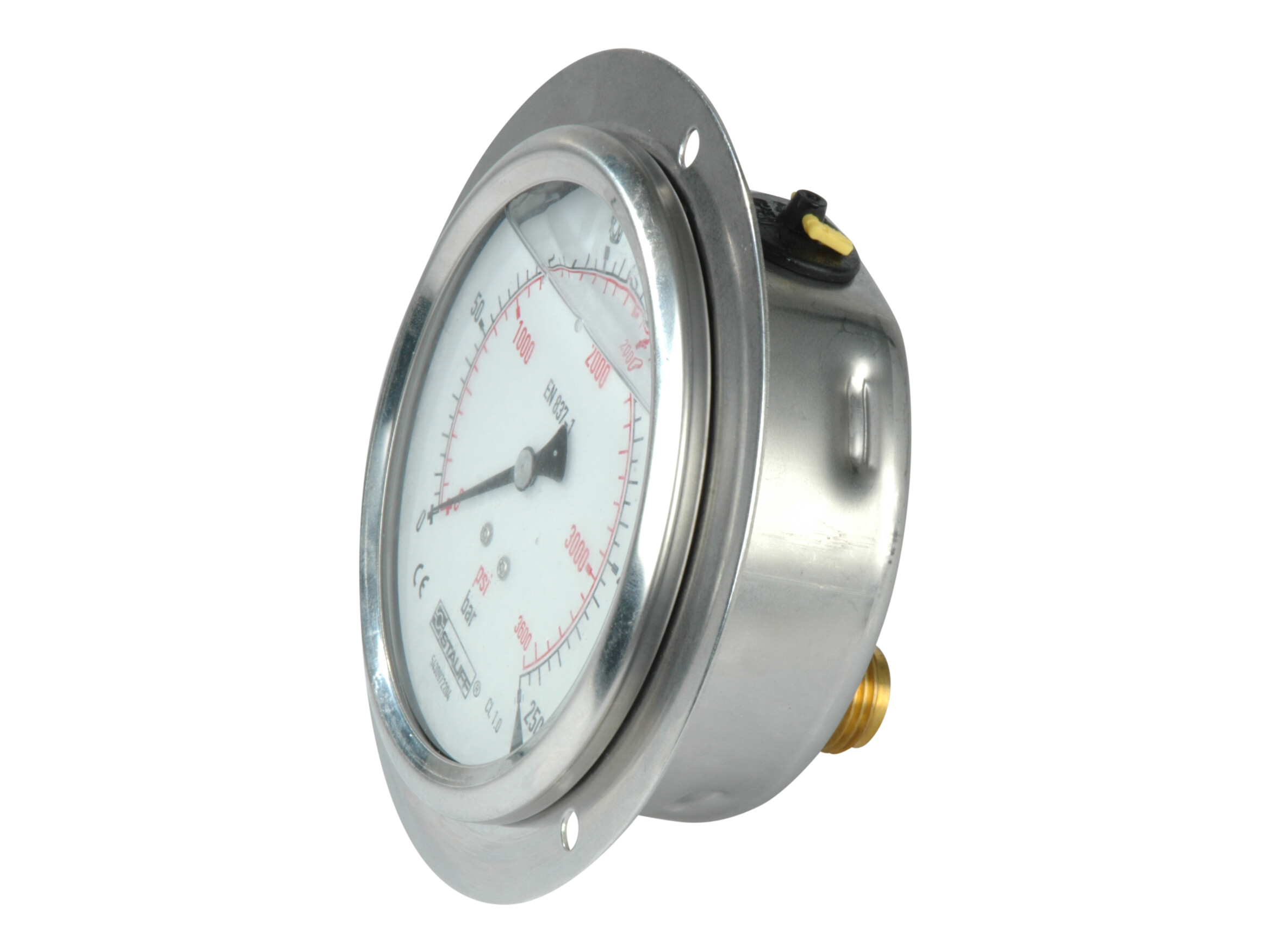

1/2" pressure gauge. Rear mount w. frontring. Scale 0-250 ba

Application: Measuring pressure in hydraulic oil and gaseous fluids which are non-aggresive to copper alloys.

Glycerine dampened.
Comes standard with dual scale showing both bar and PSI.
U-bolt or flange mounting kit optional.

!!NOTE: Mounting hole diameter: ø67 mm +/-0,3 mm.

Partnumber:
SPG100-250RF

Package size:
1 st

Min. order quantity is:
1 st
Mounting kit ø100 pressure gauge
Partnumber: SPG100-U
Diameter
100 mm

Gevind
G 1/2 BSP

Glastype
Acrylic glass

Materiale
Stainless steel

Materialekvalitet
1.4301 / AISI304

Model kode
SPG-100-00250-01-P-B08-F

Mærke navn
Stauff

Portplacering
Rear

Temperatur maks.
+60 °C

Temperatur min.
-20 °C

Trykindstilling maks.
250 bar

Trykindstilling min.
0 bar

Trykmåling nøjagtighed
±1,0% FS
Package size
1 st

Barcode
367881

Gross weight
0,94 Kg

Net weight
0,94 Kg

Country of origin
DEU

Intrastat code
90262040

Application: Measuring pressure in hydraulic oil and gaseous fluids which are non-aggresive to copper alloys.

Glycerine dampened.
Comes standard with dual scale showing both bar and PSI.
U-bolt or flange mounting kit optional.

!!NOTE: Mounting hole diameter: ø67 mm +/-0,3 mm.
