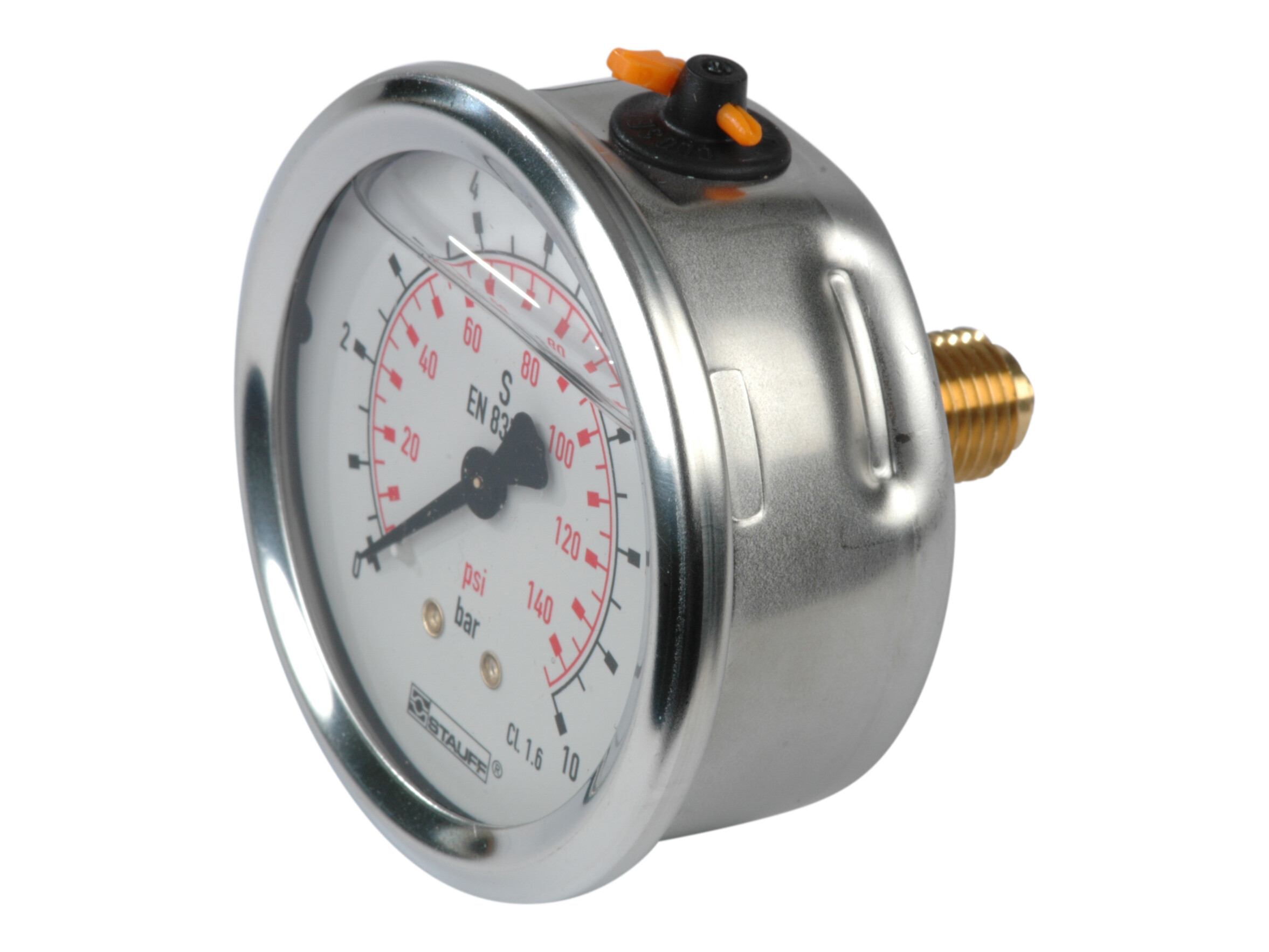

1/4" pressure gauge. Rear mount. Scale 0-10 bar
Application: Measuring pressure in hydraulic oil and gaseous fluids which are non-aggresive to copper alloys.
Glycerine dampened.
Comes standard with dual scale showing both bar and PSI.
U-bolt or flange mounting kit optional.
!!NOTE: Mounting hole diameter: ø67 mm +/-0,3 mm.
Varenummer:
SPG063-010RB
Pakke str.:
1 st
Min. bestillingsenhed er:
1 st
Brand Name
Stauff
Diameter
63 mm
Glass type
Acrylic glass
Material
Stainless steel
Material quality
1.4301 / AISI304
Model code
SPG-063-00010-01-P-B04
Port position
Rear
Pressure measurement accuracy
±1,6% FS
Pressure setting max.
10 bar
Pressure setting min.
0 bar
Temperature max.
+60 °C
Temperature min.
-20 °C
Thread
G 1/4 BSP
Pakke str.
1 st
Stregkode
367839
Brutto vægt
0,24 Kg
Netto vægt
0,24 Kg
Oprindelsesland
DEU
Intrastat varekode
90262040
Application: Measuring pressure in hydraulic oil and gaseous fluids which are non-aggresive to copper alloys.
Glycerine dampened.
Comes standard with dual scale showing both bar and PSI.
U-bolt or flange mounting kit optional.
!!NOTE: Mounting hole diameter: ø67 mm +/-0,3 mm.
Bemærk: Åbning af 3D-filer kræver et program der understøtter fil-formatet
