Level Glass with thermometer- -10+80.M12
Level gauge for hydraulic reservoirs, combining a sight tube for visual fluid level indication with an integrated thermometer display. Intended for use where a quick external check of both oil level and operating temperature is required.
Designed for mineral and petroleum-based hydraulic fluids and specified for tank pressures up to 2 bar. The unit uses an M12 bolt connection and FKM/FPM sealing material. Protection class IP 65 supports use in environments where dust-tightness and protection against water jets are required.
Typical Applications
- Oil level monitoring on hydraulic power units and reservoirs
- Combined level and temperature indication in systems using mineral or petroleum-based hydraulic fluids
Artikelnummer:
SNA-254-B-N-T-12
Förpackningsstorlek:
1 pcs
Minsta beställningskvantitet:
1 pcs

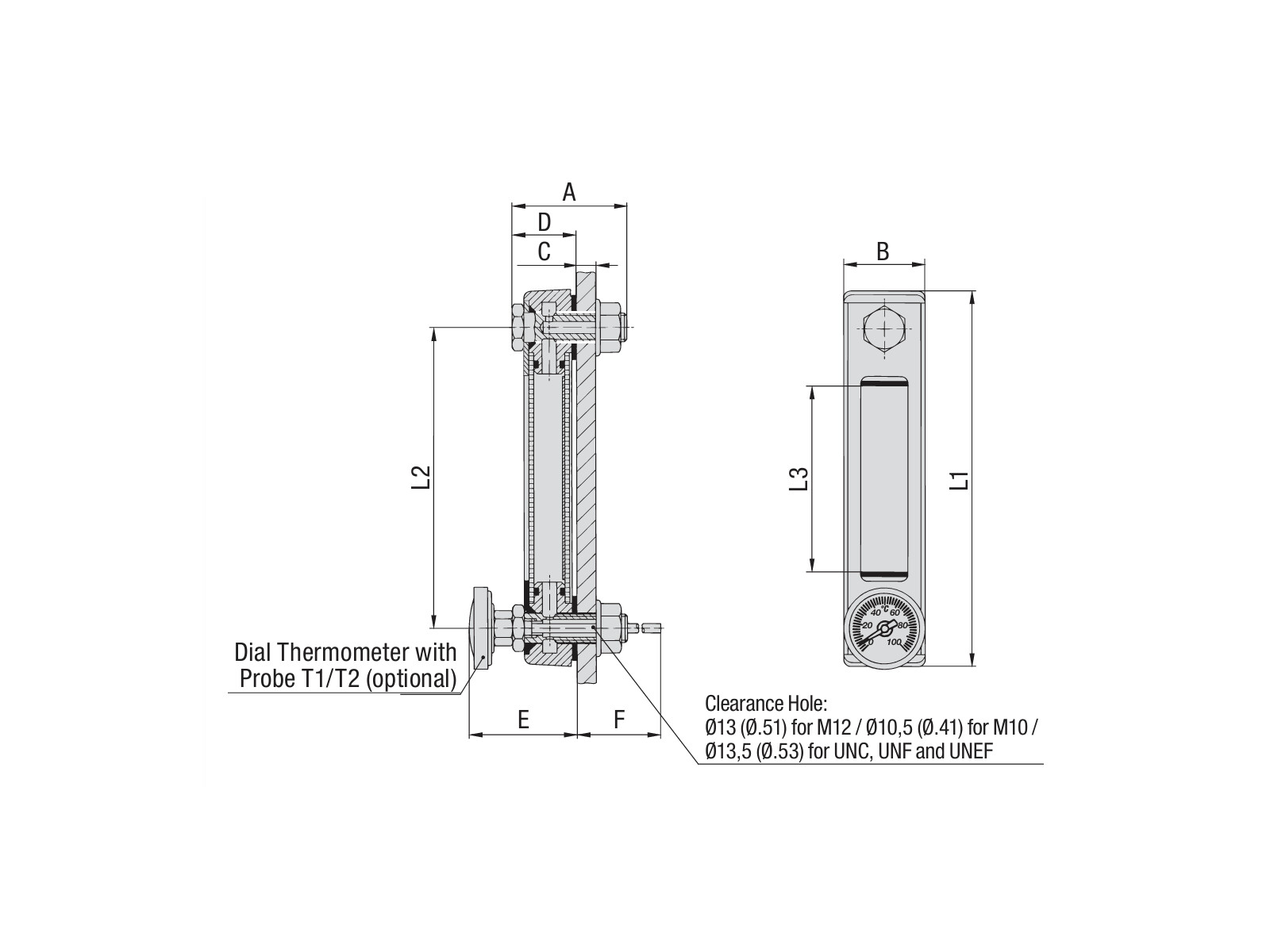

A
45 mm
Användingområde
Mineral and petroleum-based hydraulic fluids
B
34,5 mm
Bultgänga metrisk
M12
C
8 mm
D
28 mm
E
43,5 mm
Gänga metrisk
M12
L1
286 mm
L2
254 mm
L3
192 mm
Modell kod
SNA-254-B-N-T-12
Monteringshålavstånd
254 mm
Märke namn
Stauff
Packningsmaterial
FKM/FPM (Viton®)
Skyddsklass
IP 65
Temperatur max.
+80 °C
Temperatur min.
-30 °C
Tillverkningsmaterial
PVC, Polyamide, Steel, black powder-coated
Tryck max.
2 bar
Åtdragning moment
8 Nm
Package size
1 pcs
Barcode
212825
Gross weight
0,34 Kg
Net weight
0,34 Kg
Country of origin
DEU
Intrastat code
84212980
Level gauge for hydraulic reservoirs, combining a sight tube for visual fluid level indication with an integrated thermometer display. Intended for use where a quick external check of both oil level and operating temperature is required.
Designed for mineral and petroleum-based hydraulic fluids and specified for tank pressures up to 2 bar. The unit uses an M12 bolt connection and FKM/FPM sealing material. Protection class IP 65 supports use in environments where dust-tightness and protection against water jets are required.
Typical Applications
- Oil level monitoring on hydraulic power units and reservoirs
- Combined level and temperature indication in systems using mineral or petroleum-based hydraulic fluids
